Dunkirk PVSB-4D - Page 18

18
ELECTRICAL WIRING
If any of the original wire as supplied with this appliance must be replaced, it must be replaced with type 105°C
Thermoplastic wire or its equivalent.

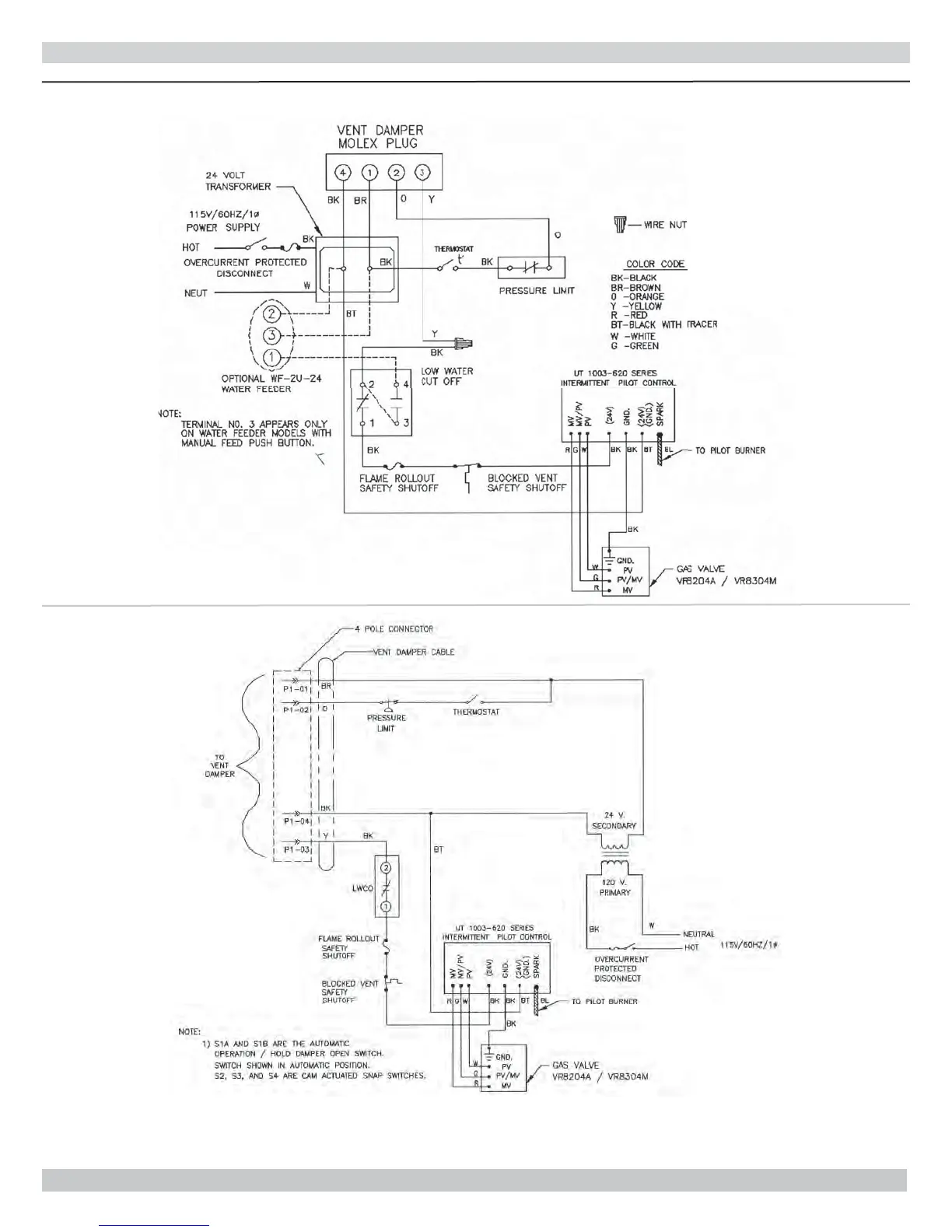

Figure 13 - Wiring Diagrams For Boilers With 67D-1 Float Type Low Water Cut-Off
INTERMITTENT IGNITION
