Dunster House Monkey bars - Assembly: Monkey Bars Ladder - Vertical

Assembly Instructions
STEP - MONKEY BARS LADDER - VERTICAL2
Page 11

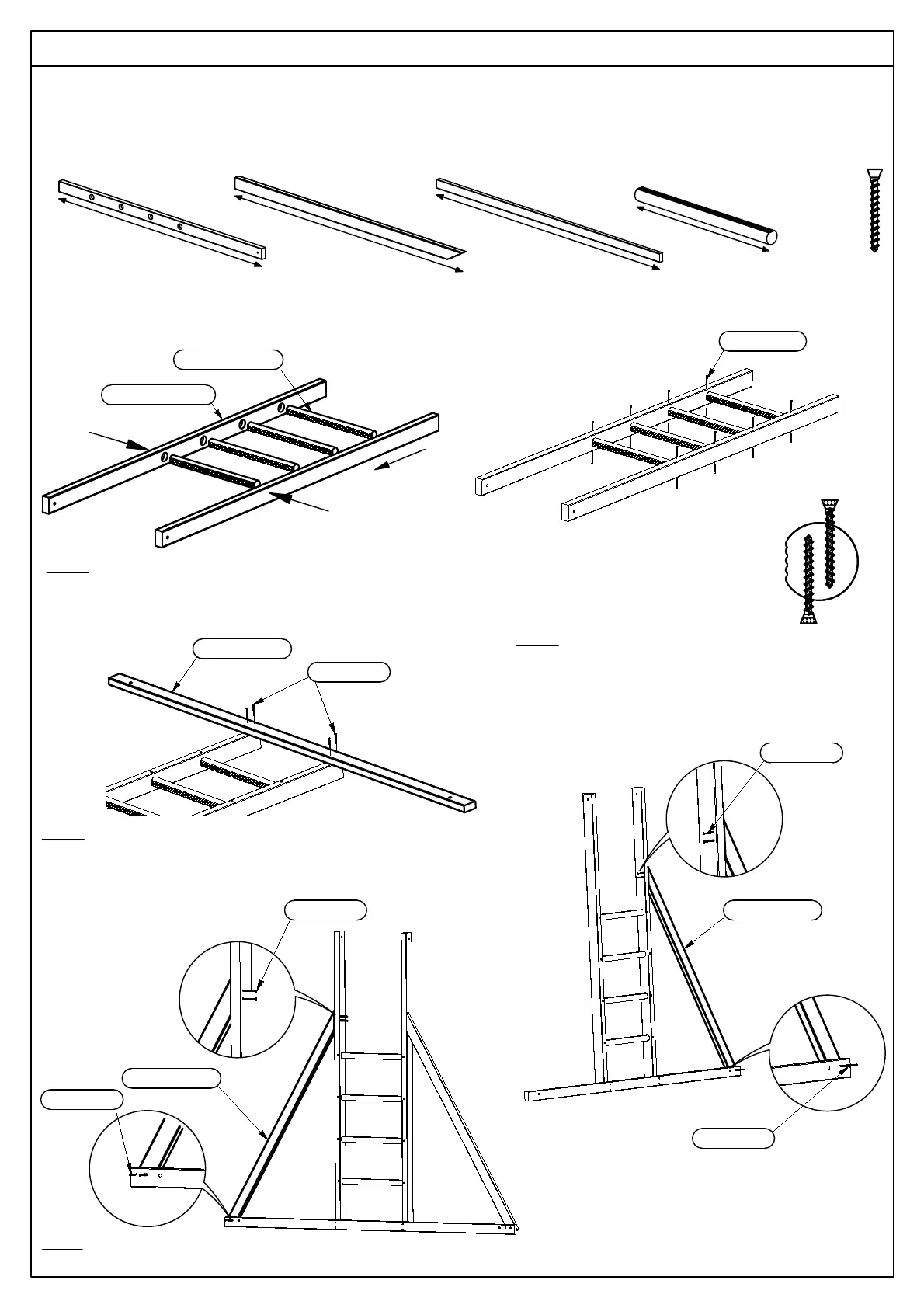

Required Components
C40652 - 86x43x2170 (4x)
2
1
7
0
C4038A - 44x44x550 (8x)
5
5
0
SCREWS
8x 70mm
48x 50mm
of
2
Monkey Bars Ladder - Vertical
C40652 - 86x43x2170 (2x)
C4038A - 44x44x550 (4x)
C40615A - 70x35x2385
C40724A - 70x35x1800
1
2
3
4
5
Direction of
grooves
on rungs
Push Together
Note:
Pre-drill all screw holes with a 3mm drill bit.
Note:
• Please ensure that rungs are placed with grooves in
the correct direction.
Note:
• When pre-drilling, do not drill through the rungs.
• Secure with screws as shown.
Note:
• Lay components in position on the ground before fixing.
C40724A - 70x35x1800 (4x)
1
8
0
0
C40724A - 70x35x1800
C40615A - 70x35x2385 (2x)
2
3
8
5
50mm Screws (16x)
Section view showing orientation of rung
in monkey bar ladder.
70mm Screws (2x)
50mm Screws (2x)
70mm Screws (2x)
50mm Screws (2x)
50mm Screws (4x)
