16
System Setup

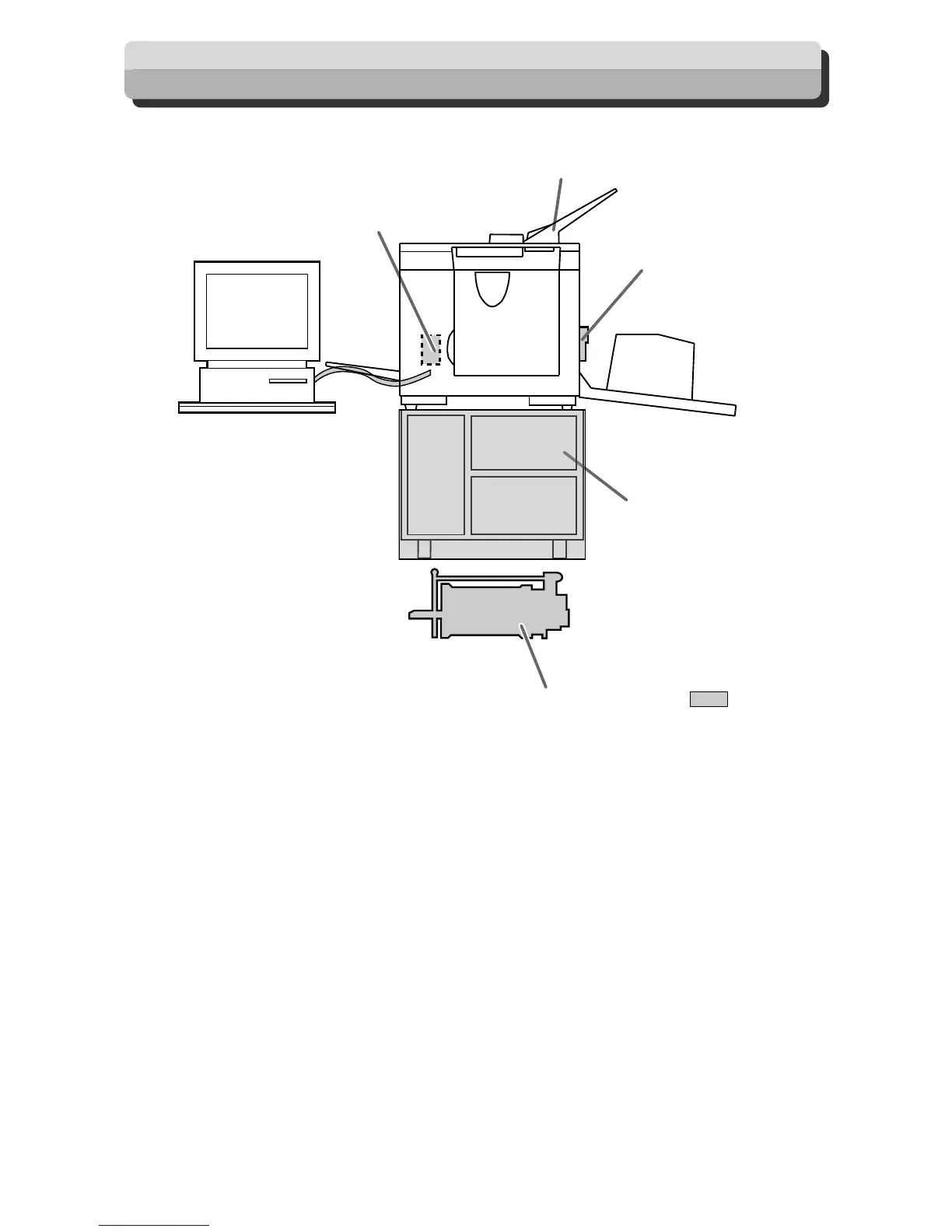

The machine and its optional equipment are set up as follows:
Personal computer
Duplo Direct Print System
Documents prepared on a
personal computer can be
printed on this machine.
PC interface kit is required
to connect this machine to
a personal computer.
ADF
Cabinet
Tape cluster
Drum unit
: Option
17
19
Table of Contents
Default Chapter
3
Introduction
3
Printing and Duplicating Cautions
3
Notes on Safety (Please Read and Observe)
4
Safety Precautions
4
Warning Label
7
Positioning the Machine
8
Maintenance
9
Daily Maintenance
10
Table of Contents
11
Conventions Used in this Manual
11
Master Making Key
11
Function Quick Reference
15
Chapter 1 Before Using this Machine
17
System Setup
18
Part Names and Their Functions
19
Printer Appearance
19
Master Roll
20
Front Cover
20
Control Panel
22
Printing Position Indicator Lamp
23
LCD Panel
24
Turning Power ON/OFF
25
Turning on Printer Power
25
Turning off Printer Power
26
Standard Mode
26
UID Control Function
27
Document/Printing Paper Specification
28
Acceptable Documents
28
Acceptable Printing Paper
28
How Mastermaking and Printing Is Performed
29
Mastermaking
29
Printing
29
Chapter 2 Printing Using Basic Functions
31
Basic Printmaking
32
Loading and Replacing Paper
34
Loading Paper
34
Adjusting Paper Feed Pressure
35
Loading Documents
36
Positioning the Document
36
Loading Document
37
Dp-M310
38
St → Lt
38
A4 → B5
38
B4 → A4 / B5 → A5
38
94% Reduction
39
1% Step Enlargement and Reduction
41
European Paper Sizes <DP-M300
38
A5 → A4
38
A5 → B5
38
B5 → A4
38
Paper Sizes <DP-M300
38
B4 A4 B5 A5
43
European Paper Sizes
43
Printing Paper
38
Selecting Printing Paper Size
43
Text/Photograph/Text and Photograph Mode
45
Print Output
47
Installing Print Tray
47
Truing up Printed Pages
49
Chapter 3 Printing with Various Function
51
Saving Settings
52
Retrieving Settings
54
Clearing Settings
55
Printing Two Different Document Pages on One Page
56
Adjusting Master Darkness
58
Batch Printing
59
Batch Printing (Changing Print Quantity Per Document)
63
Dividing Sections with Tape (Available Only with Tape Cluster Unit)
65
Ink Save Mode
66
Chapter 4 Miscellaneous Functions
67
Confidential Safeguard Function
68
Total Counter Display Function
69
Print Speed Adjustment Function
70
Printing Position Adjustment Function
71
On-Line Print Function [Available Only with Interface Kit Installed]
72
Energy Save Mode
72
Chapter 5 Replacing Consumables
73
Replacing the Ink Pack
74
Replacing the Master Roll
77
Replacing the Master Ejection Core
80
Replacing the Drum Unit
82
Removing the Drum Unit
82
Installing the Drum Unit
83
Chapter 6 Troubleshooting
86
Countermeasures to Troubles
86
Power Does Not Turn on
86
Mastermaking/Printing Is Not Possible
86
Error Messages
87
Service Call
89
Supplying or Changing Paper While Printing
90
If Paper Runs out During Printing
90
Adding Paper While Printing
90
Changing Paper Selection While Printing
92
Paper Jams
94
When "PAPER LEFT JAM" Is Displayed (Feed Tray)
94
When "PAPER RIGHT JAM" Is Displayed (Print Tray)
95
Paper Adhering to Drum
96
When "MASTER EJECT MISS" Is Displayed
98
When "MASTER SET MISS" Is Displayed
101
Chapter 7 Specifications and Maintenance
105
Specifications
106
Appendix
109
Index
110
Quick Operation Guide
112
