Duplo DP - M300 - Replacing the Master Roll

73
5
2
1

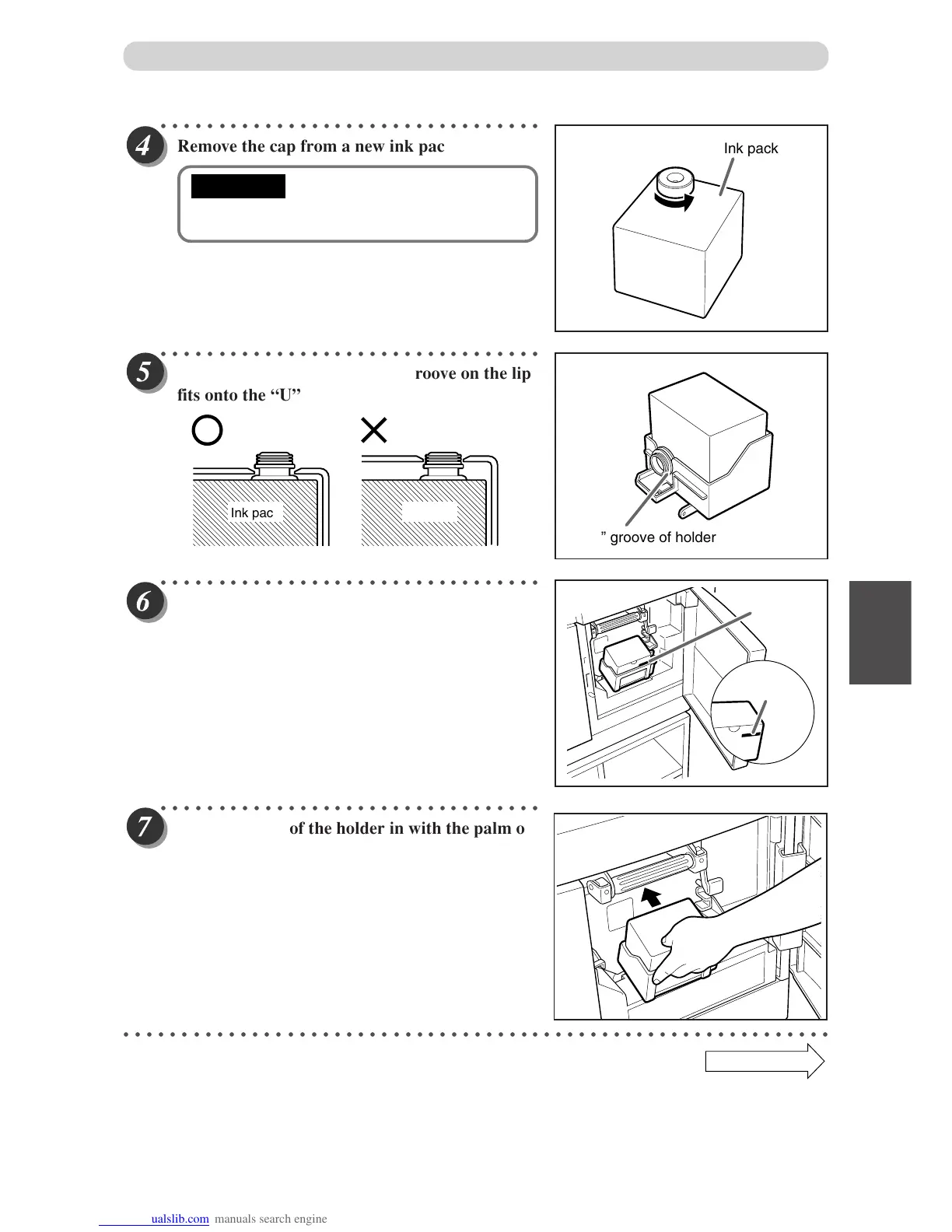

Replacing Consumables
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Remov
e the cap from a new ink pack.
• Do not leave an ink pack uncapped for longer
than necessary.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Insert the ink pack so that the groo
ve on the lip
fits onto the “U” groove of the holder.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Push the ink pack in to the set line on the ink
pack.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Press the back of the holder in with the palm of
your hand.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Continue Page
•••
Replacing the Ink Pack
“U” groove of holder
Ink pack
Ink pack Ink pack
Set line
Set line
IMPORTANT
