PACKING LIST:
Please check and make sure all parts are in good condition before installation. Any questions, please do NOT return to
dealer, but email us (info@payandpack.com)
immediately, we will do our best to assist you. Thank you.
1. Remote transmitter (1), Remote receiver box w/ 18” wire (1)
2. Wall mount cover plate (1), Switch box screw (2), Slide switch button (1)
3. 1.5V Batteries: AA-size (4), AAA-size (2)
4. Installation Instructions (1)

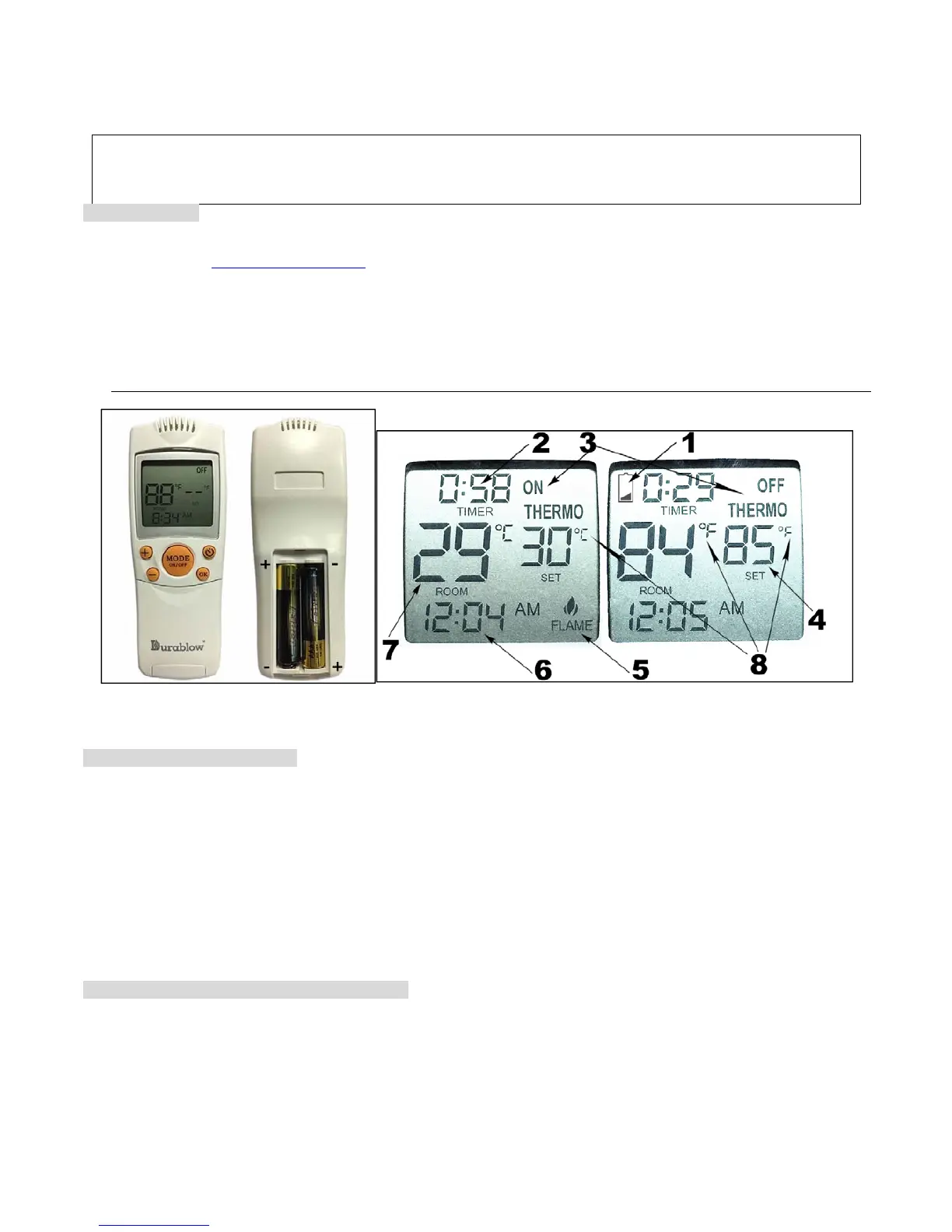

Fig. 1 Transmitter Fig. 2 LCD display on transmitter
LCD DISPLAY ICONS (Fig. 2)
1.LOW BATTERY - Once it appears which means battery power is low.Replace batteries in 2 weeks.
2.TIMER
*1
– Indicates time remaining before systemshuts OFF.Maximum 9-hour setting for timer programming.
3.MODE – Indicates system operation modes.ON means the systemis manually ON.OFFmeans the entiresystemis
OFF.THERMO
*2
means the systemwill automatically cycle ON/OFF,with the desired set temperature.
4.SET– Indicates desiredsetroom temperature ofTHERMO
*2
mode. (works with ROOM)
5.FLAME– Indicates burner/valve is at ON position.
6.CLOCK – Indicates the current time.
7.ROOM– Indicates CURRENTroom temperature.
8.°F / °C– Indicates degrees in Fahrenheit or Celsius (convertible).
BASICTRANSMITTERFUNCTIONS& MODES
NOTE: For model TR1002-T, the THERMO mode is NOT included; For TR1002-TH, the TIMER mode isNOT included.
IMPORTANT:The transmitter requires twoAAA-size 1.5V batteries (included).New (fully charged) batteries arerequired for
proper functionality ofthe system.Insertbatteries into the transmitterbattery compartment on the back,positioning the (+) and
(-) ends ofthe batteries as indicated on the casing. (Fig. 1)When the batteries are inserted properly, LCD will display initial
numbers.
