13
HOIST OPERATION
Whenever traveling on the highway, the hoist control in cab must
be in the neutral position with the hoist lever lockout engaged in the
"lock" position and the PTO disengaged

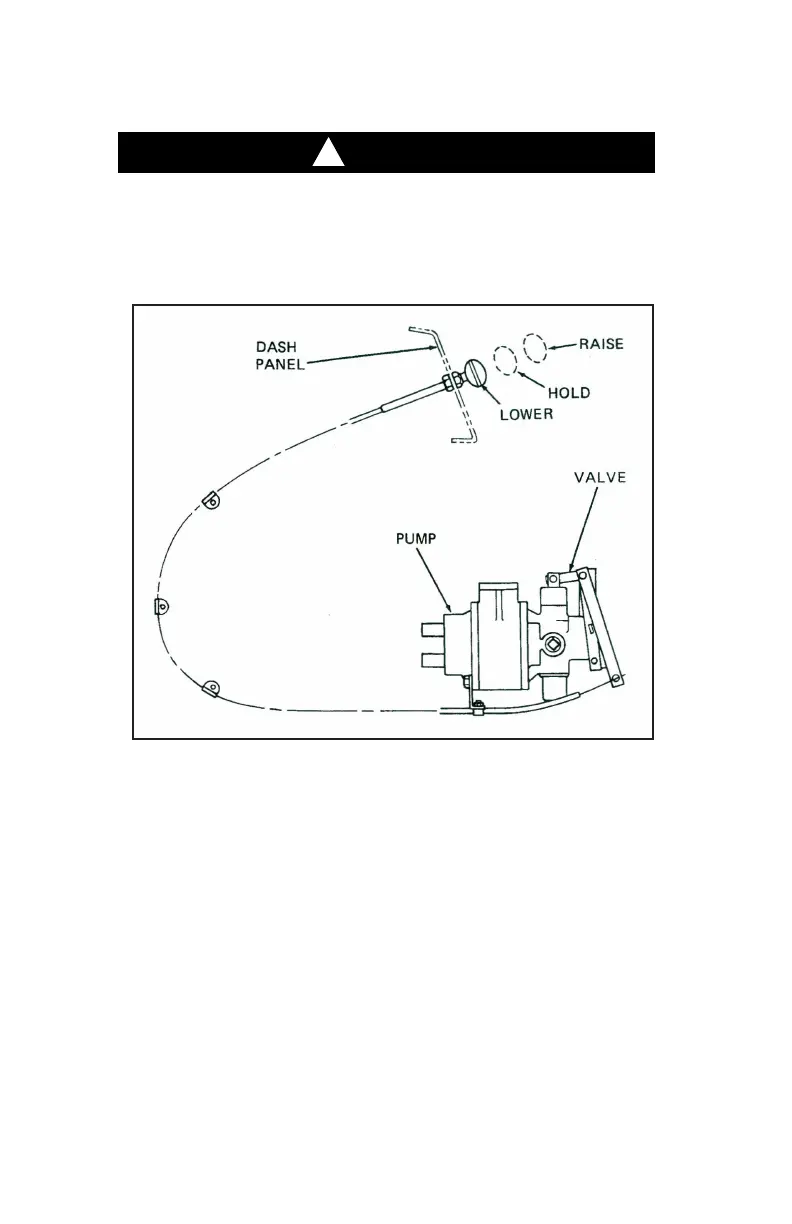

Figure 8. Optional Cable Control
To Raise Body — With PTO engaged and truck engine running at a
speed slightly faster than idle, release lever lock and move valve control
in cab to RAISE position (rearward).
To Hold Body — To hold in any position, move valve control in cab to
HOLD position. If body will be held in position any length of time, shift
PTO out of gear, and reengage lever lock.
To Lower Body — If lever lock is engaged, release and move valve con-
trol in cab to LOWER rosition (forward). When body is rmly resting
on chassis frame, disengage PTO and reengage hoist control lever lock.
