B.
A.
2.3x6mm
C.

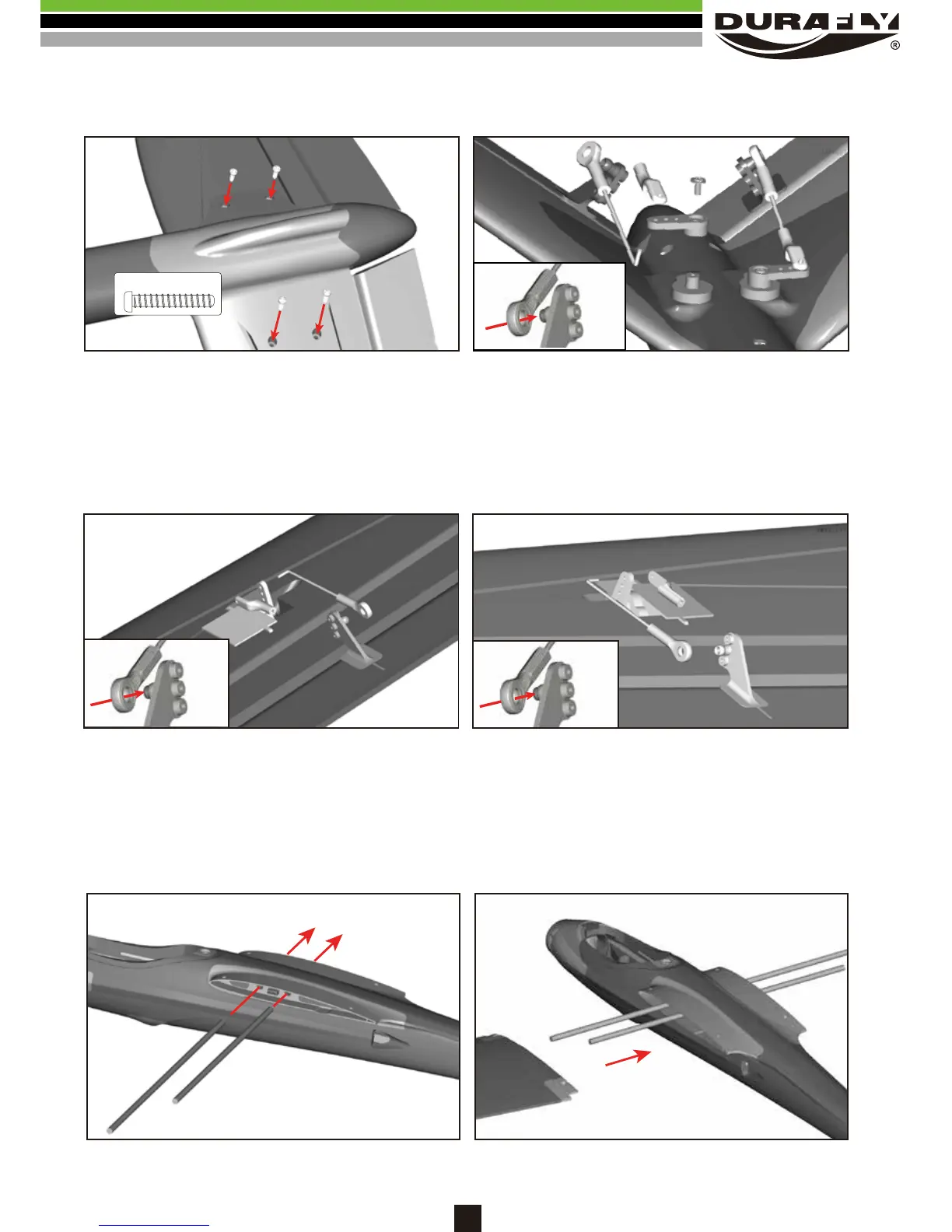

Center the aileron servo’s and connect the ball link to the ball end on each control horn using the
push clip to secure the rod to the servo horn as show (A,B). Screw or unscrew the ball link as
required to get the aileron level with the wing trailing edge with the servo center.
A.
4
B.
3.
Push the supplied carbon wing joining spars into the slots of the fuselage (A), longer at the front,
shorter at the rear, ensuring neither catch on any wires when passing through the fuselage. Once
inserted, ensure both are centered as show (B).
4.
D.
