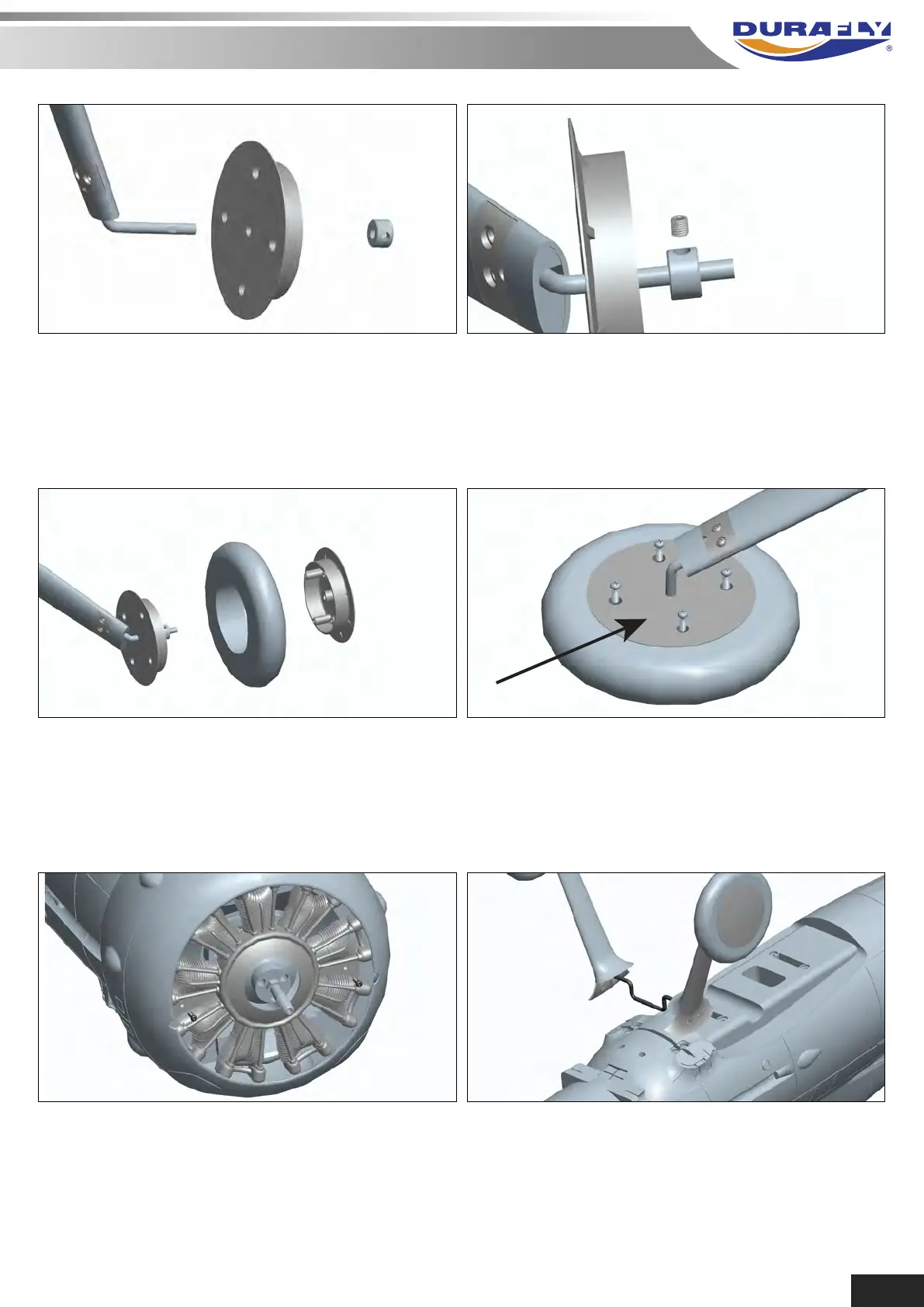

2. Remove one of the wheel collars from an
axle. Remove the inner wheel hub from one of
the wheels and slide it onto one of the axles
as shown. Then slide the wheel collar back on
to the axle.
3. Tighten the grub screw using the hex-key
supplied, ensure the grub screw tightens
onto the flat of the axle. A drop of thread
locker can be used if you wish for extra security.
4. Remove the outer hub from the wheel, then
slide the wheel back over the inner hub. Re-fit
the outer hub and carefully line up the screw
fixing holes.
5. Using the supplied 2.3mm x 10mm self-
tapping screws, secure the inner and outer
hubs together. Do not over-tighten or you will
strip the plastic out of the screw spigots.
6. Out of the box, the cowling and dummy
engine are just pushed on, they are not
secured in place. For the next steps you will
need to remove these from the fuselage.
7. Slot the landing gear into the groove in the
bottom of the fuselage, ensure the landing gear
fairings are facing the correct direction. Look at
the aerofoil shape.
4
