Tundra V2
Options:
Your Tundra V2 comes with several features available to you during the assembly. Floats , FPV
canopy and tow mounting point are all included in the box. Use of a Candy dropper is an
optional extra and is not included. All however are covered in these following pages.
Floats

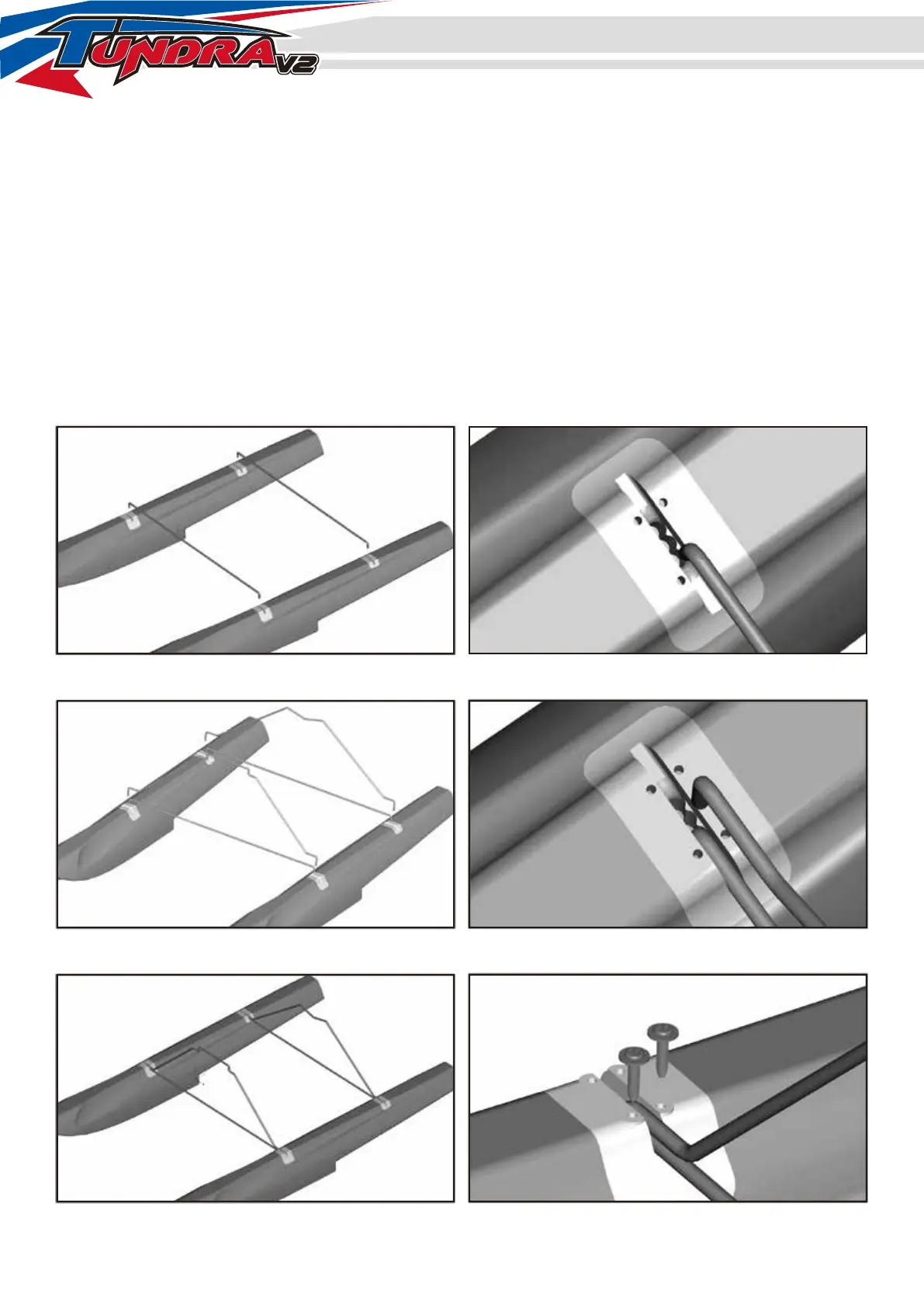

1. With each float placed on a level surface and parallel to one other, add the front and rear cross
bracing struts by inserting each end into the inner most hole of the float mounting plate (A). Now
insert the ends of the front and rear fuselage mounting struts into the center holes (B). With all
float struts installed as shown, secure in place using the M2x8mm screws (C).
11
A.
B.
C.
A.
B.
C.
