G. H.
A. B.

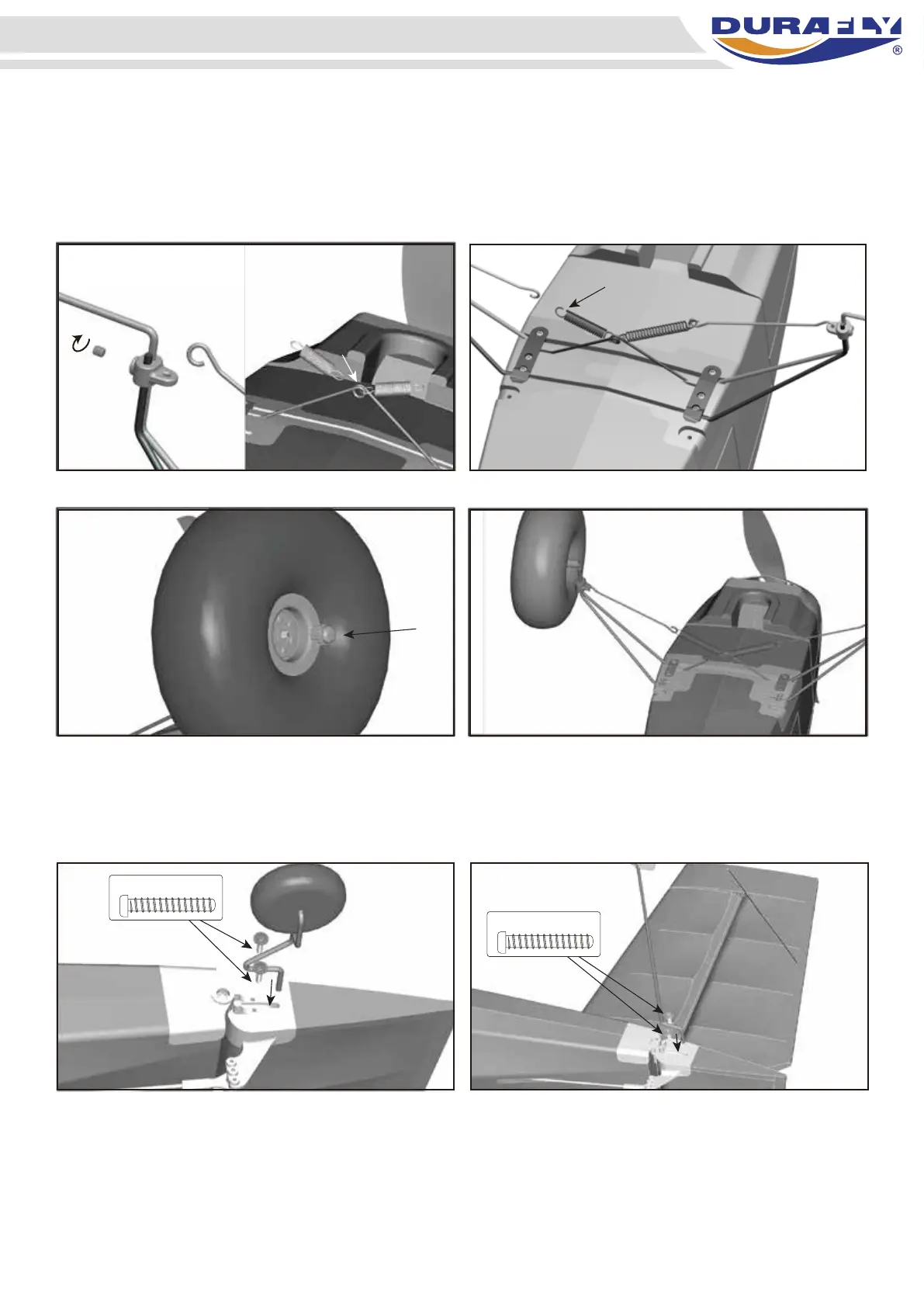

2B. Hook the supplied coil springs through the center ring of the spring support wire and the wire
cross braces through the ring of the metal brace keepers (E) to complete the sprung cross
bracing assembly (F). Now slide the main wheels onto the axle and secure in place with the
plastic grip nut (G). Assembly of the undercarriage is now complete (H).
3. Insert the tail wheel assembly into the plastic slot on the bottom of the rudder and secure with
two M3x6mm screws (A). The same method is used when mounting the water rudder (B).
4. Insert one half of the carbon tail spar into one of the horizontal tail pieces before sliding this half
into the tail slot on the fuselage. Now install the remaining tail piece (A). Secure both halves in
place with the supplied M2.3x6mm screws and the elevator join with the single M2x8mm screw
(B). This installation is self aligning, but do double check to ensure equal aligment to the vertical
tail and wing.
E. F.
M3x6mm
M3x6mm
4
