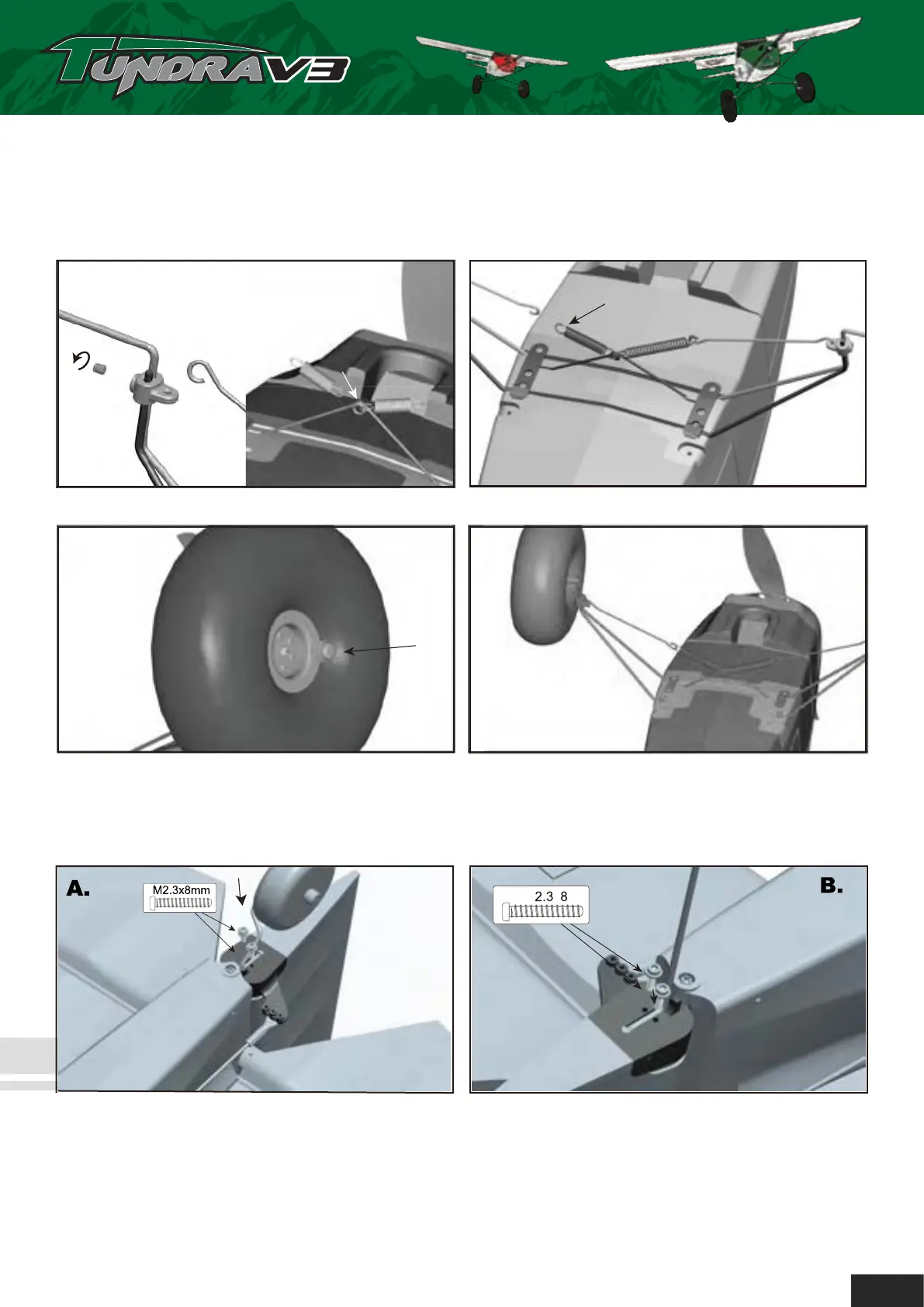

2B.Hook the supplied coil springs through the center ring of the spring support wire and the wire cross
braces through the ring of the plastic brace keepers (E) to complete the sprung cross bracing
assembly (F). Now slide the main wheels onto the axle and secure in place with the plastic grip nut
(G). Assembly of the undercarriage is now complete (H).
3.Insert the tail wheel assembly into the plastic slot on the bottom of the rudder and secure with
two hex M2.3x8mm self-tapping screws (A). The same method is used when mounting the
water rudder (B).
4.Insert one half of the carbon tail spar into one of the horizontal tail pieces before sliding this half
into the tail slot on the fuselage. Now install the remaining tail piece (A). Secure both halves in
place with the supplied M2.3x8mm hex self-tapping screws and join the elevator with the single
M2.3x8mm hex self-tapping screw (B). This installation is self aligning, but do double check to
ensure equal aligment to the vertical stabilizer and wing.
4
G. H.
E. F.
M x m
m
