DuraLabel 9000 - Loading the DuraLabel Printer

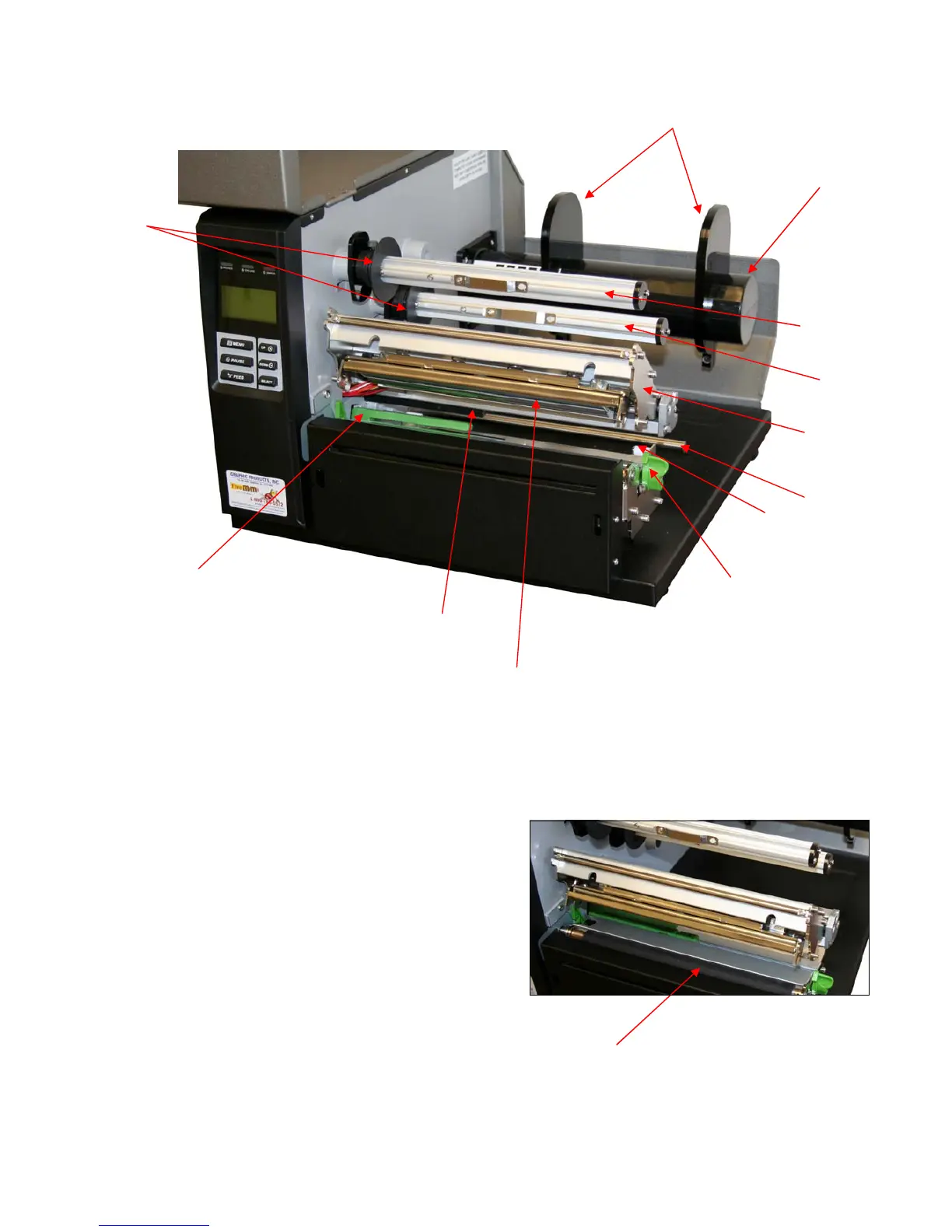

2.2.2 Interior View
12
5
8
11
1
10
9
7
6
2
5
3
4
1. Ribbon Guides
2. Media Sensor (green)
3. Ribbon Sensor (black)
4. Print Head
5. Print Head Release Lever (green)
13
6. Adjustable Media Guides (white)
7. Media Guide Bar
8. Print Head Mechanism
9. Ribbon Spindle (back spindle)
10. Ribbon rewind spindle (front spindle)
11. Supply Bar
12. Supply Guides
13. Platen Roller (black)
