Duratrax Brushless Evader - Page 15

15
4
S
75 (Front)
76 (Rear)

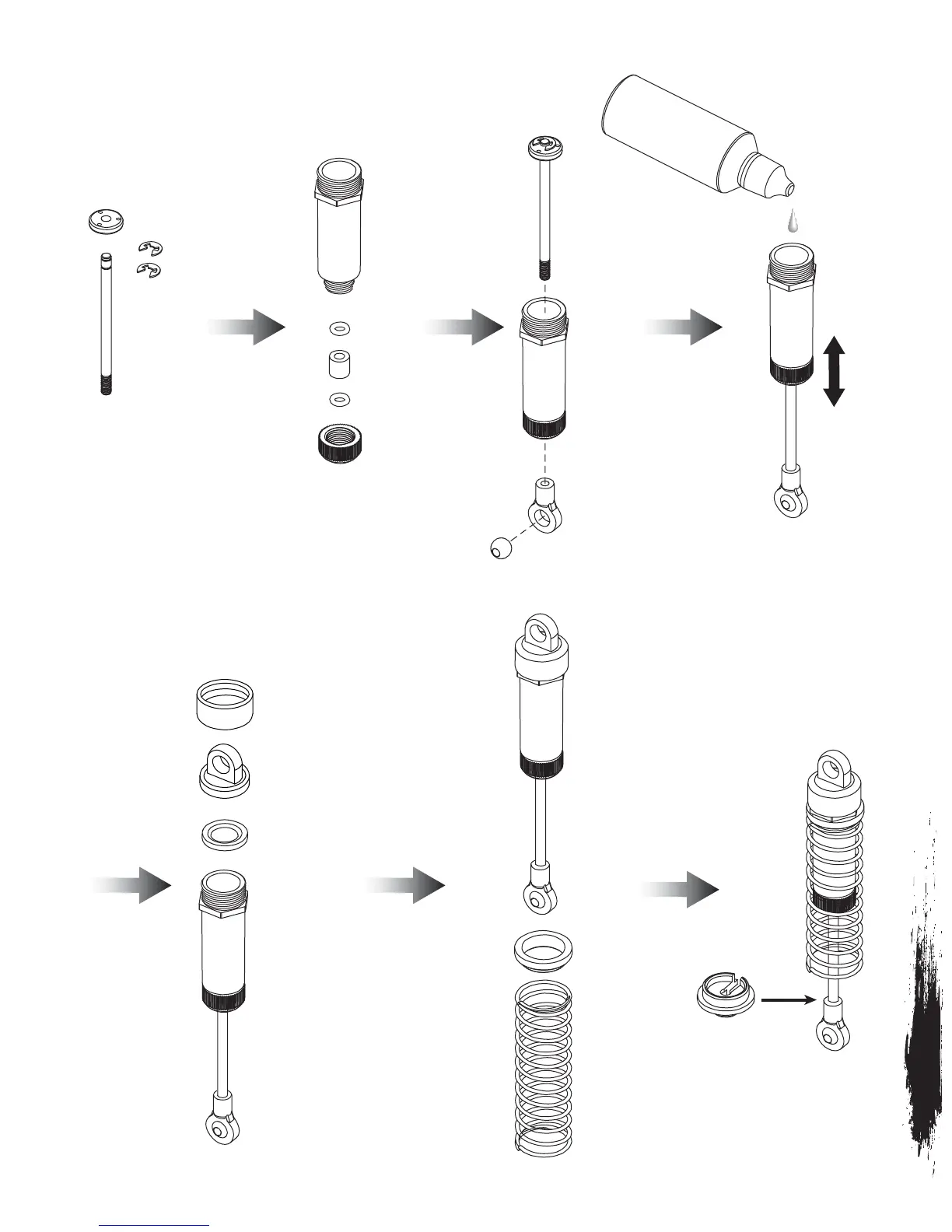

Fill with oil and
slowly move the
piston up and down
to remove bubbles.
106
31
122
32
70 (Front)
71 (Rear)
34
77
78
114
114
33
35
68 (Front)
69 (Rear)
Loosely install the cap.
Slowly compress the piston
to bleed out excess oil.
Tighten the cap a little at a time while
moving the piston up and down to
bleed more oil until the cap is tight.
MAINTENANCE
