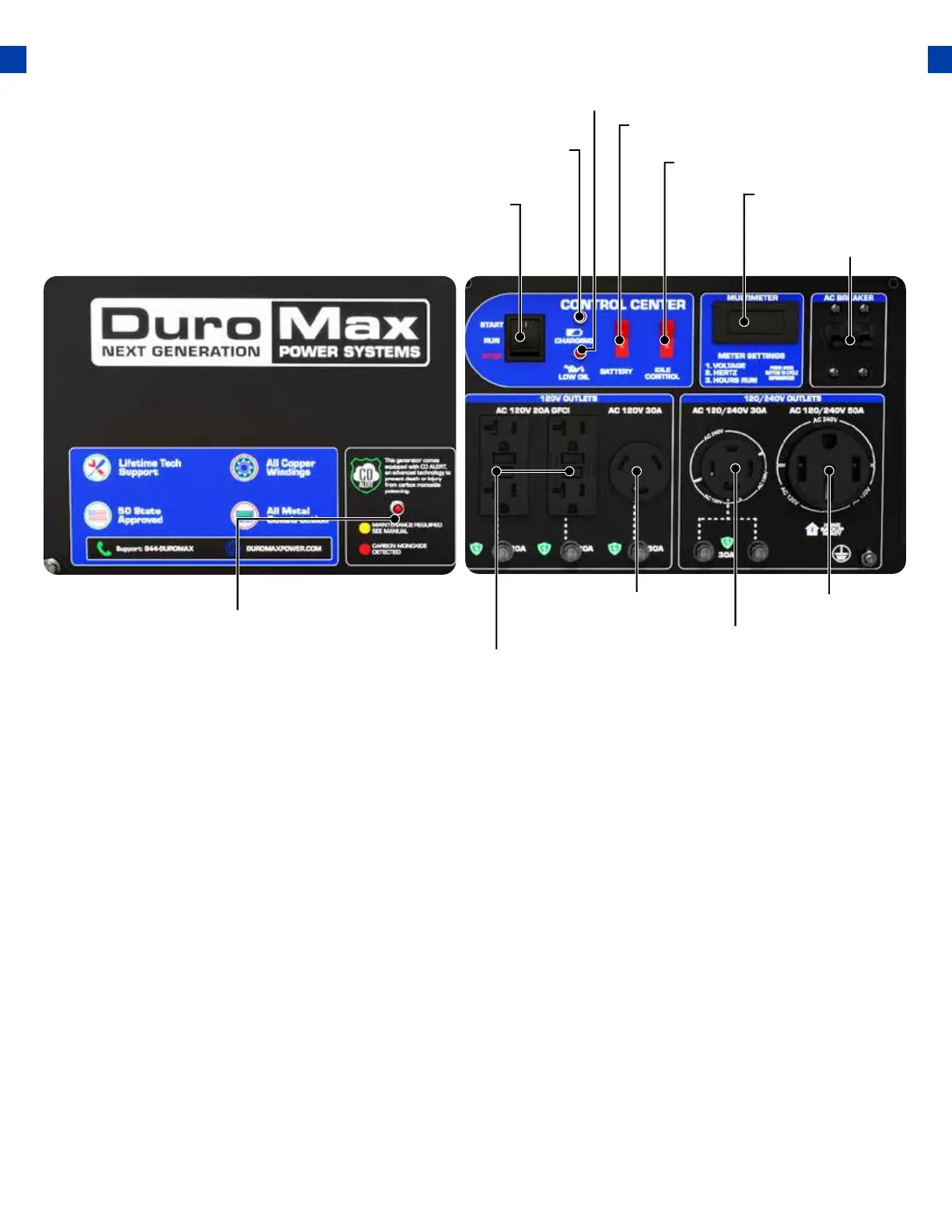

12. Battery Switch
9. Engine Switch
17
10. Charging Light
11. Low Oil Alert
13. Idle Control
14. Circuit Breaker
15. Multimeter
17. 50A Receptacle
18. 240V 4-Prong Twist Lock
19. GFCI 20A Receptacles
16. CO Alert
20. 120V 3-Prong Twist Lock
13. Idle Control - Slows the engine to save fuel and lower noise when no load.
14. Circuit Breaker - Protects the panel from overload and short circuits.
15. Multimeter – Displays voltage, hertz, and time running.
16. CO Alert - Shuts down the engine in the event of CO buildup.
17. 120/240V 4-Prong Receptacle - Use to connect electrical devices that run 120 or 240 volt,
60Hz, single-phase, AC current (NEMA 14-50).
18. 120/240V 4-Prong Twist Lock - Use to connect electrical devices that run 120 or 240 volt, 60Hz,
single-phase, AC current (NEMA L14-30).
19. 120v 3-Prong GFCI Receptacle - Use to connect electrical devices that run 120 volt, 60Hz,
single-phase, AC current (NEMA 5-20).
20. 120v 3-Prong Twist Lock - Use to connect electrical devices that run 120 volt, 60 Hz, single-
phase, AC current (L5-30).
