WARNING!
Hovering Load
The robot arm can sink uncontrolled. Serious
injuries or death can be the consequence.
Do not walk underneath robot arm.
Before working on the robot:
– Pause robot.
– Shut down the power supply. Secure against
reconnection.
– Check holding brake on arm 1.
– If necessary, secure robot arm.
Personnel:
Mechanic
+ additional qualification explosion protection
Protective equipment:
Eye protection
Protective workwear
Protective gloves
Anti-Static Safety Boots
Anti-Static Safety Boots
Requirements:
Material supply system is switched off and
secured against reconnection.
Material-carrying lines are depressurized.
Mains disconnecting device on the technology
cabinet is switched off and secured against
reconnection.
Support bracket is assembled.

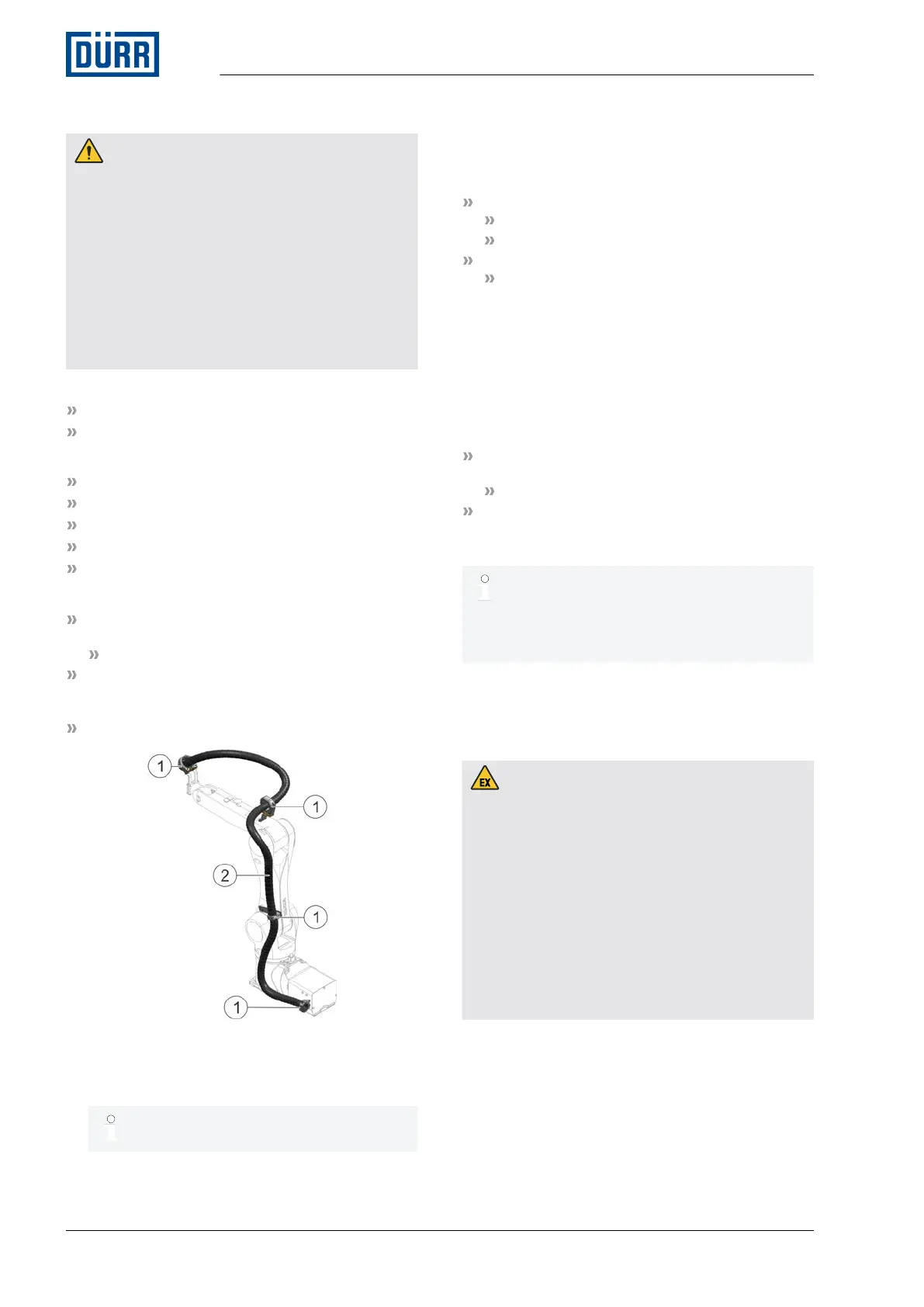

Fig. 9: Assembling Convoluted Hose
1.
Fasten convoluted hose (2) on the robot by
means of the hose clips (1).
Follow operating instructions of the cat
track Ä
“Applicable documents”.
4.7 Lay cables.
The convoluted hose with the interfaces ends at
the foot of the robot:
To the fluidboard:
Material hose
(Coating material and detergent)
To the technology cabinet:
Compressed air hoses
(Control air and/or horn air)
Routing of the hoses depends on the provided
facilities. Route hoses from the robot to the assem-
blies in a professional manner
. Follow diagram and
labels.
4.8 Connecting
Requirements:
Material supply is switched off and secured
against reconnection.
Material-carrying lines are depressurized.
Mains disconnecting device on the technology
cabinet is switched of
f and secured against
reconnection.
Connecting the atomizer links to the atom-
izer, fluid plate and technology cabinet is
described in separate operating instructions
of the components Ä “Applicable docu-
ments”
.
5 Cleaning and maintenance
5.1 Safety recommendations
DANGER!
Risk of death due to explosions
The product is installed in potentially explosive
atmospheres. Disregarding the safety regulations
of there areas may cause death due to explo-
sion.
– Switch off the mains disconnecting device on
the technology cabinet. Secure against recon-
nection.
– Before entering, ensure that the atmosphere
is not explosive.
– Observe all general safety instructions for
handling the total system.
Cleaning and maintenance
03/2019Atomizer Connection EcoGun - MRS00004EN12/
24
