WARNING!
Hovering Load
The robot arm can sink uncontrolled. Serious
injuries or death can be the consequence.
Do not walk underneath robot arm.
Before working on the robot:
– Pause robot.
– Shut down the power supply. Secure against
reconnection.
– Check holding brake on arm 1.
– If necessary, secure robot arm.
Personnel:
Mechanic
+ additional qualification high tension tech-
nology
+ additional qualification explosion protection
Protective equipment:
Eye protection
Protective workwear
Protective gloves
Anti-Static Safety Boots
Requirements:
Material-carrying lines are purged.
Material supply system is switched off and
secured against reconnection.
Material-carrying lines are depressurized.
Mains disconnecting device on the technology
cabinet is switched off and secured against
reconnection.
Connections are separated Ä
7.2 “Disassem-
bling connections”.

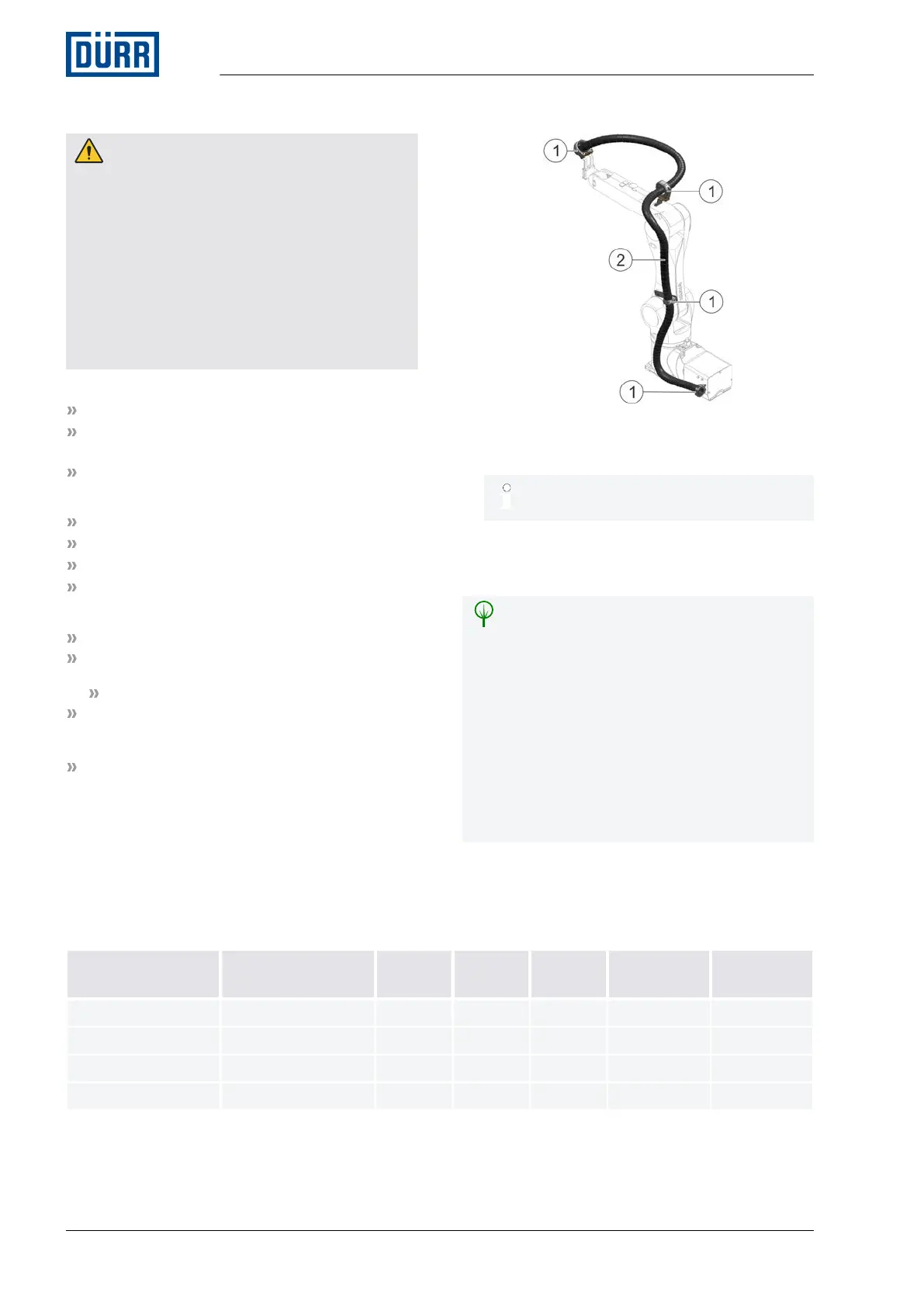

Fig. 13: Disassembling Convoluted Hose
1.
Loosen clamps (1) on the robot.
Follow operating instructions of the cat
track Ä
“Applicable documents”.
2.
Remove convoluted hose (2) from the robot.
7.4 Disposal
ENVIRONMENT!
Incorrect disposal
Improper waste disposal threatens the environ-
ment and prevents re-use and recycling.
– Always dispose of components in accordance
with their characteristic.
– Collect leaked out operating and auxiliary
materials completely.
– Dispose of operating and auxiliary materials
according to the disposal provisions in force.
– In case of doubt, refer to the local disposal
authorities.
8 Technical data
8.1 Dimensions
N91530017 - Atomizer link EcoGun AS AUTO pro
Denomination Material number
∅
internal
∅
external
Length Material Minimum
bend radius
Paint hose W40030534 4 6 5 m PFA 64 mm
Control air hose W40030001 4 6 10 m PA 30 mm
Horn air hose W40030002 6 8 10 m PA 40 mm
Atomizer air hose W40030002 6 8 10 m PA 40 mm
Technical data
03/2019Atomizer Connection EcoGun - MRS00004EN18/
24
