DUSK Middleton - Assembly Process; Initial Frame Assembly

Step 1:
Step 2:
B
G
8pcs
1pc
Page 6
1
2
G
C
4pcs
1pc
6
C
G
Ensure that the Angle
Irons are attached to
the Headboard and
the Footboard with the
ledge facing upwards.
Headboard

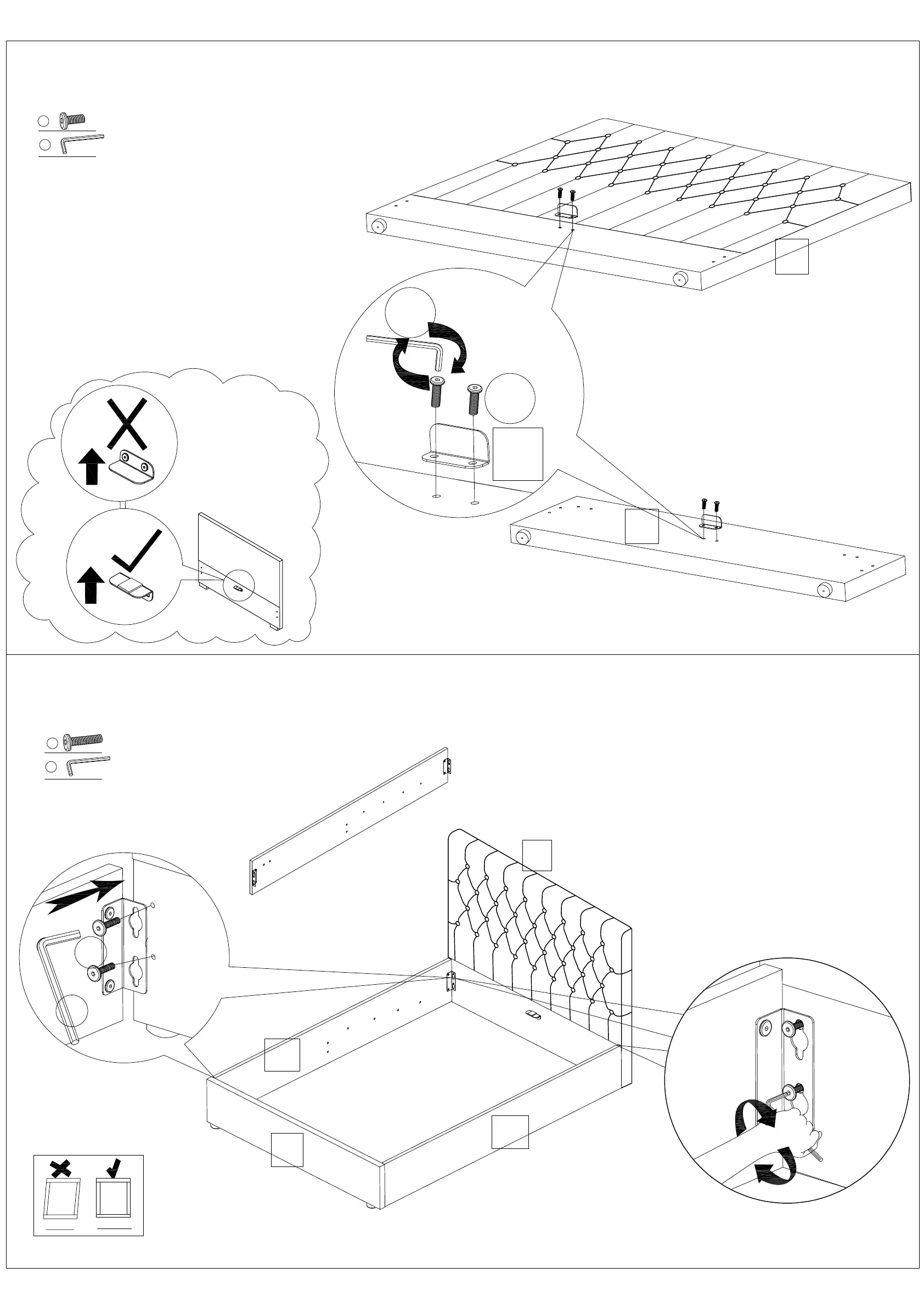

Attaching the Angle Irons to the Headboard & Footboard
Attaching the Headboard & Footboard to the Side Rails
Headboard
Footboard
WRONG
CORRECT
B
1
2
3R
3L
G
NB: Before tightening the bolts, please ensure the bed frame is square
NB:Attach the bottom Bolt first
Headboard end
Footboard end
NB: Side Rail Angle Irons are pre- attached
