79 3/4"
45"
15 1/8"
49 7/16"
73 3/16"
1 7/8"
CSC300
CONTROLLER WITH
Y-DELTA START
EMERGENCY
STOP
LIFTING POINTS
PRESSURE
GAUGE &
SAFETY
VALVE
REMOVABLE
SERVICE
DOOR
9/16" X 1"
SLOT
AIR OUTLET
3/4" NPT
BALL VALVE
MOUNTED
AIR DRYER WITH
2M (6FT) CORD,
SEPARATE 115V
POWER SUPPLY
REQUIRED
8 11/16"
7 11/16"
10 5/16"
16 5/16"
17 7/8"
REMOVABLE
TOP PANEL
POWER IN
1" CONDUIT
OPENING
DUCTIBLE EXHAUST AIR
OUTLET WITH 1/4"
MOUNTING INSERTS
26 1/2"
23 3/4"
VSD AIR
OUTLET
REMOVABLE
SIDE PANEL
11 5/8"
7 7/8"
15 1/4"
14 1/4"
AIR INTAKE OPENING WITH
1/4" MOUNINTING INSERTS
REMOVABLE
REAR PANEL
COALESCING
FILTER WITH
6MM DRAIN
TUBE
1/4" MANUAL DRAIN
REMOVABLE
SIDE PANEL
INSTALLATION REQUIREMENTS
1. MAINTAIN 3 FEET DISTANCE FROM WALLS
AND OTHER OBJECTS FOR PURPOSE
OF COOLING AND SERVICING
2. COMPRESSOR MUST BE LEVEL AND
ANCHORED DOWN TO SOLID LEVEL FLOOR.
3. AMBIENT CONDITIONS:
10ºC (50ºF) MIN. 40ºC (104ºF) MAX.
4. APPROACH TEMP. FROM TANK 5ºC (41ºF).
MODEL
NO.
HP
PRESSURE
PSI
SCFM @ MAX.
PRESSURE
NOMINAL
SOUND @
1 METRE
MOTOR NAMEPLATE AMP
AIR
RECEIVER
GAL.
DRYER
FILTER
ELEMENT
WEIGHT
LBS
3-PHASE
200V 230V 460V 575V
G20TD
20
100-120
82
67 dBA
53 46 23
18.4
120
ASD-100
115V, 60Hz,
11.6A
1
MICRON
1683
125-145
73
G25TD
25
100-120
100
68 dBA
65 56 28
22.7
120
ASD-100
115V, 60Hz,
11.6A
1
MICRON
1683
125-145
91
G30TD
30
100-120
116
69 dBA
78 68 34 27 120
ASD-100
115V, 60Hz,
11.6A
1
MICRON
1683
125-145
106
IMPORTANT NOTE: This print is the confidential property of DV SYTEMS, INC. It is not to be used
or reproduced in any manner, nor submitted to other parties for examination without the prior
approval of DV SYSTEMS, INC. DV SYSTEMS, INC. is continually trying to improve its products,
specifications subject to change without notice.
DESCRIPTION OF DRAWING
DRAWING NO.
SHT NO
REV.
NAME OF PROJECT
DRAWN BY
CHECKED BY
DATE
SCALE

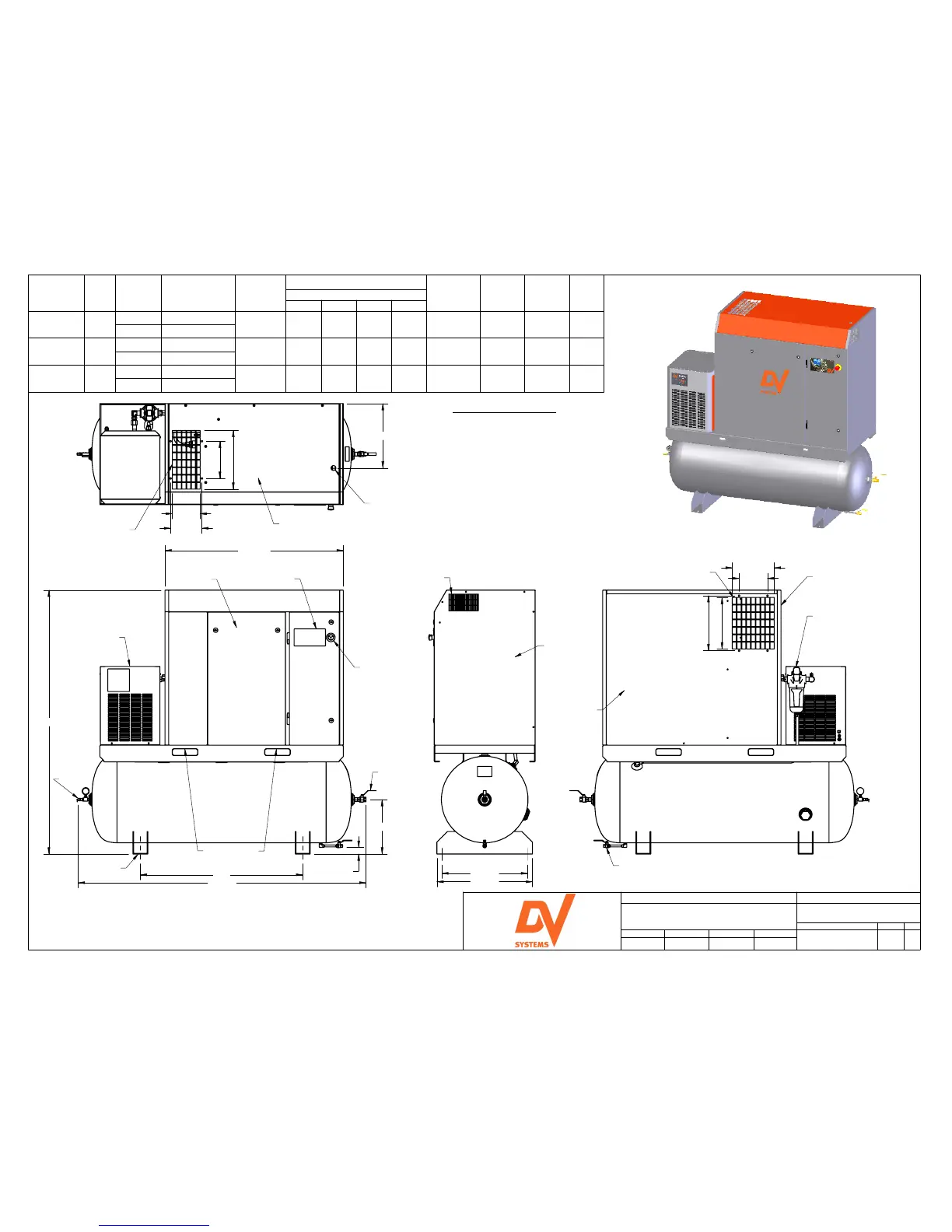

G20-30TD SCREW COMPRESSOR
WITH DRYER
LT
1/05/17
N.T.S
SALES-ENGINEERING DRAWING
G20TD G25TD G30TD
