DV Systems G20 User Manual

G2030-II-C
Mar ‘17
- 3 -

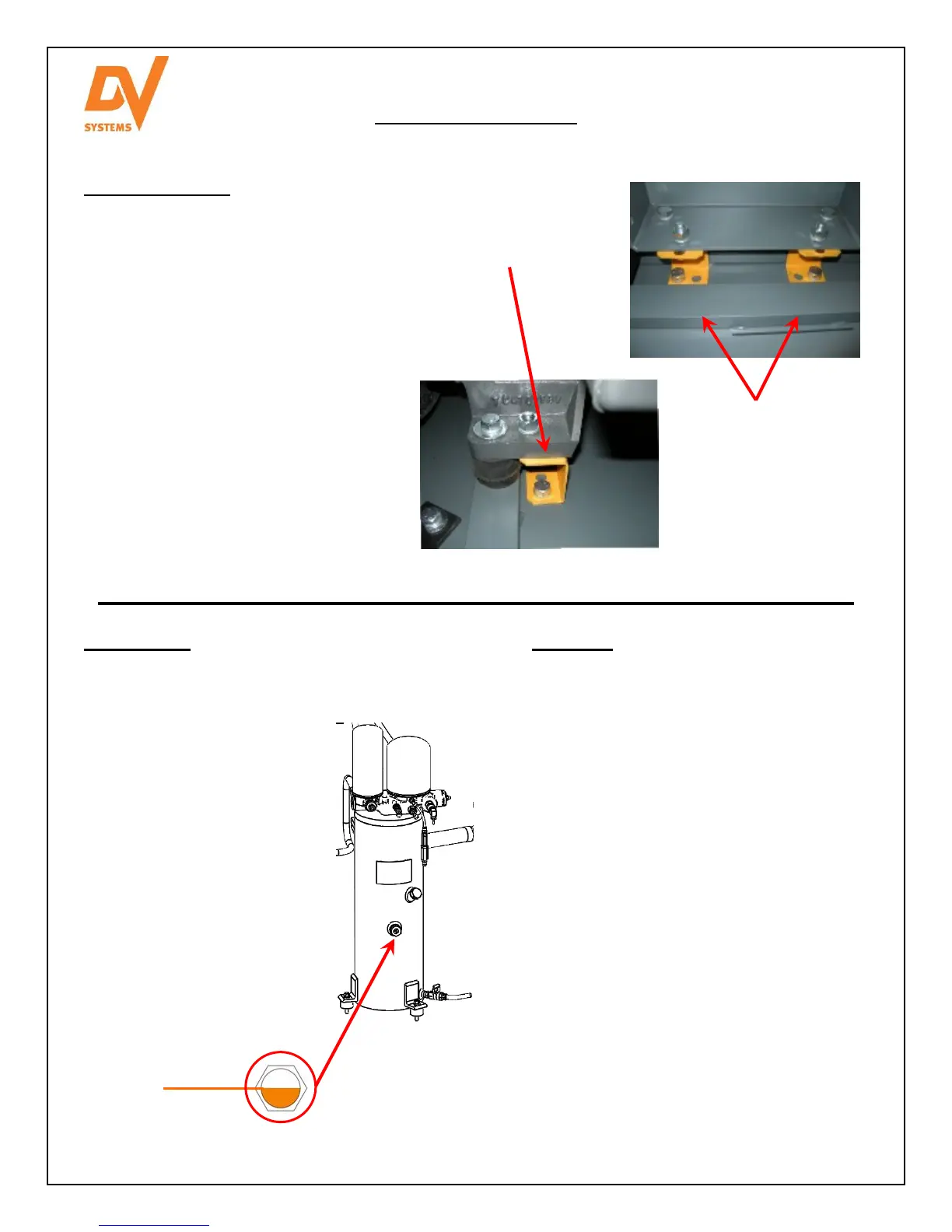

Quick Start (cont’d)
Shipping Cleats.
Lubrication. Rotation.
(Refer to Page 10) (Refer to Page 12)
 Ensure the oil level
in the Air End is to
the level as shown
while at rest.
 The Unit is equipped
with the Sight Glass
 The oil level should
be close to the
center of the Oil
Sight Glass, while at
rest.
 Check the oil after
the Unit has been
at rest for a
minimum of 5
minutes.
 Units are equipped with Advanced Phase
Detection feature which prevents Units
from rotating in the reversed direction.
 An ‘E:0090 Phase Sequence’ Error will
appear on the Controller Screen if the
phase sequence is incorrect. If this
occurs, simply switch the incoming leads
‘L1’ and ‘L3’ at the Control Panel
Note: Units with serial number 077690 and
earlier may be equipped with Anti-
Rotation Switches.
‘E:0902 Anti Rotation’ will appear on the
Controller Screen if the rotation is
incorrect. If this occurs, change ‘L1’ and
‘L3’ at the Control Panel.
 The ‘G Series’ Screw Units are
shipped with (3) Shipping Cleats
that must be removed prior to
operating the Unit.
 (2) Cleats are located under the Belt
/ Pulley Housing as shown at right.
 (1) Cleat is located under the Motor
Mount as shown at right.
(2) Cleats at Belt /
Pulley Housing
(1) Cleat at Motor
Mount
Correct
Oil Level
