NO. PART NO. DESCRIPTION QTY.
1 DSC-002137 FAN ENCLOSURE REAR 1
2 DSC-002136 FAN ENCLOSURE FRONT 1
3 DSC-001150 G SERIES COOLER 1
4 DSC-002138 FAN PLATE 1
5 DSC-120
BONDED WASHER 3/4"
(36MM)
2
6 DSC-002139 FAN BRACKET FRONT 1
7 SS-02002 5/16-18 THREADED INSERT 6
8 DSC-002140 FAN BRACKET REAR 1
9 SS-01834 RIVET 3/16 DIA X 0.575 LG 18
10 DSC-567 ADAPTER R3/4" - JIC8 2
11
DSC-002162
DSC-002162
DSC-002161
DSC-002161
FAN ASSY 200V, 20 HP
FAN ASSY 230V, 20 HP
FAN ASSY 460V-575V 20 HP
FAN ASSY 460V-575V 20 HP
1
12 ACC-9002
CORD CONNECTOR / W NUT
1/2" NPT
1
13 SS-1524 5/16" FLAT WASHER 6
14 SS-1503 5/16" LOCKWASHER 10
15 SS-13 5/16-18 X 7/8" HHCS 4
16 SS-02002 5/16-18 THREADED INSERT 4
17 DSC-297 5/16-18 X 4" TAP BOLT 6
18 DSC-001294 ELBOW JIC 16(M) - 1"NPT(M) 1
19 DSC-002151 ADAPTER 1"NPT(M) - JIC 12 1
02/08/12 NEW PRODUCT
REV.
DATE
REVISION DESCRIPTION
1 OF 1

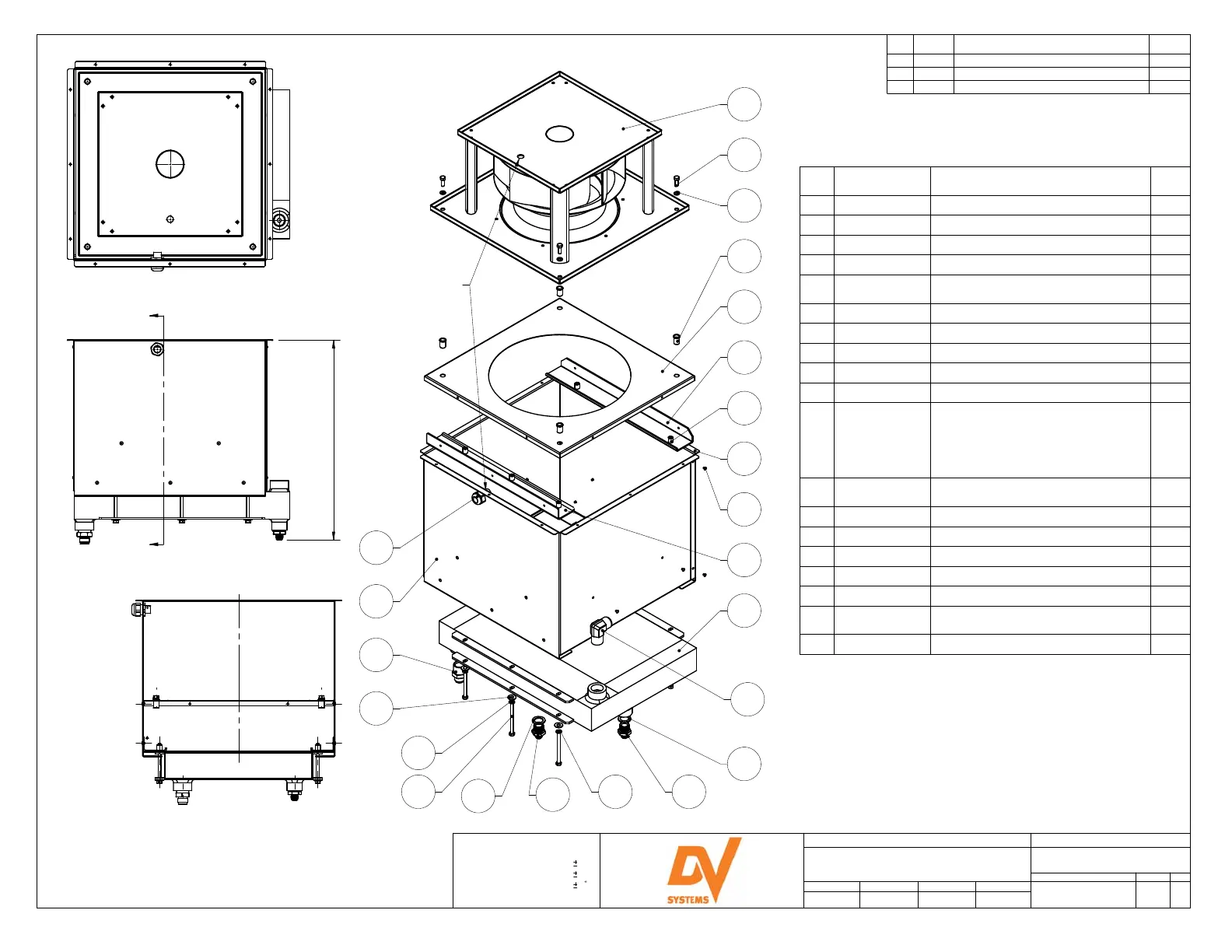

FAN AND COOLER ASSEMBLY
*UNLESS OTHERWISE SPECIFIEDparties for examination without the prior approval of DV SYSTEMS, INC.
DECIMAL DIMENSION:
PCN NO.
D20 FAN ASSEMBLY
ALL DIMENSIONS ARE IN INCHES
ANGLES:
N.T.S
IMPORTANT NOTE: This print is the confidential property of DV SYSTEMS, INC.
02/08/12
It is not to be used or reproduced in any manner, nor submitted to other
T. VOICU
FRACTIONAL DIMENSIONS:
DESCRIPTION OF DRAWING
DRAWING NO.
SHT NO
REV.
NAME OF PROJECT
DRAWN BY CHECKED BY DATE
SCALE
D20 SCREW COMPRESSOR
1/32
.005
1
11-14
21.46
A
A
5
11
15
14
16
4
1
9
3
5
1014
19
2
12
17
13
8
6
7
WITH CORD CONNECTOR
ALIGN FAN CABLE HOLE
18
14
10
SECTION A-A
