Separator Filter and Refrigerated Air Dryer (cont’d)

As previously noted, the Separator Filter is located between the Air End and the Refrigerated Dryer. It contains a

10 micron Separator Element which protects the Dryer Unit by removing liquids and solid particles 10 microns and

larger.

To replace a dirty Filter Element:

• Shut the Compressor Unit off.

• Bleed any compressed air from the system to ensure there is no pressure at the Filter.

• Unscrew the Bowl from the assembly, exposing the dirty Filter Element.

• Twist the Filter Element until it comes loose.

• Replace with a new 10 micron Separator Filter Element

• Clean any debris from the inside of the Bowl, and re-install.

• Cat-eye Gauge will return to green when Filter is once again under pressure.

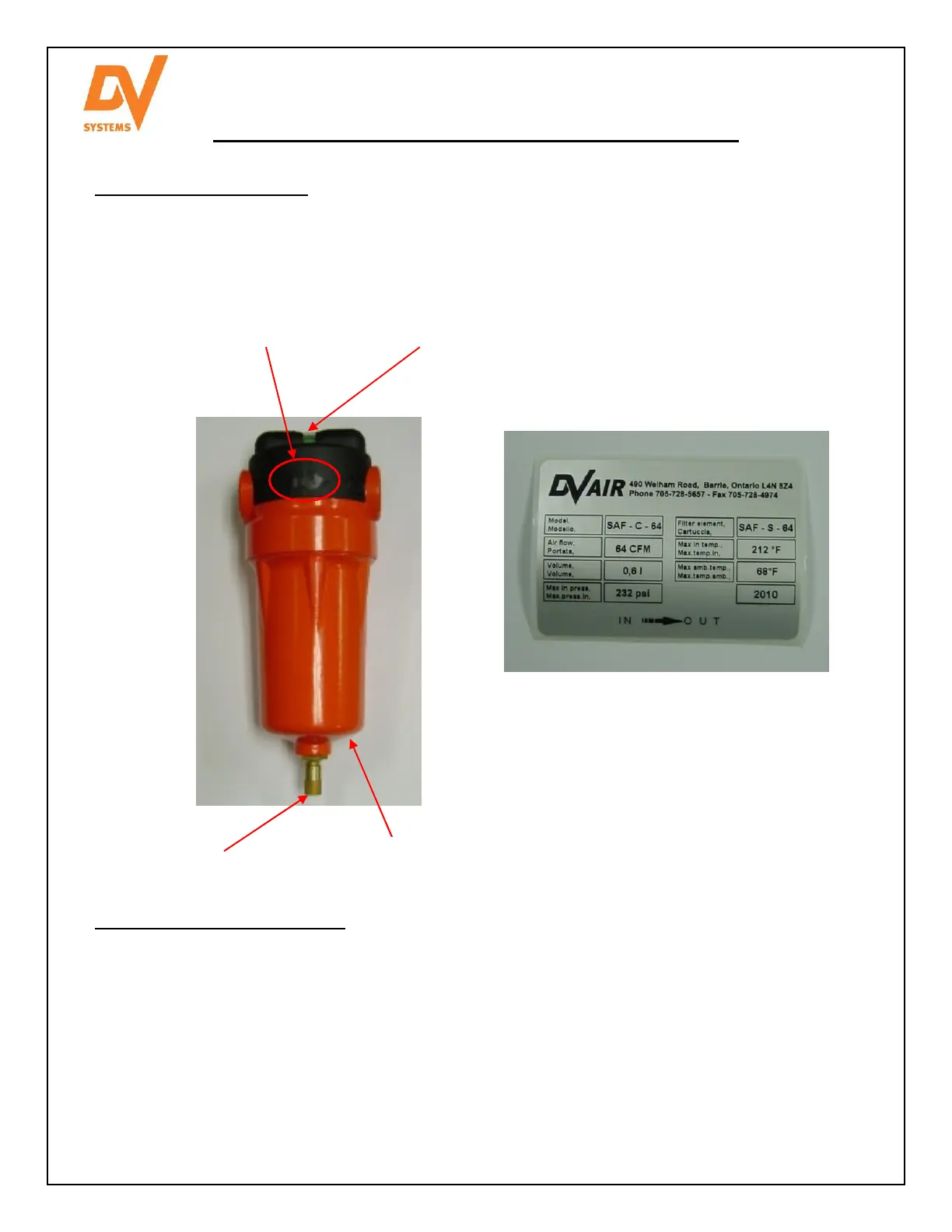

Typical Separator Filter

Arrow Indicates

Direction of Air Flow

Cat-eye Gauge

Green = Filter Element is Clean

Red = Filter Element is Dirty

AutoDrain

Bowl which Contains

Filter Element and

AutoDrain

The label shown above is included with a

replacement Filter Element, and should be

affixed to the outside of the Bowl for future

reference.

Filter Element Replacement
