DVDO iScan Ultra - Typical System Configuration

The iScan Ultra is usually placed between the display device and any video sources
and acts as a source switch for the display.
6
Installation and Set-Up (continued)

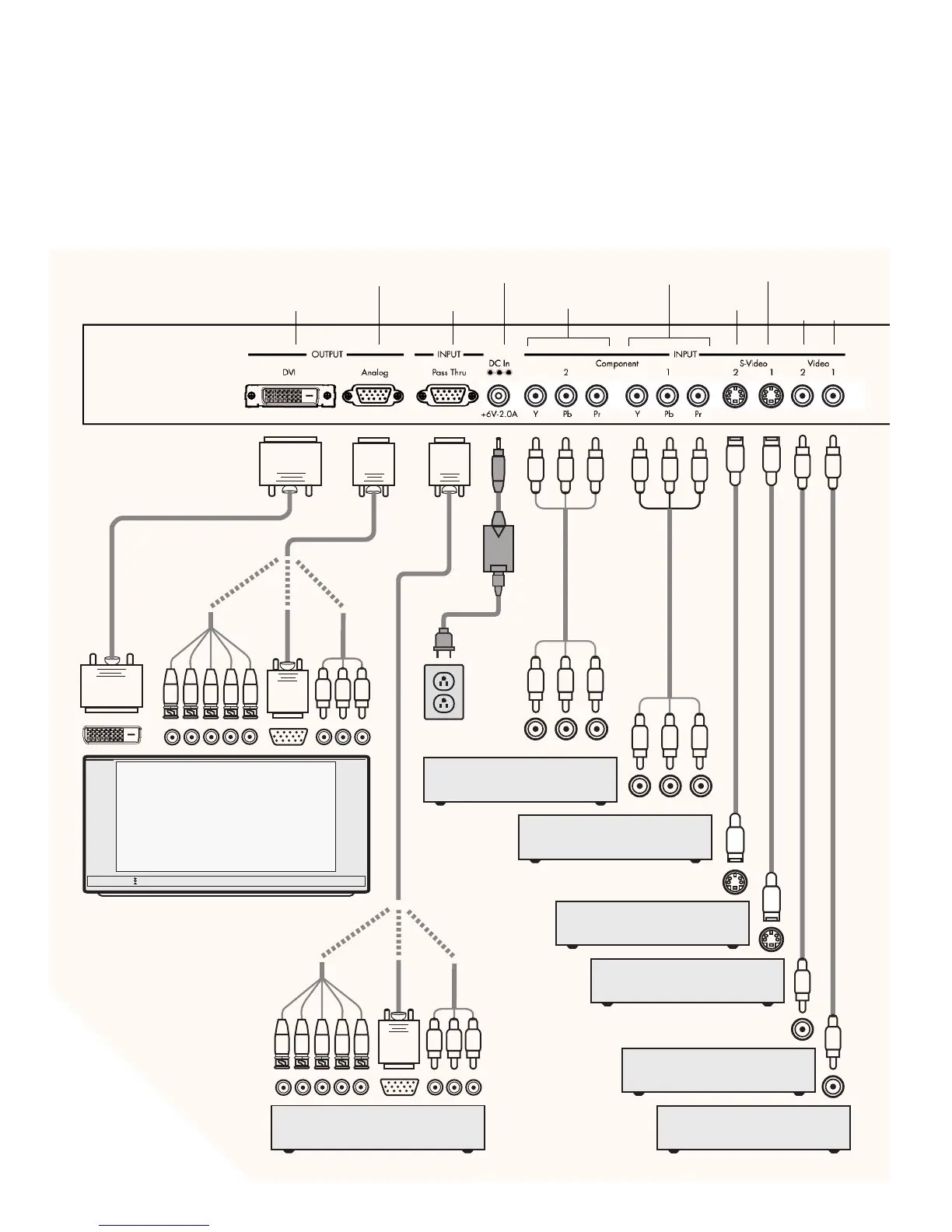

Typical System
Configuration
Back of Unit
Progressively Scanned TV or Projector
Y-Pb-Pr
HD-15
HD Satellite TV Tuner, PC, or
Progressive-Scan DVD Player
DVD Player or Other
Component Video Source
DVD Player or Other
Component Video Source
VCR or Other S-Video Source
Set-Top Box or Other
S-Video Source
VCR or Other
Composite Video Source
Video Game or Other
Composite Video Source
Universal
Power
Adaptor
AC Mains
(100-240
VAC
50/60 Hz)
Component Video Cable
Component Video Cable
S-Video Cable
S-Video Cable
Composite Video Cable
Composite Video Cable
Y-Pb-Pr
5x BNC
HD-15
3x RCA
or
or
5x BNC
HD-15
3x RCA
or
or
Back of Unit
DVI-D Interface Cable
HD Video
DVI-D
or
Analog Output 6V DC Power Supply Input Component Video 1 Input S-Video 1 Input
Digital/DVI Output Pass-Thru Input Component Video 2 Input S-Video 2 Input
Composite Composite
Video Video
Input 2 Input 1
