The DVR system can be configured with a Single View Camera Screen
which could display different camera viewpoints at 6-second intervals. More
details on this mode are mentioned in Chap 7.
Quad Camera View Screen
1.Step 1: Click the Quad View Camera Icon on the right-side toolbar
--------------------------------------------------------------------------------
2.Step 2: The screen will display four camera images in one screen. If
your DVR system has 16 cameras, this view can be configured to
display four different camera viewpoints at 6-second intervals.
9-Camera View Screen
1.Step 1: Click the 9-Camera View Icon on the right-side toolbar-
2.Step 2: The screen will display nine camera images in one screen. If
your DVR system has 16 cameras, this view can be configured to
display nine different camera viewpoints at 6-second intervals.

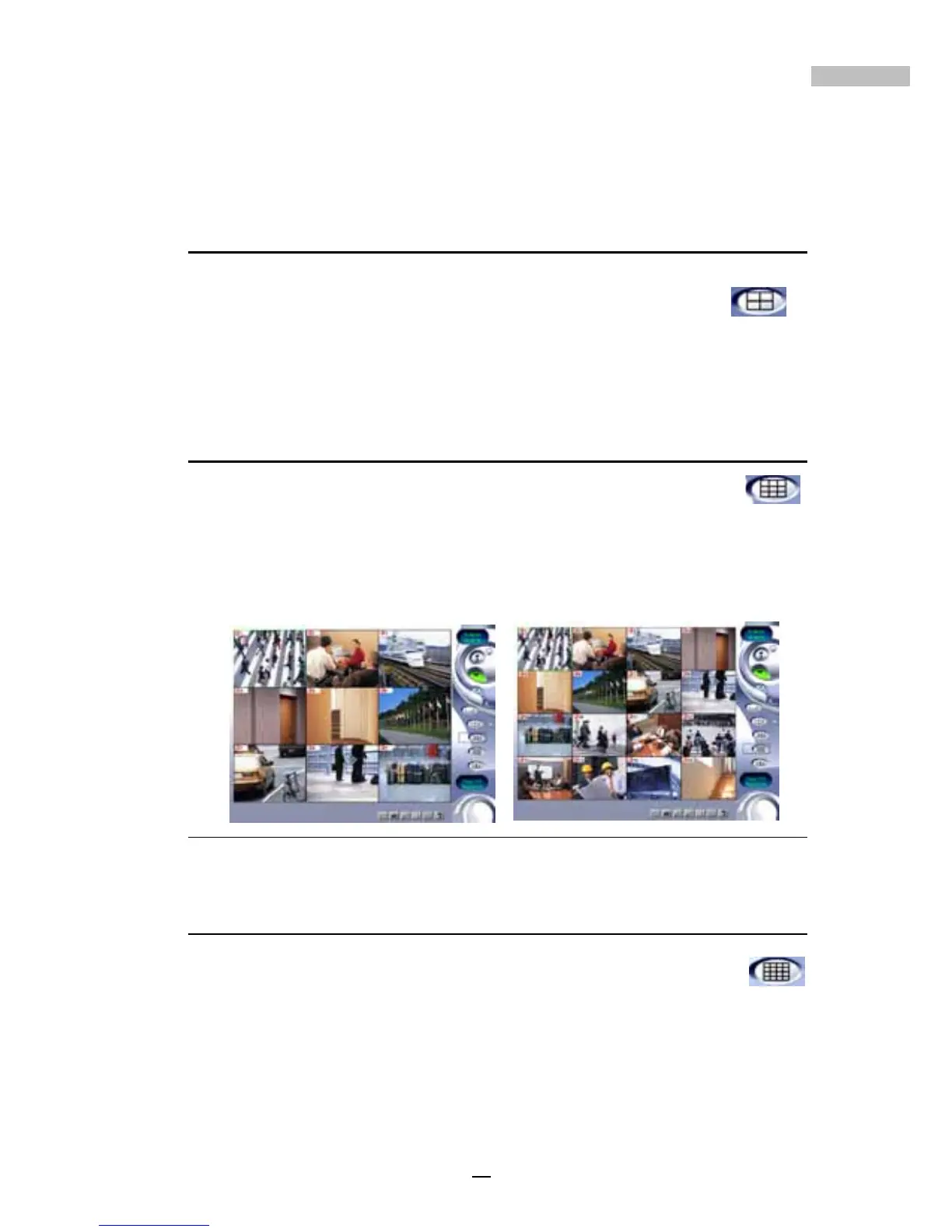

Figure 3-5: The Nine-Camera and The 16-Camera View Screen
16-Camera View Screen
1.Step 1: Click the 16-Camera View Icon on the right-side toolbar
............................................................................................................
2.Step 2: Sixteen camera images will be displayed in one screen.
