DVTel CF-4221-00 Fixed IP Camera User & Installation Guide
4
2.2 Camera’s Connectors

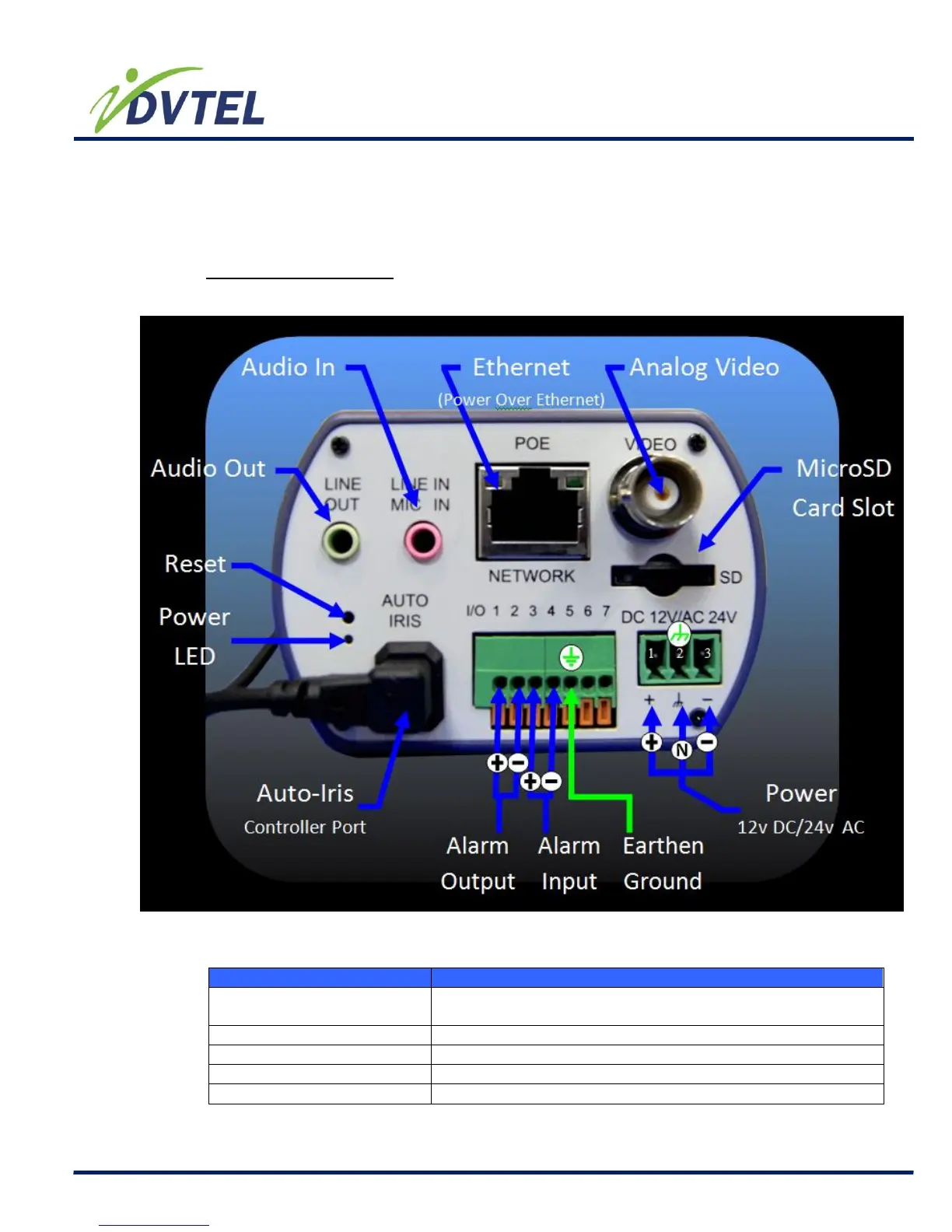

The diagram below shows the CF-4221-00’s reset button and various connectors. Definition
for each connector will be given as follows.
DC 12V/ AC 24V/ PoE
Definition
Remarks
LINE OUT & LINE IN /
MIC IN
Two-way audio transmission
Power LED
Power connection indication (green light)
Reset button
Reset to factory default
AUTO IRIS connector
Auto iris lens connector
NETWORK (with PoE)
RJ-45 connector
