29

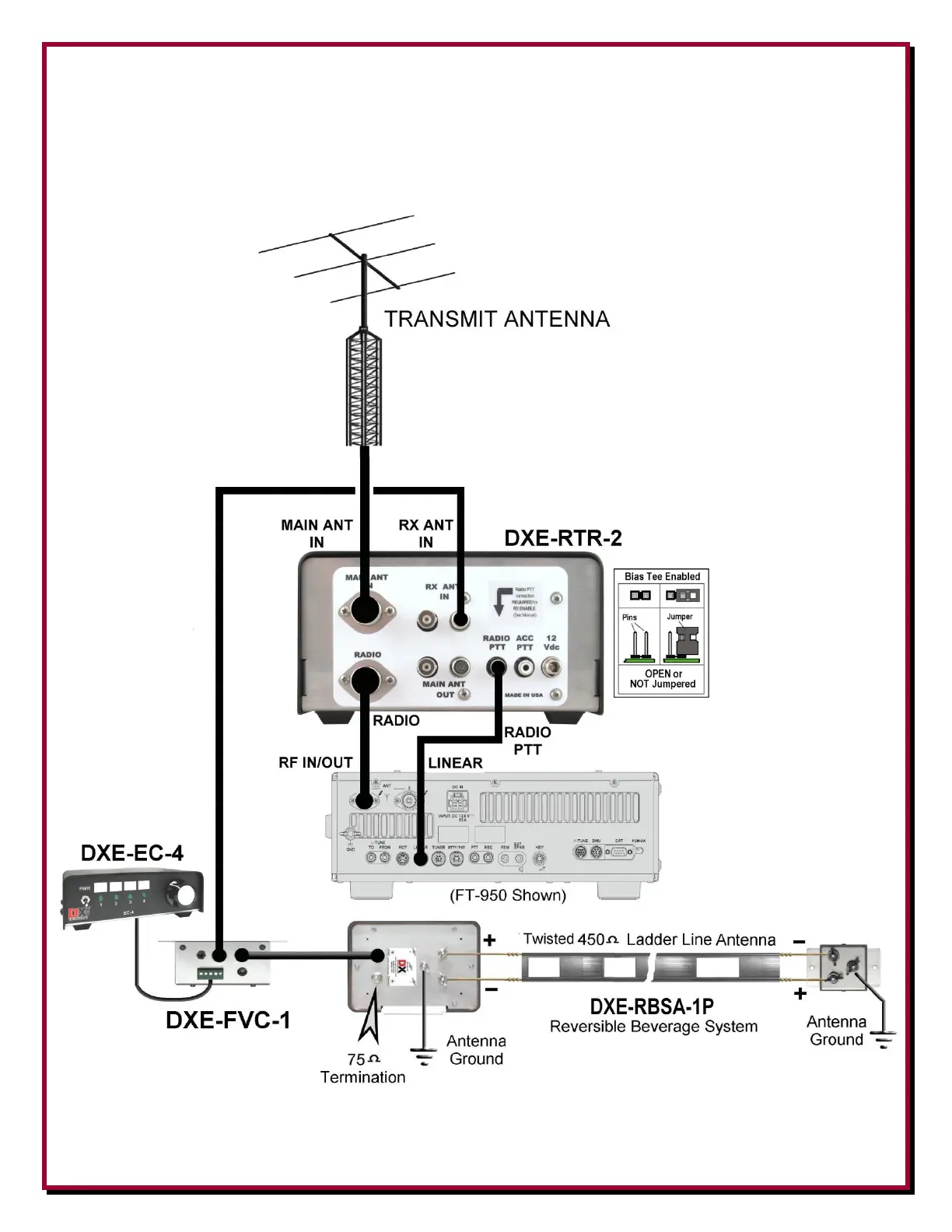

Diagram 6 - Connections for a standard transceiver to a Reversible Beverage
System DXE-RSBA-1P. See the full description in the DXE-RBSA-1P manual
available at DXEngineering.com
