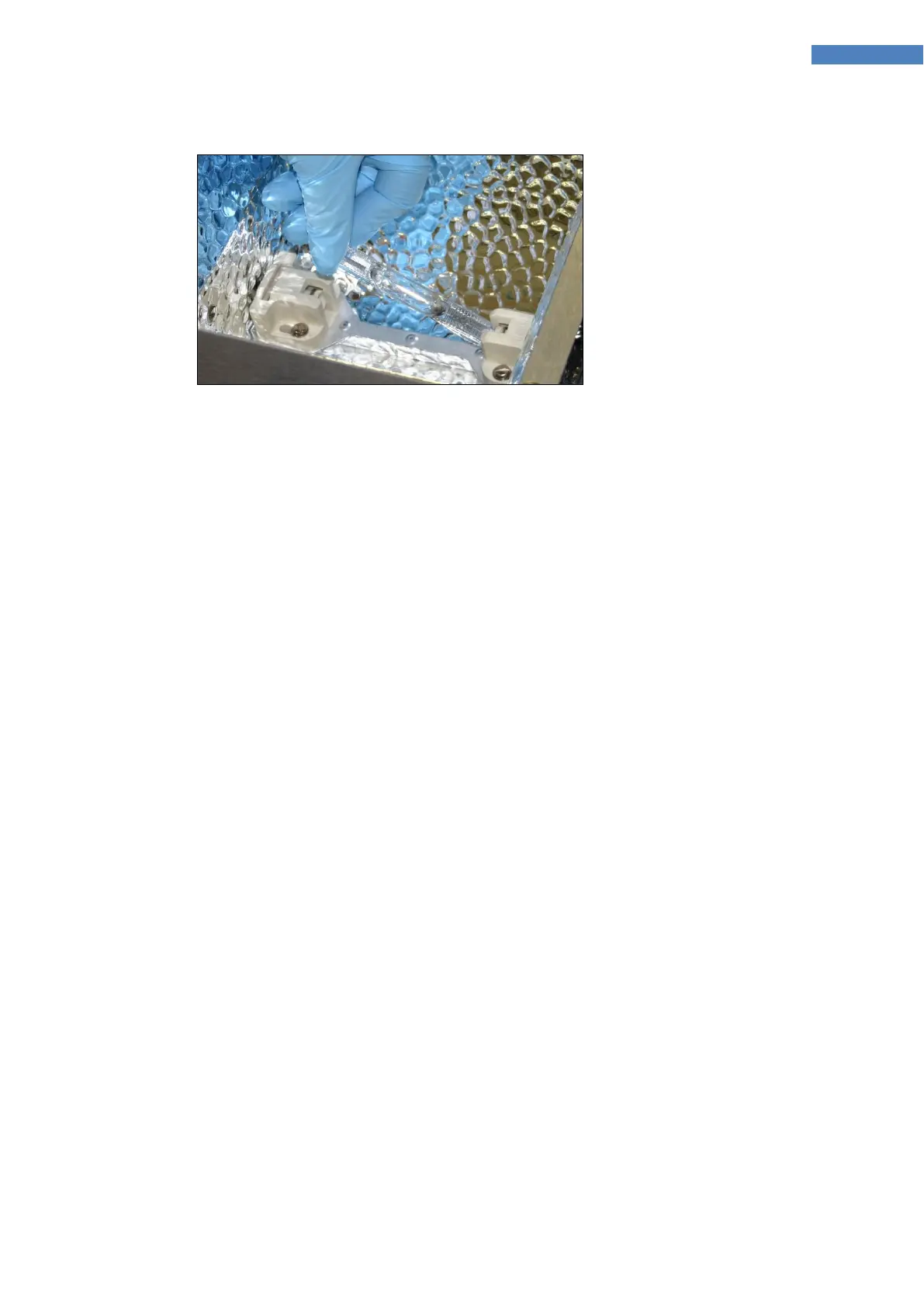

Figure 17. Lift Bulb
Step 4. Record the serial number of the unit and the hour-meter reading in the Bulb History Record.
Step 5. Replace the Lamp/Reflector Assembly Housing on the ECE ZIP Shutter by engaging the Mounting
Bracket.
Step 6. Secure the Thumbscrew when the Lamp/Reflector Assembly Housing is at the proper height.
Step 7. Reconnect the Power Cord to the appropriate power source.
Step 8. Turn the Power Switch on and allow the lamp to warm up for five minutes before using.
NOTE: If the lamp does not ignite, refer to the troubleshooting section of this manual.
Lamp Base Replacement Kit
Installation Instructions:
1. Turn off the power.
2. Remove the Power Cord and Interconnect Cord from the unit.
3. Remove the Lamp/Reflector Assembly and place it on a clean, flat surface with the Lamp facing
up.
4. Remove the Lamp (refer to Lamp Replacement Procedure).
5. Remove the Lamp/Reflector Assembly from the housing by removing the four screws, two on
each side, from the Reflector.
6. Remove the two screws that hold the Igniter (located inside a blue fireproof sleeve) in place from
the side of the unit. Remove the Igniter from the sleeve.
7. Loosen the screws and remove the wires from the Igniter at locations marked "N" and "La".
8. The black Teflon® wire at location "N" will have to be clipped from the Lamp Base Wire and re-
stripped.
9. Remove both Lamp Bases and install the new Lamp Bases from the Lamp Base Replacement Kit.
10. Take one of the Lamp Bases and crimp on a supplied Terminal (PN 35202). This wire will be
installed in the "La" location on the Igniter.
11. The remaining Lamp Base Wire will be joined with the black Teflon® wire using the supplied
Terminal (PN 35218). This wire will be installed in the "N" location on the Igniter.
