28
Dymax ECE Series UV Flood-Lamp Systems User Guide
Property
Specification
Light Shield Specs
Work Area
10" x 10" (25.4 cm x 25.4 cm)
Work Surface Load Capacity
Up to 5 lbs.
Overall Dimensions
(W x D x H)
15.1" x 18.2" x 10.6" [38.42 cm x 46.25 cm x 26.83 cm]
Weight (Light Shield Only)
12.75 lbs [5.78 kg]
ECE ZIP Shutter Specs
Operating Voltage
24 VDC (Supplied by the Dymax ECE Power Supply)
Exposure Time
Digital Setting - From 1 to 99 Seconds
Aperture
6" x 8" [15.24 cm x 20.32 cm]
Operation Modes
Timed/Manual
Dimensions, W x D x H
12.5" x 12.9" x 3.8" [31.8 cm x 32.8 cm x 9.7 cm]

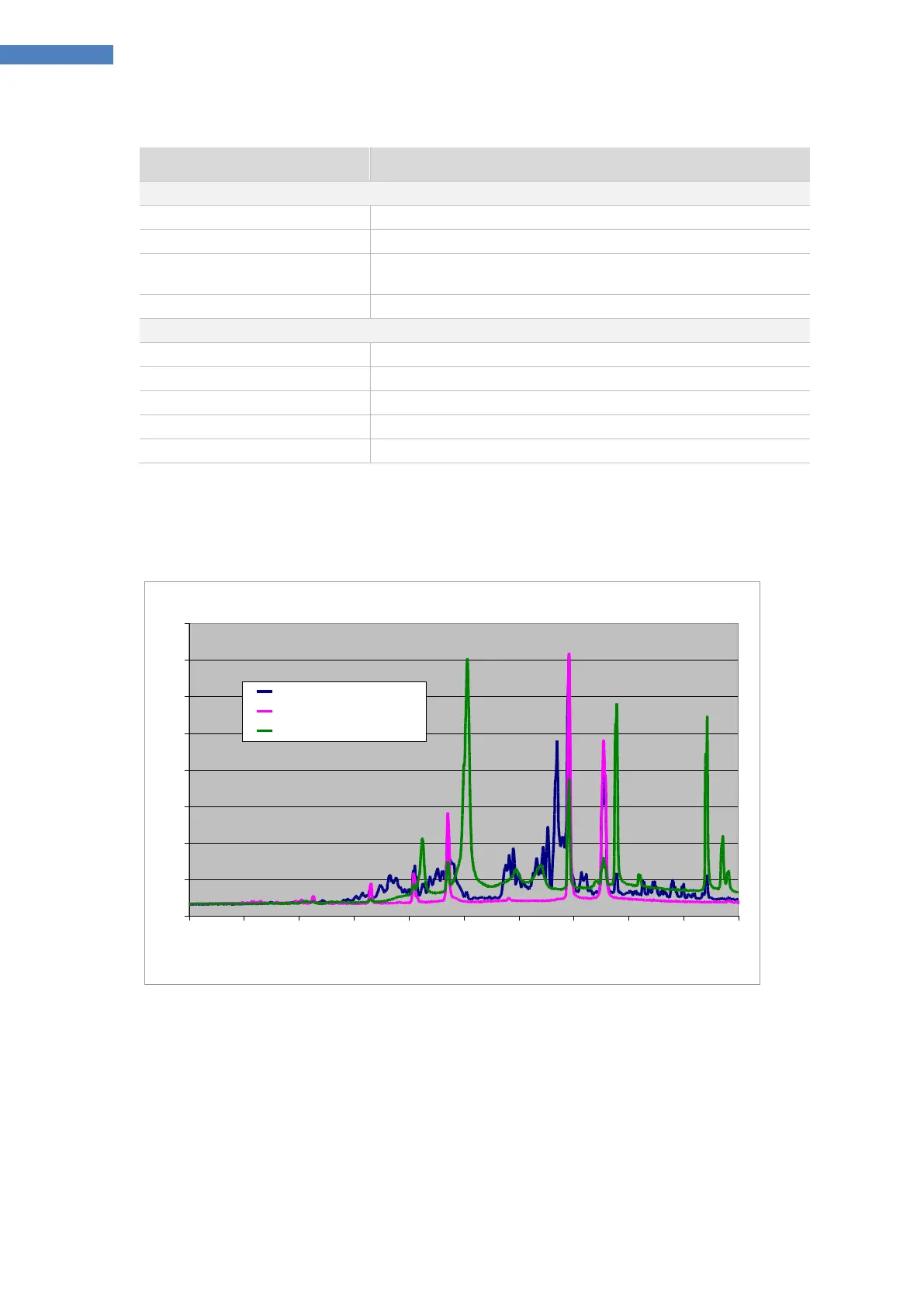

Figure 36. ECE Flood Lamp Spectral Output
Spectral Outputs for DYMAX 400Watt Flood Bulbs
200 250 300 350 400 450 500 550 600 650 700
Wavelength
Relative Intensity
38560 (Metal Halide)
36970 (Mercury)
36658 (Visible)
