Dymax UVCS 2.0 Light-Curing Conveyor User Guide
Specifications
Table 3. Physical Specifications
Property
Specification
Model
UVCS-F-1-230
UVCS-F-2-230 & UVCS39-F-2-230
Part Number
39150
39160 & 42203
Lamp Configurations*
1 Fusion F300 Series Lamp
2 Fusion F300 Series Lamps
Cure Width
6" [152 mm]
12" [305 mm]
Motor Drive
Direct
Belt Speed
1.0 – 32.0 ft/min [0.3 – 9.7 m/min]
Belt Speed Display
Red LED, 1 decimal place
Lamp Focus Adjustment
2.1" - 4.5" [53.3 mm - 114 mm]
Maximum Part Height
4.5" [114 mm]**
Exhaust System
1 integral centrifugal blower
* The UVCS Series Conveyor has a 12" belt width. A single Fusion Lamp will utilize the center 6" of the Belt, while the Dual-Fusion Lamp configuration could
span the full 12" width.
** Larger part heights are achievable with the installation of optional Riser Kits.

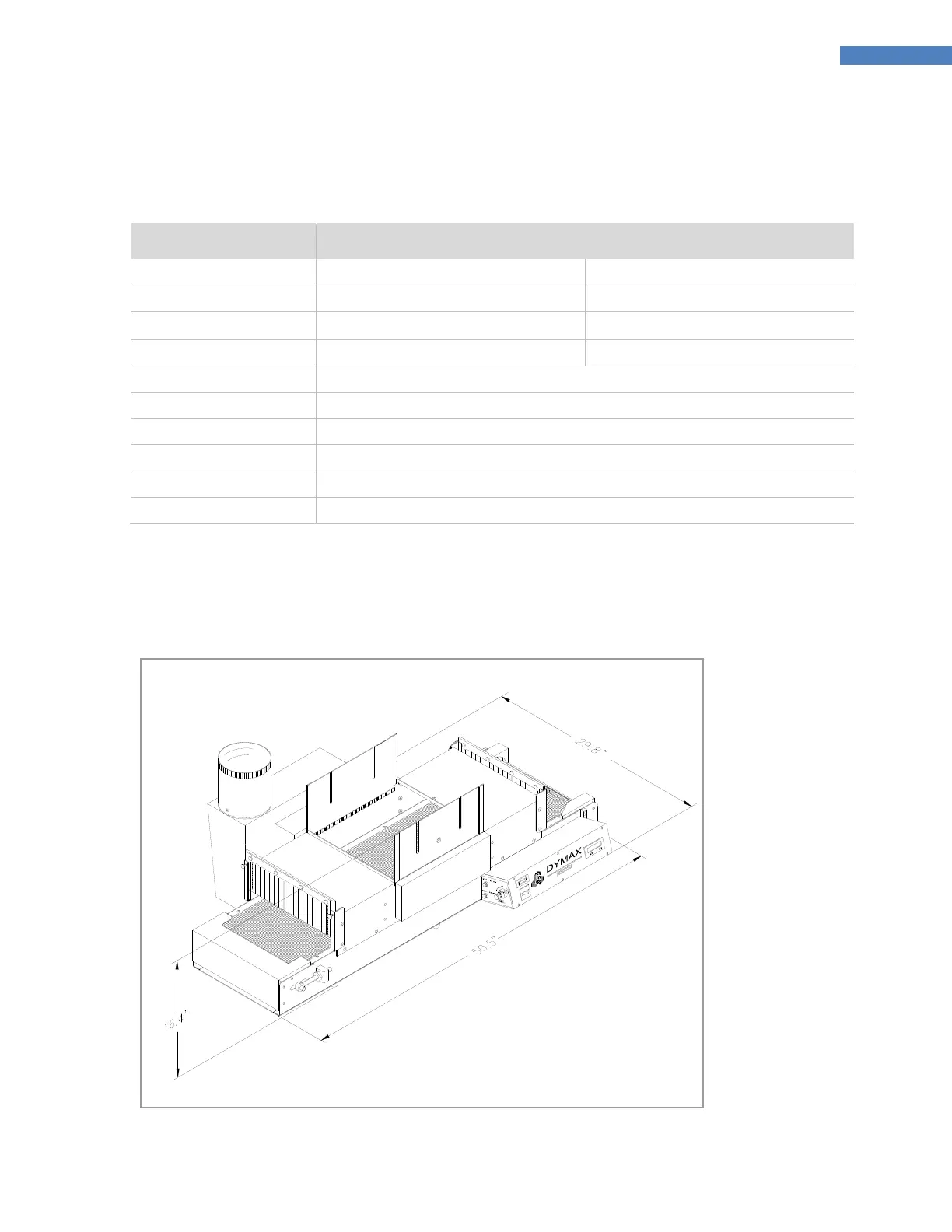

Figure 25. UVCS Version 2.0 Dimensions
