Dymo LabelManager 450D User Manual

5
About Your New Label Maker
With your new DYMO LabelManager™ 450D label maker, you
can create a wide variety of high-quality, self-adhesive labels.
You can choose to print your labels in many different font sizes
and styles. The label maker uses DYMO D1 tape cassettes in
widths of 6 mm, 9 mm, 12 mm, 19 mm, or 24 mm. These tape
cassettes are available in a wide range of materials.
Visit www.dymo.com for information on obtaining labels
and accessories for your label maker.
Warranty Registration
Visit www.dymo.com/registration to register your label
maker online.
Getting Started
Follow the instructions in this section to print your first label.
Connecting the Power
The label maker can operate on AC or battery power. To save
power, the label maker will automatically turn off after two
minutes of inactivity.
Connecting the Power Adapter
An optional 9 Volt, 1.5 A power adapter can also be used to
power the label maker. Connecting the AC adapter to the label
maker disconnects the batteries as a power source.
To connect the power adapter
Plug the power adapter into the power connector on the 1.
top, left side of the label maker.
Plug the other end of the power adapter into a power 2.
outlet.
x Make sure the label maker power is turned o before you
disconnect the power adapter from the main power source.
Otherwise, your most recent memory settings will be lost.
Inserting the Batteries
The label maker uses six 1.5 volt high-capacity AA alkaline
batteries.
To insert the batteries

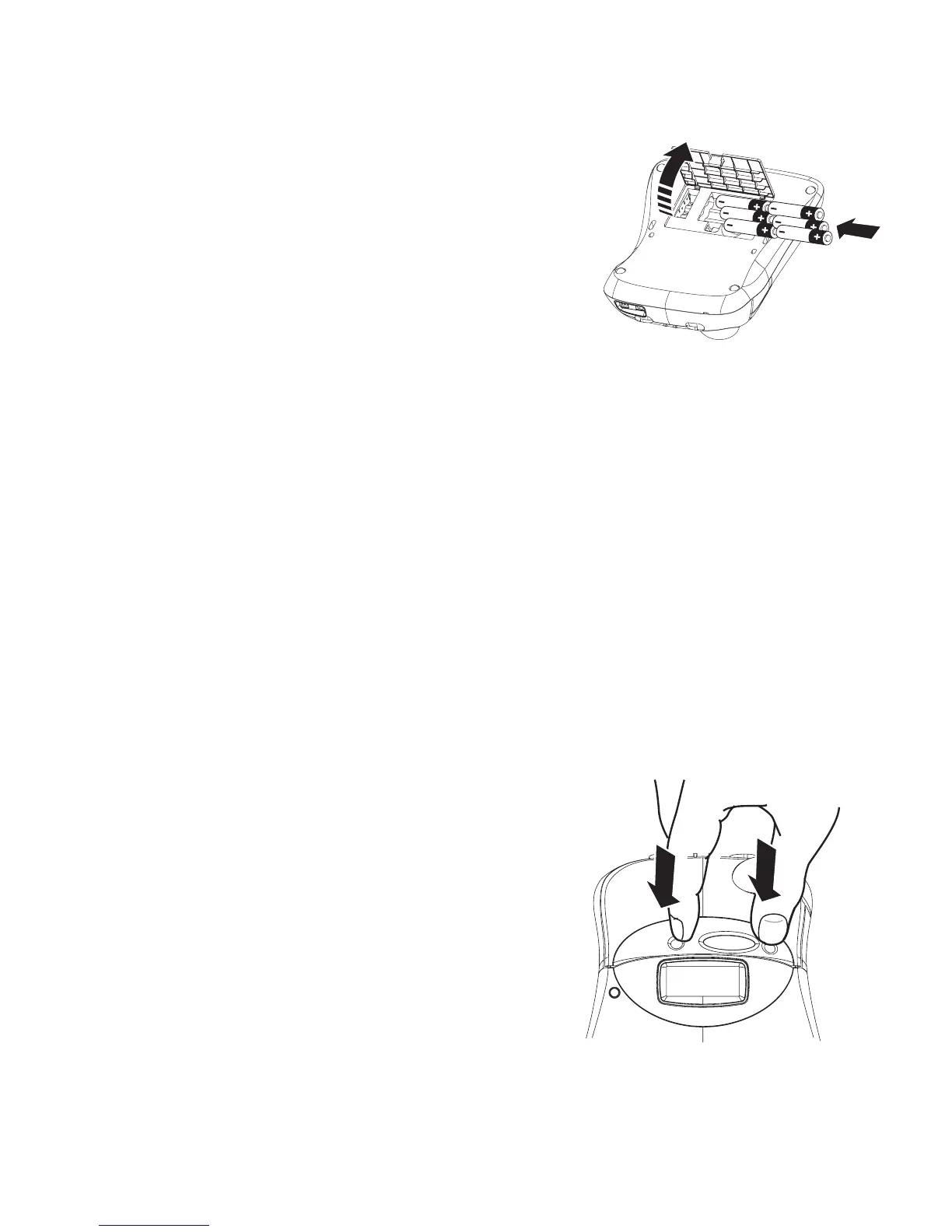

Remove the battery compartment cover. See Figure 2. 1.
Figure 2
Insert the batteries following the polarity markings 2.
(+ and –).
Replace the battery compartment cover.3.
x Remove the batteries if the label maker will not be used
for a long period of time.
Inserting the Tape Cassette
Your label maker comes with one DYMO D1 tape cassette.
Visit www.dymo.com for information about purchasing
additional tape cassettes.
To insert the tape cassette
Press and release the tape cassette cover to open the tape 1.
compartment. See Figure 3.
Figure 3
LM450D_manual_UK_WEU.indd 5 16-08-2007 09:22:55

Dymo LabelManager 450D Specifications

General

Print technology	Direct thermal
Vertical printing	Yes
Maximum resolution	180 x 180 DPI
Maximum print height	18.06 mm
Display	LCD
Product color	Black, Silver
Keyboard layout	QWERTY
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
Connectivity technology	Wired
Tape size	24 mm
Customs code	8472907000
Label memory	10 label(s)
Country of origin	China
Quantity outer carton	6 pc(s)
Net weight of outer carton	9.834 kg
Gross weight of outer carton	11.480 kg
Battery type	AA
Battery technology	Alkaline
Power requirements	9V
Number of batteries supported	6
Tape type	D1
Tape cutting	Automatic
Number of fonts	7
Built-in barcodes	Code 39
Number of printing lines (max)	5
Package type	Presentation box
Package depth	310 mm
Package width	116 mm
Package height	263 mm
Package volume	9.4575 L
Package weight	1639 g
Quantity per pack	1 pc(s)
Master (outer) case width	370 mm
Master (outer) case height	345 mm
Master (outer) case length	550 mm
Master (outer) case volume	70207.5 cm³
Batteries included	No

Weight and Dimensions

Depth	245 mm
Width	215 mm
Height	85 mm
