Dyna-Glo DGF350CSP - Side Burner Body and Valve Assembly

13
Hardware Used
Hardware Used
JJ
JJ
M4x10 Bolt
M4x10 Bolt
x 2
x 2
13

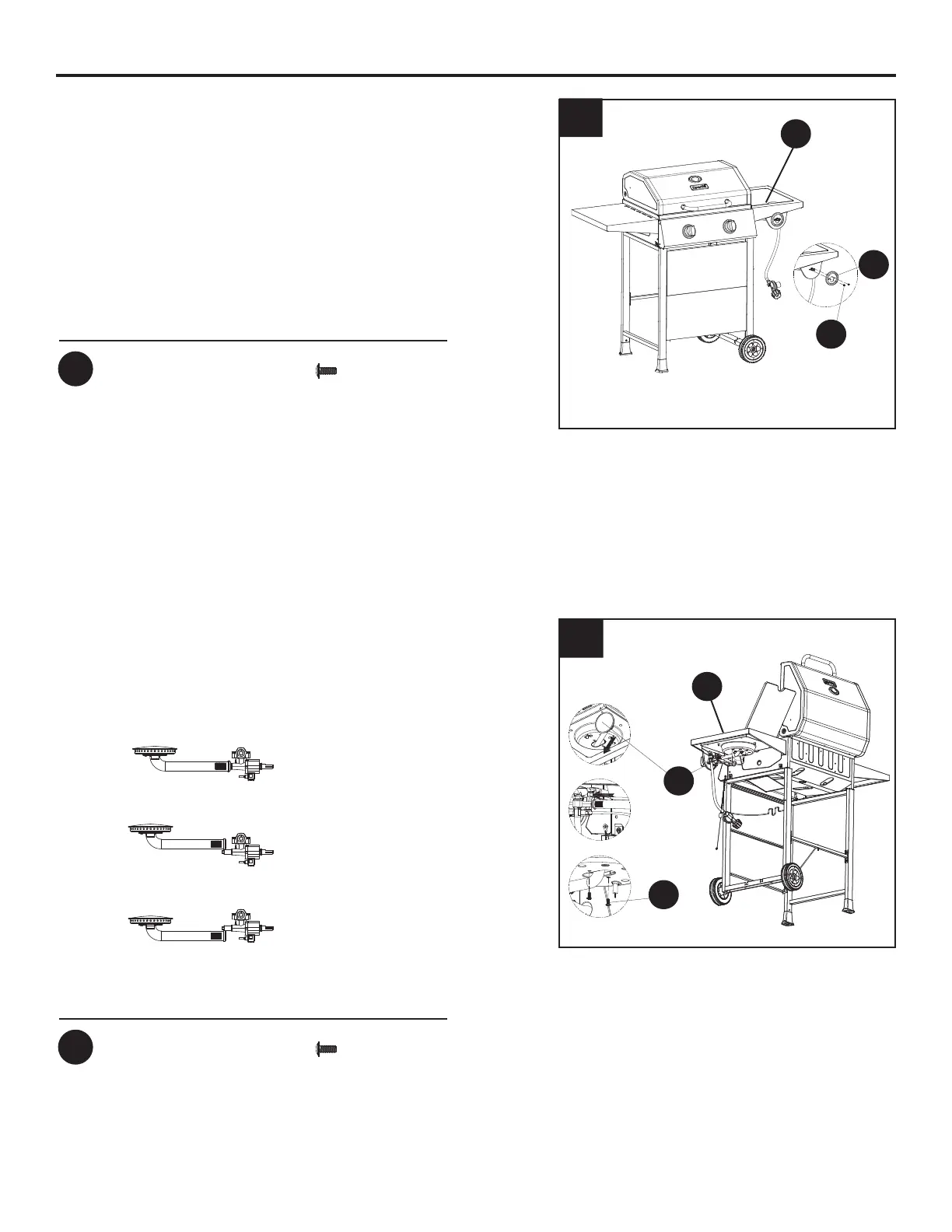

ASSEMBLY INSTRUCTIONS
13. Use two M4x10 bolts (JJ) to assemble the side
burner valve assembly and control knob bezel
(N) to the right side burner body assembly(J).
K
JJ
J
N
J
JJ
14
14. Use two M4x10 bolts(JJ) to assemble the side
burner (K) on the right side burner body
assembly (J). Please ensure the gas valve
orice is correctly positioned inside side burner
inlet (venturi).
Correct
Incorrect
Incorrect
