ASSEMBLY INSTRUCTIONS

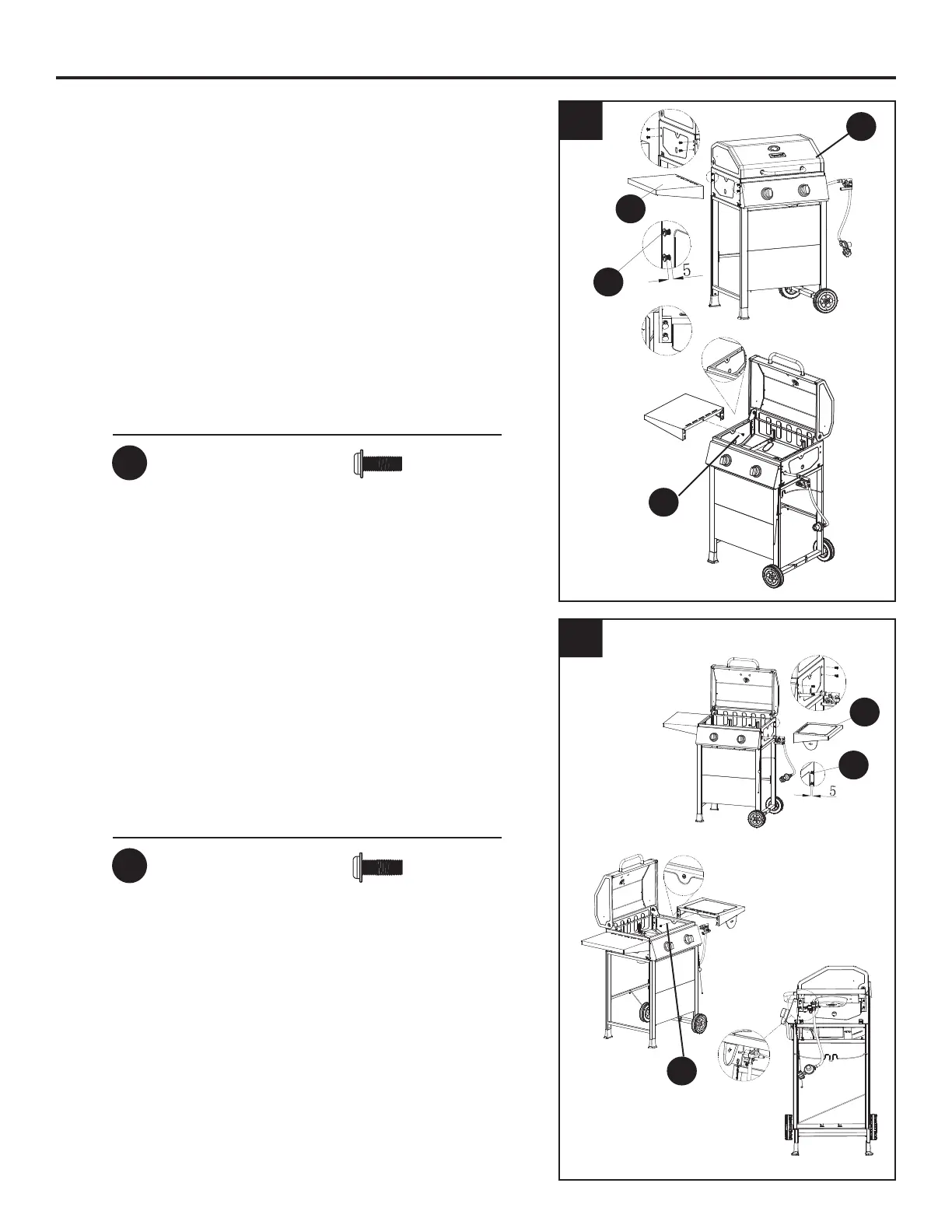

11. Assemble four M6x16 bolts (II) onto the grill
body assembly (C) and do not tighten them
and make sure to leave a 5mm gap between
the bolt and grill body’s end cap. Then hang
the left side table assembly (I) on the bolts
and fasten the left side table assembly (I) with
one M6x16 bolt (II) and tighten all bolts.
11
12
Hardware Used
II
M6x16 Bolt
x 5
I
II
II
II
II
J
12. Assemble four M6x16 bolts (II) onto the grill
body assembly (C) and do not tighten them and make
sure to leave a 5mm gap between the bolt and grill
body’s end cap. Then hang the right side burner body
assembly (J) on the bolts and fasten the right side
burner body assembly (J) with one M6x16 bolt (II)
and tighten all bolts.
Hardware Used
II
M6x16 Bolt
x 5
