Dyna-Glo DGF350CSP - LP Gas Tank Shield and Cylinder Block Bar

9
U
Q

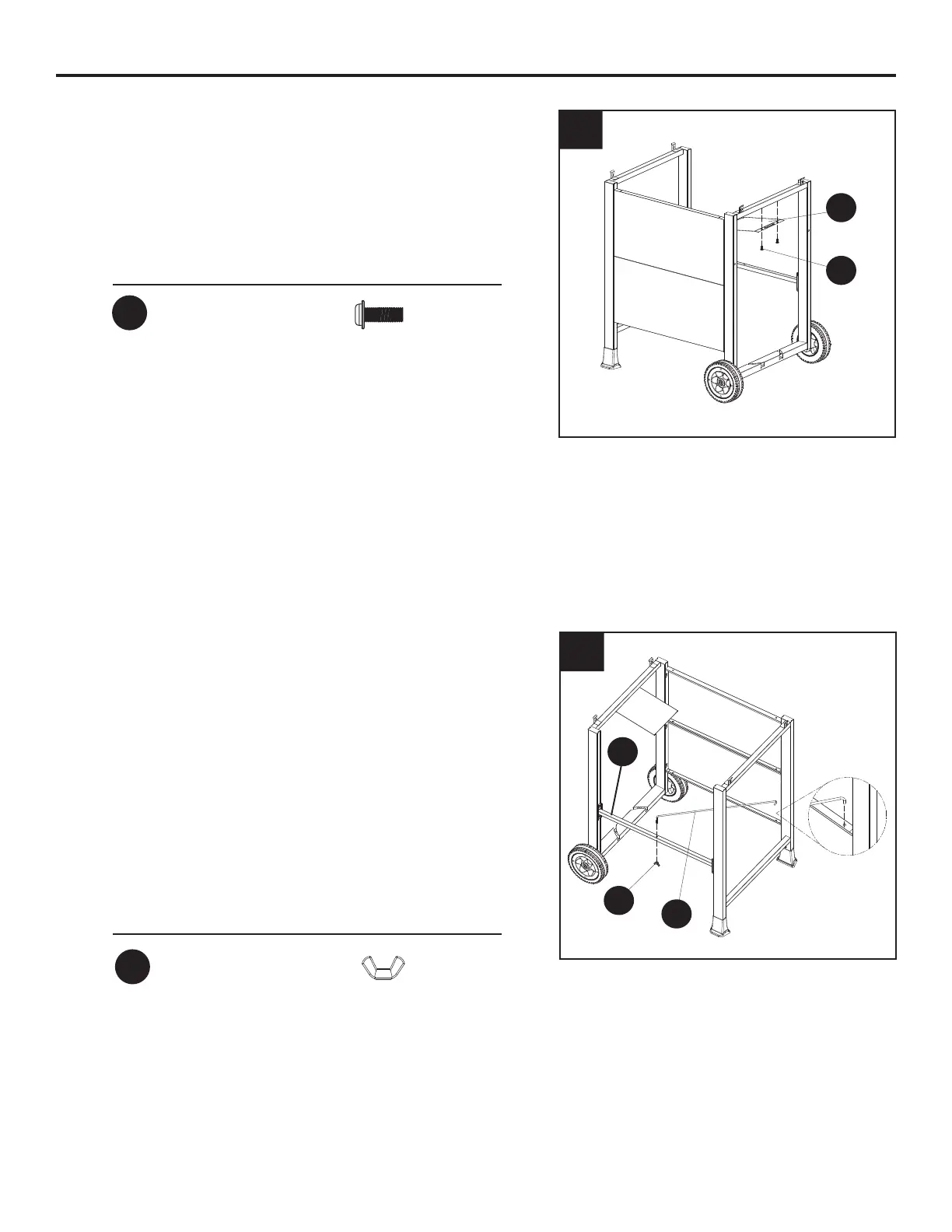

ASSEMBLY INSTRUCTIONS
5. Use two M5x14 bolts (DD) to fasten the LP gas
tank heat shield (S) to right leg assembly.
6. Insert one end of the cylinder block bar(U) into
the hole of the cart front panel in bottom, insert
the other end with thread of the cylinder block
bar into the cart rear brace support (Q). Use
one M5 wingnut (EE) to fasten the cylinder
block bar (U) onto the cart rear brace support
(Q).
5
6
Hardware Used
DD
M5x14 Bolt
x 2
EE
DD
S
Hardware Used
EE
M5 Wingnut
x 1
