Dyna-Glo DGF510SSP - Assembly Instructions

7

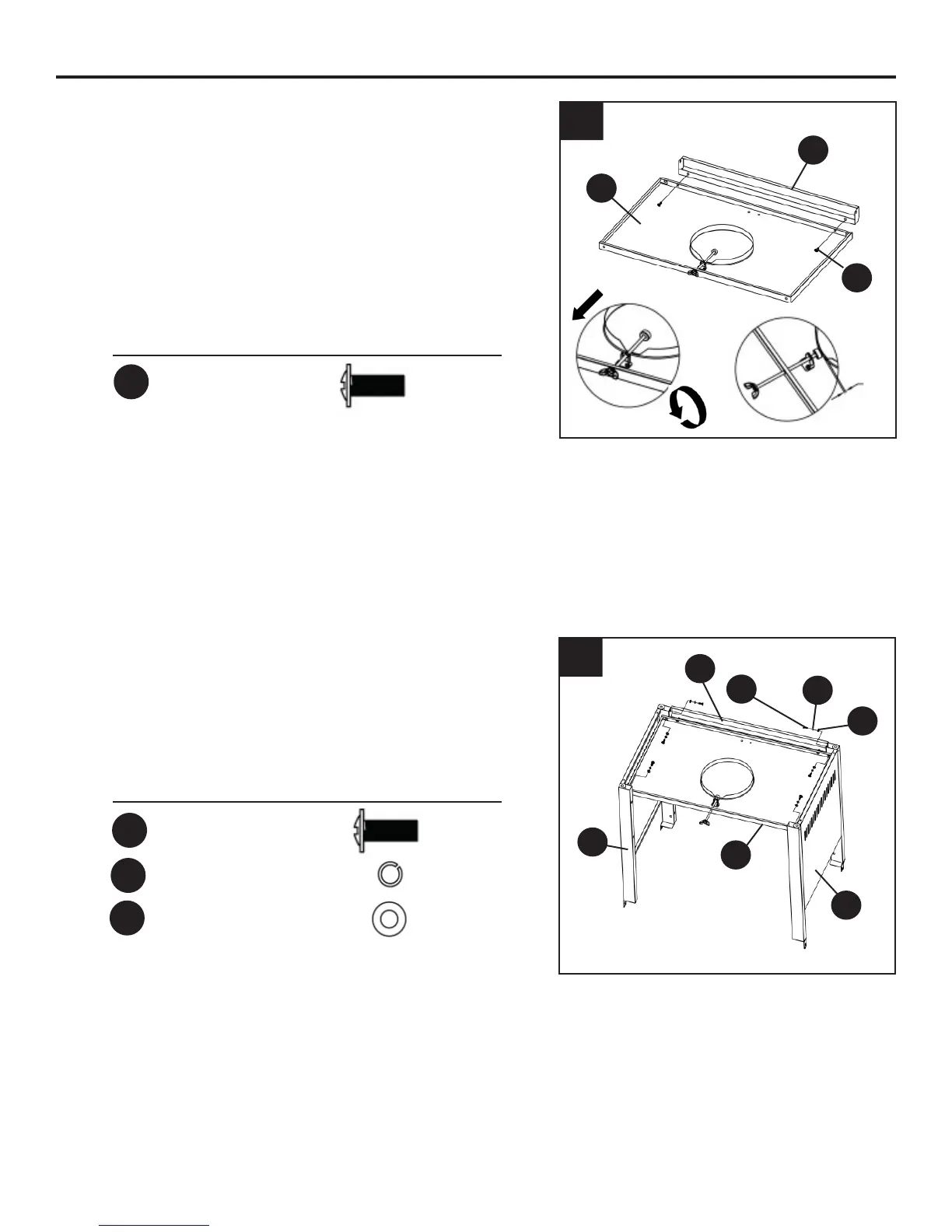

ASSEMBLY INSTRUCTIONS
1. Attach Lower front cart frame (Y) to Bottom
shelf (U) with 2 M6x16 screws (AA), and
loosen the tank screw on the Bottom shelf (U),
keep about 5mm clearance with ange in the
tank nesting hole as shown.
Hardware Used
M6x16 Screw
x 2
2. Attach Cart left side panel assembly (P) and
Cart right side panel assembly (A1) to Lower
front cart frame (Y) and Bottom shelf (U) with 6
M6x16 screws (AA), Spring washers (BB),
and Plain washers (CC).
Hardware Used
AA
M6x16 Screw
x 6
2
AA
1
P
Y
U
CC
A1
U
Y
AA
AA
BB
BB
M6 Spring Washer
x 6
CC
M6 Plain Washer
x 6
5mm
