ASSEMBLY INSTRUCTIONS

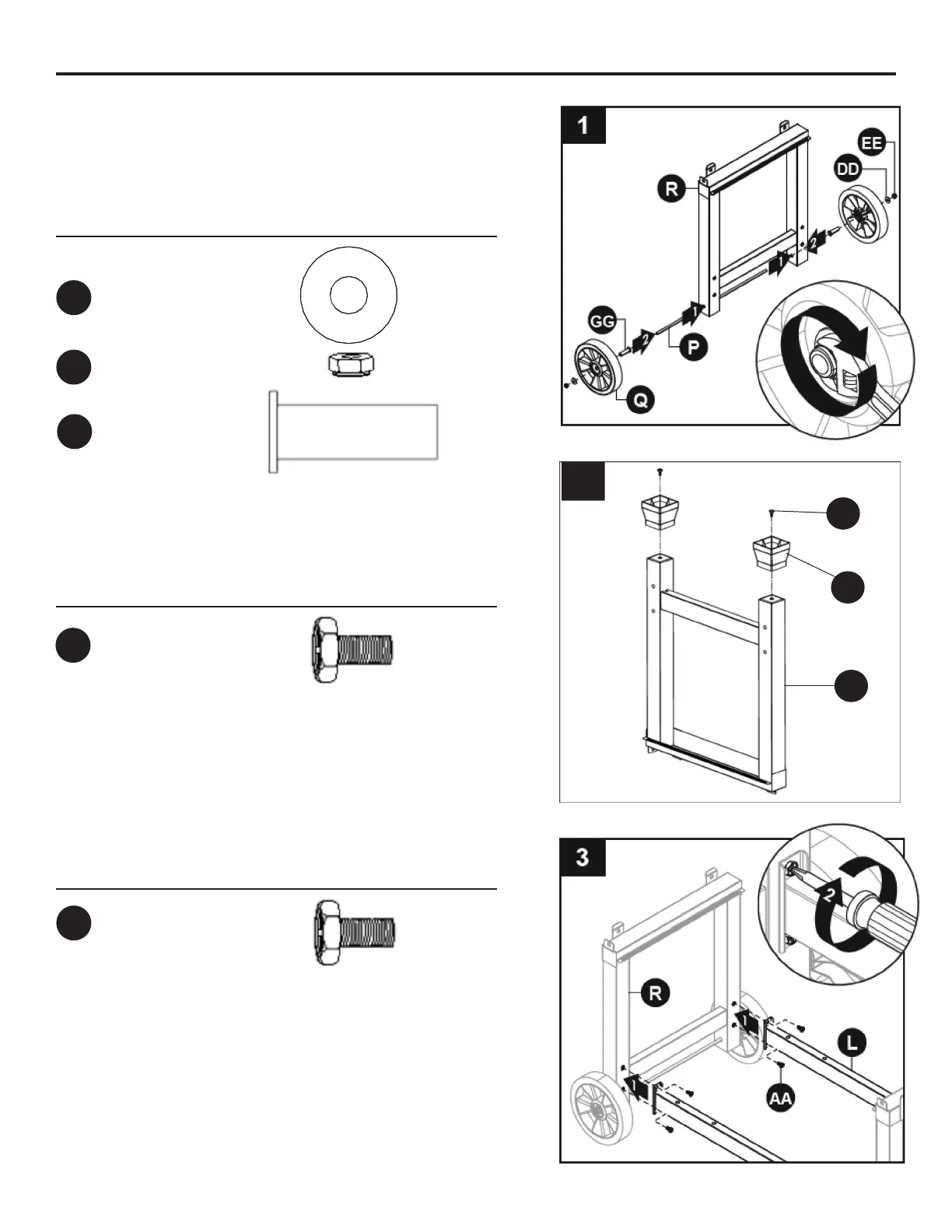

3. Attach two cart braces (L) to left leg assembly (R)
using two M6x12 bolts (AA) on each side.
2. Attach two leg base (N) to right leg assembly
(M) using two M6x12 bolts (AA)
Hardware Used
Hardware Used
M8 Washer
M8 Nut
x 2
x 2
DD
EE
1. Insert axle (P) into left leg assembly (R). Attach
one wheel (Q) to each side of axle (P) using one
M8 washer (DD), one wheel axle sleeve (GG),
and one M8 nut (EE).
M6x12 Bolt
Qty. 27
M6x20 Bolt
Qty. 14
M5 Shoulder
Bolt
Qty. 8
M8 Washer
Qty. 2
M8 Nut
Qty. 2
Wheel Axle
Sleeve
Qty. 2
Hinge Bolt
Qty. 2
M6 Lock Nut
Qty. 3
M5 Lock Nut
Qty. 8
M6x30 Bolt
Qty. 2
AA
BB CC DD EE
GG HH II
JJ
LL
Wrench
Qty. 1
Cotter Pin
Qty. 7
FF
KK
Hardware Used
M6x12 Bolt
x 4
AA
2
AA
M
N
M6x12 Bolt
x 2
AA
Wheel Axle
Sleeve
x 2
GG
