ASSEMBLY INSTRUCTIONS

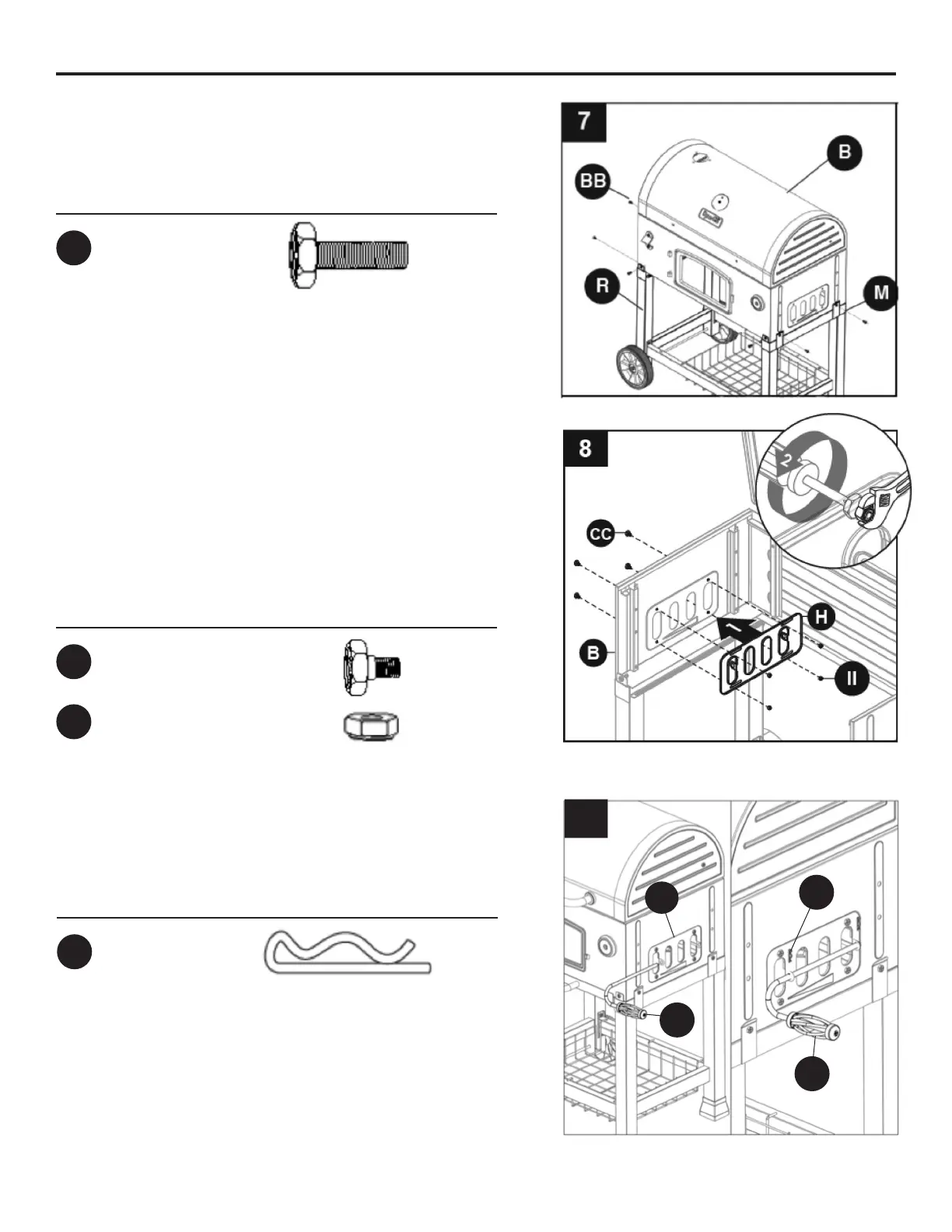

7. Secure lid and rebox assembly (B) on top of
left leg assembly (R) and right leg assembly (M)
using six M6x20bolts (BB).
8. Attach damper (H) to inside of lid and rebox
assembly (B) using four M5 shoulder bolts (CC)
and four M5 lock nuts (II). Repeat for remaining
damper (H).
NOTE: For clarity, illustration is shown with front
of lid and rebox assembly (B) removed.
Hardware Used
Hardware Used
M6x20 Bolt
M5 Shoulder Bolt
M5 Lock Nut
x 6
x 8
x 8
BB
CC
II
9. Insert damper handle – right (G) into the two holes
on right side damper (H). Secure with two cotter
pins (FF). Repeat for damper handle – left (V).
Hardware Used
Cotter Pin
x 4
FF
9
G
FF
G
H
