Dyna-Glo DGN486SNC - Page 11

Hardware Used
11

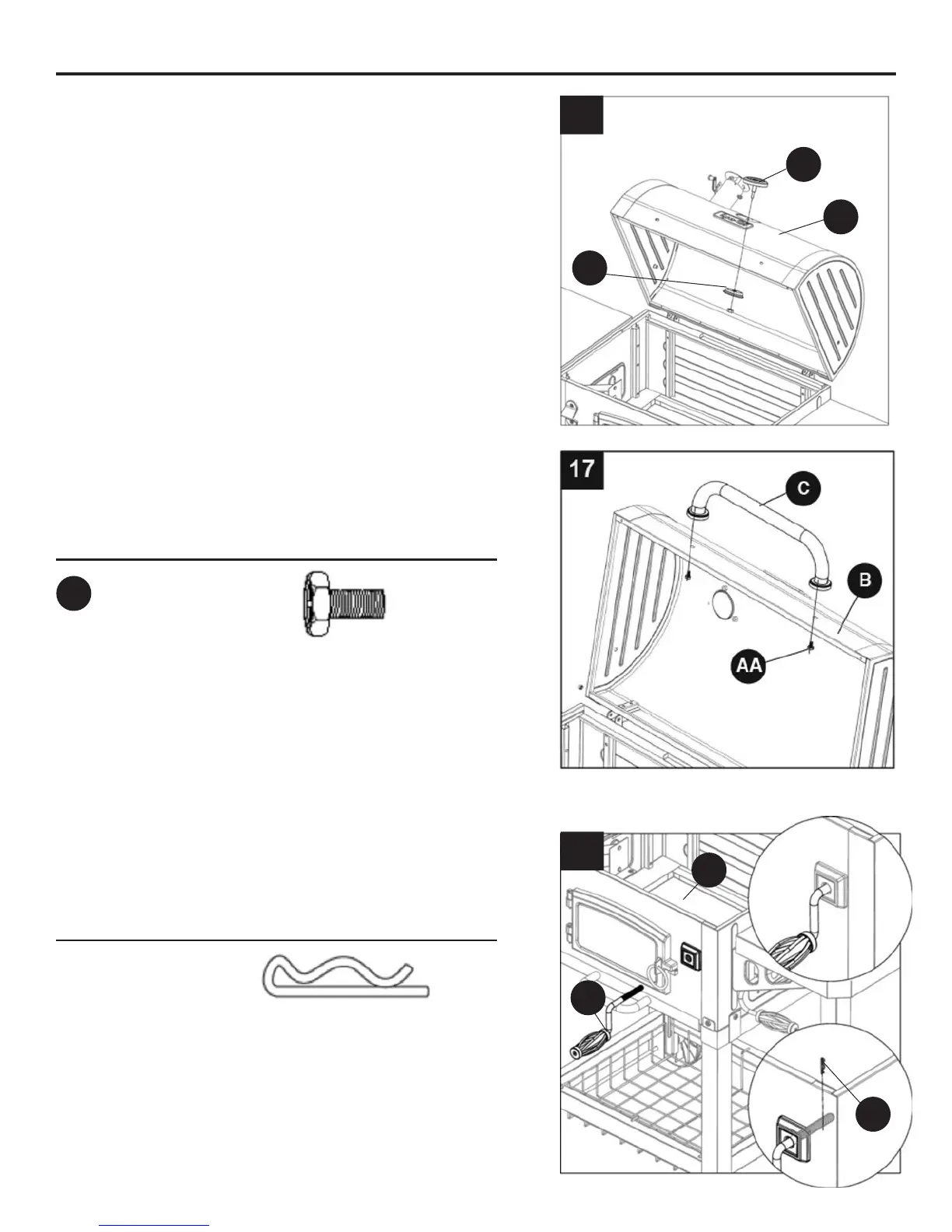

ASSEMBLY INSTRUCTIONS
16. Attach temperature gauge (X) and temperature
gauge nut bezel (Z) to lid and rebox assembly
(B) using pre-assembled nut.
18. Thread crank handle (F) into lid and rebox
assembly (B). Secure with one cotter pin (FF).
Hardware Used
Cotter Pin
x 1
17. Attach lid handle assembly (C) to lid and rebox
assembly (B) using two M6x12 bolts (AA).
M6x12 Bolt
x 2
AA
16
B
X
18
B
FF
F
Z
