12

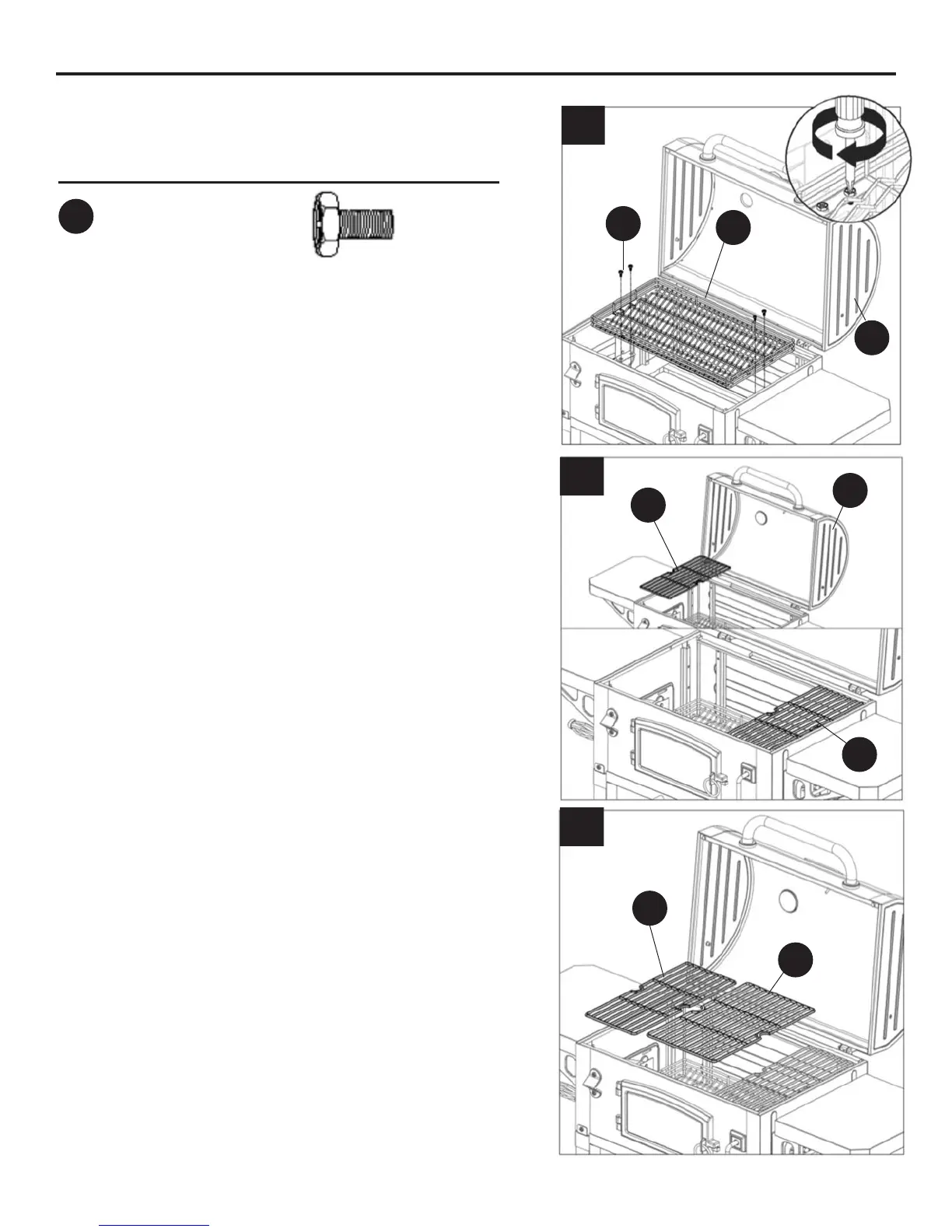

ASSEMBLY INSTRUCTIONS
19. Attach charcoal tray (S) to inside of lid and
rebox assembly (B) using four M6x12 bolts (AA).
20. Place one grate - small (Y) onto the far left side
of grate frame inside the lid and rebox
assembly (B). Slide to Right of grill.
21. Place a second small grate (Y) on the lower
grate frame of the lid and rebox assembly (B)
(far left side). Place the grate - large (T) on the
upper grate frame of the lid and rebox
assembly (B) as shown.
Hardware Used
M6x12 Bolt
x 4
AA
19
S
AA
B
B
Y
20
T
Y
21
Y
