ASSEMBLY INSTRUCTIONS

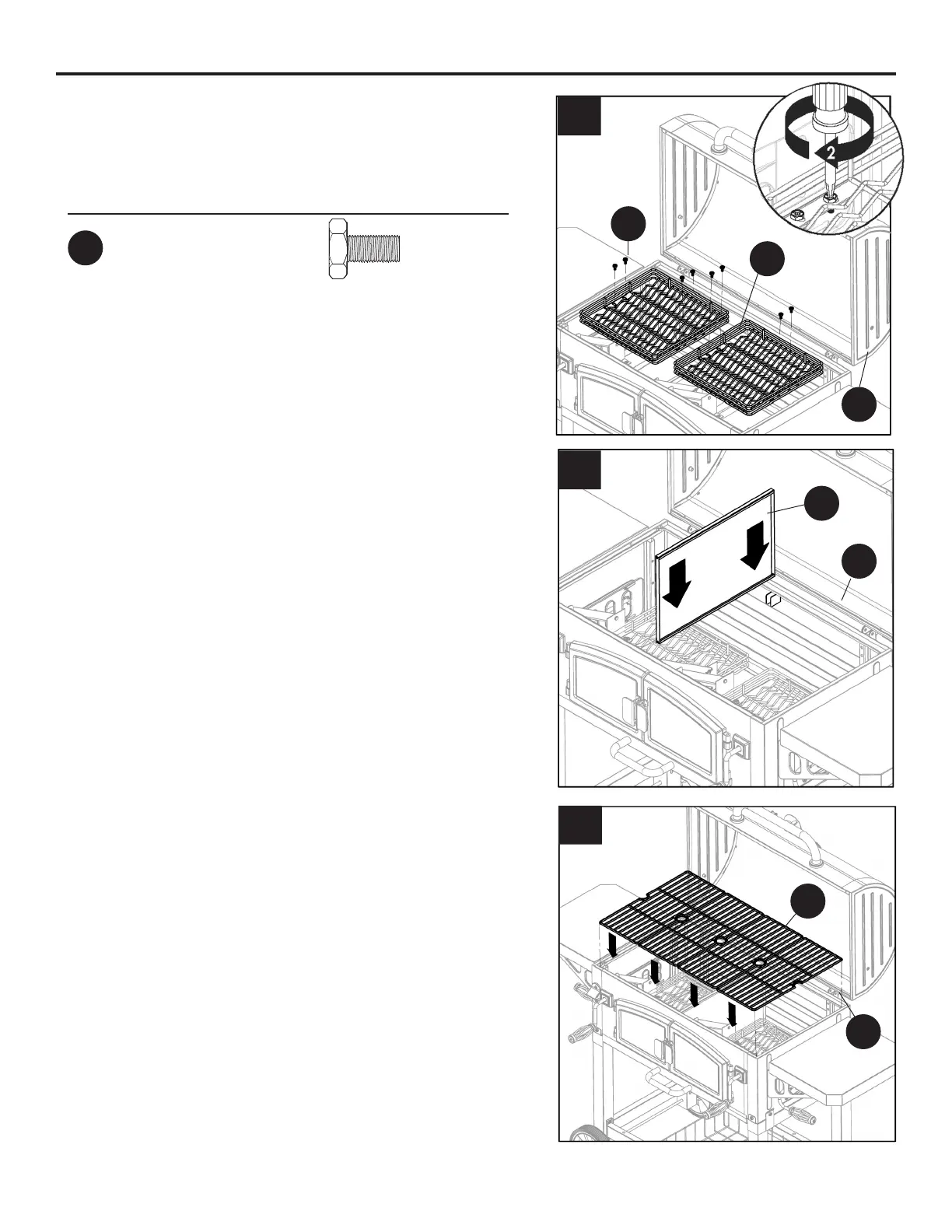

19. Attach two charcoal trays (X) to inside of lid and
rebox assembly (B) using four M6x12 bolts (AA)
each.
20. Insert the divider panel (Y) into the inside of the
lid and rebox assembly (B).
21. Place four grates (T) on lid and rebox
assembly (B).
Hardware Used
M6x12 Bolt
x 8
AA
M6x12 Bolt
Qty. 27
M6x20 Bolt
Qty. 14
M5 Shoulder
Bolt
Qty. 8
M8 Washer
Qty. 2
M8 Nut
Qty. 2
Wheel Axle
Sleeve
Qty. 2
Hinge Bolt
Qty. 2
M6 Lock Nut
Qty. 3
M5 Lock Nut
Qty. 8
M6x30 Bolt
Qty. 2
AA
BB CC DD EE
GG HH II
JJ
LL
Wrench
Qty. 1
Cotter Pin
Qty. 7
FF
KK
19
X
AA
B
20
B
Y
21
B
T
