11
ASSEMBLY INSTRUCTIONS

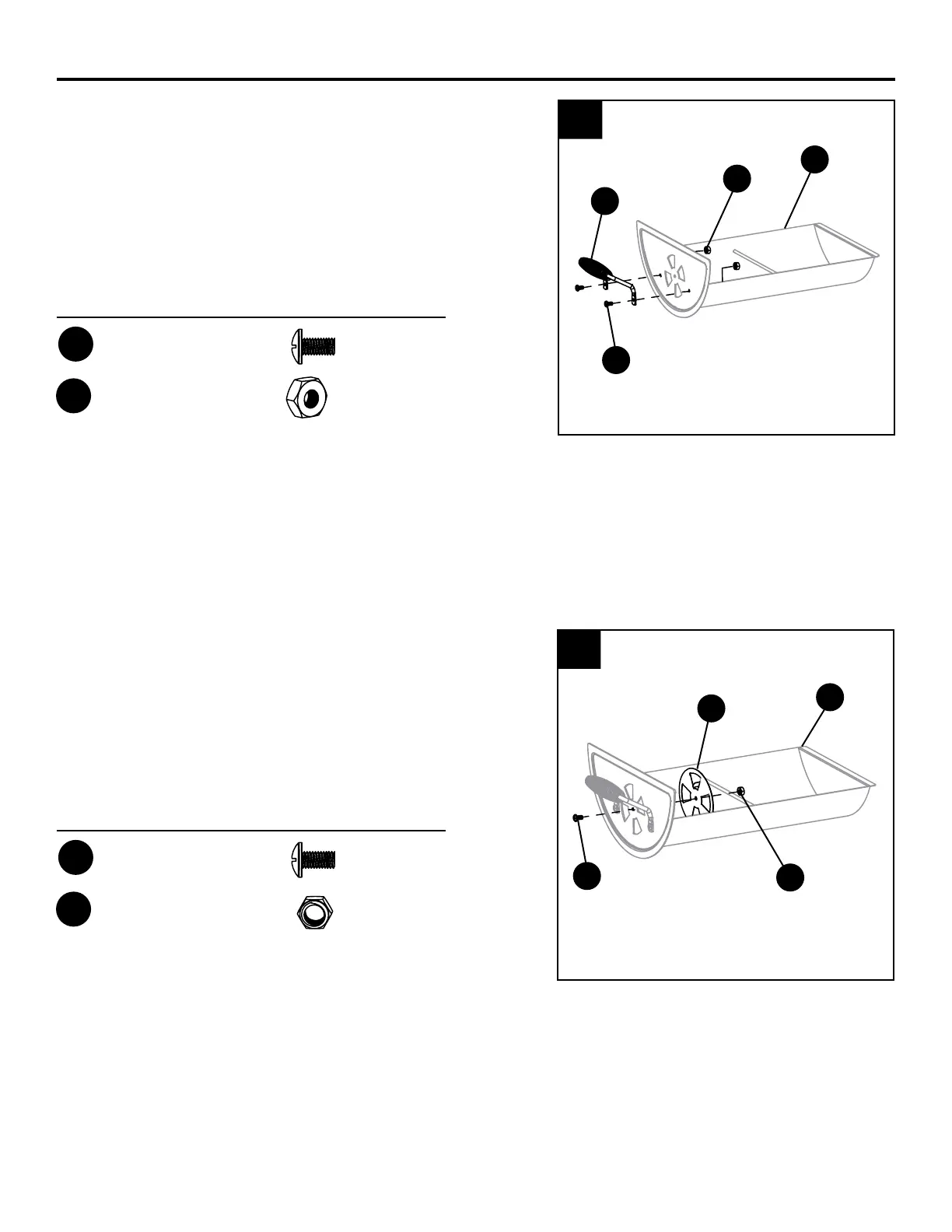

11. Attach the access tray handle (I) to the access
tray (G) using two M6 x 12 bolts (AA) and two
M6 nuts (BB).
12. Attach the damper plate (H) to the inside of the
access tray (G) using one M6 x 12 bolt (AA) and
one M6 lock nut (CC).
G
11
12
AA
I
Hardware Used
BB
M6 Nut
x 2
AA
M6 x 12mm
Bolt
x 2
BB
Hardware Used
CC
M6 Lock Nut
x 1
AA
M6 x 12mm
Bolt
x 1
AA
H
CC
G
