Dyna-Glo M486BBDG14 - Page 14

14
13
ASSEMBLY INSTRUCTIONS

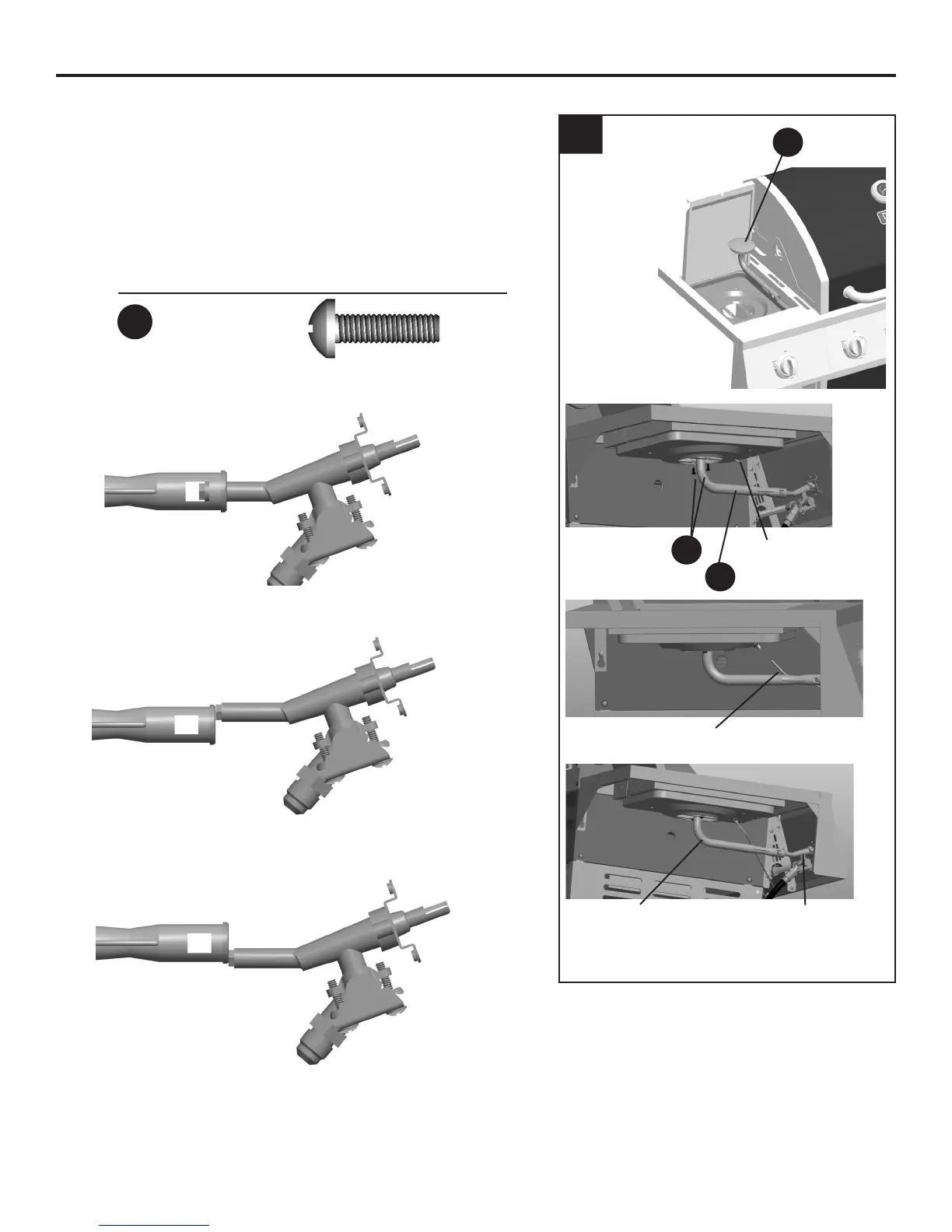

13. Secure side burner assembly (S) to left side
burner table assembly (T) using 2 screws
(DD). Ensure side burner orice placed into
the gas inlet tube of side burner. Install the
ignition wiring to the electrode assembly.
DD
S
S
Electrode Assembly
Side Burner Gas
Valve Assembly
Side Burner Gas
Inlet Tube
Side Burner Ignition Wire
Hardware Used
DD
M4x12 Screw
x 2
Correct
Wrong
Wrong
