7
ASSEMBLY INSTRUCTIONS

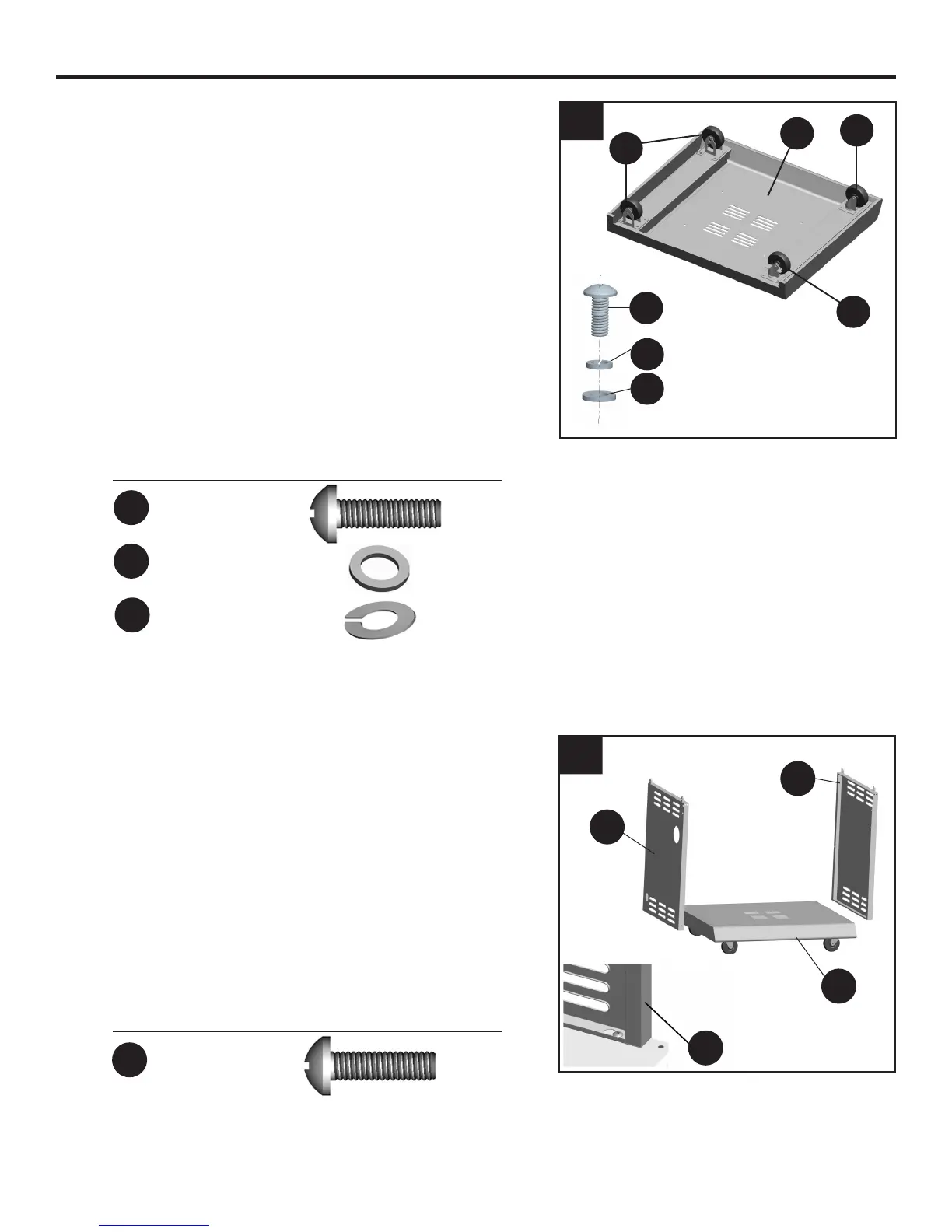

1. Assemble the casters, including 2 directional
casters (F1), 1 non-locking swivel caster (C),
1 locking swivel caster (D), onto bottom shelf
(A) with 4 M6 screw (AA), plain washer (BB)
and spring washer (CC) for each caster as
shown.
Hardware Used
BB
A
M6x12 Screw
Spring
Washer
x 16
x 16
CC
Plain
Washer
x 16
2. Insert 4 screws (AA) into holes in bottom shelf
(A), leaving 4-6mm clearance from screw head
to bottom shelf (A). Attached cart left side
panel (H) by placing the panel keyhole over
the screw heads (AA) on the left side of
bottom shelf (A), slide the cart left side panel
(H) so that the screw head is over the smaller
part of keyhole. Thread the screw (AA) down
snug but do not tighten at this step. Repeat
with cart right side panel (E).
Hardware Used
AA
M6x12 Screw
x 4
2
AA
CC
BB
D
C
AA
E
E
A
H
1
F1
