Aux input

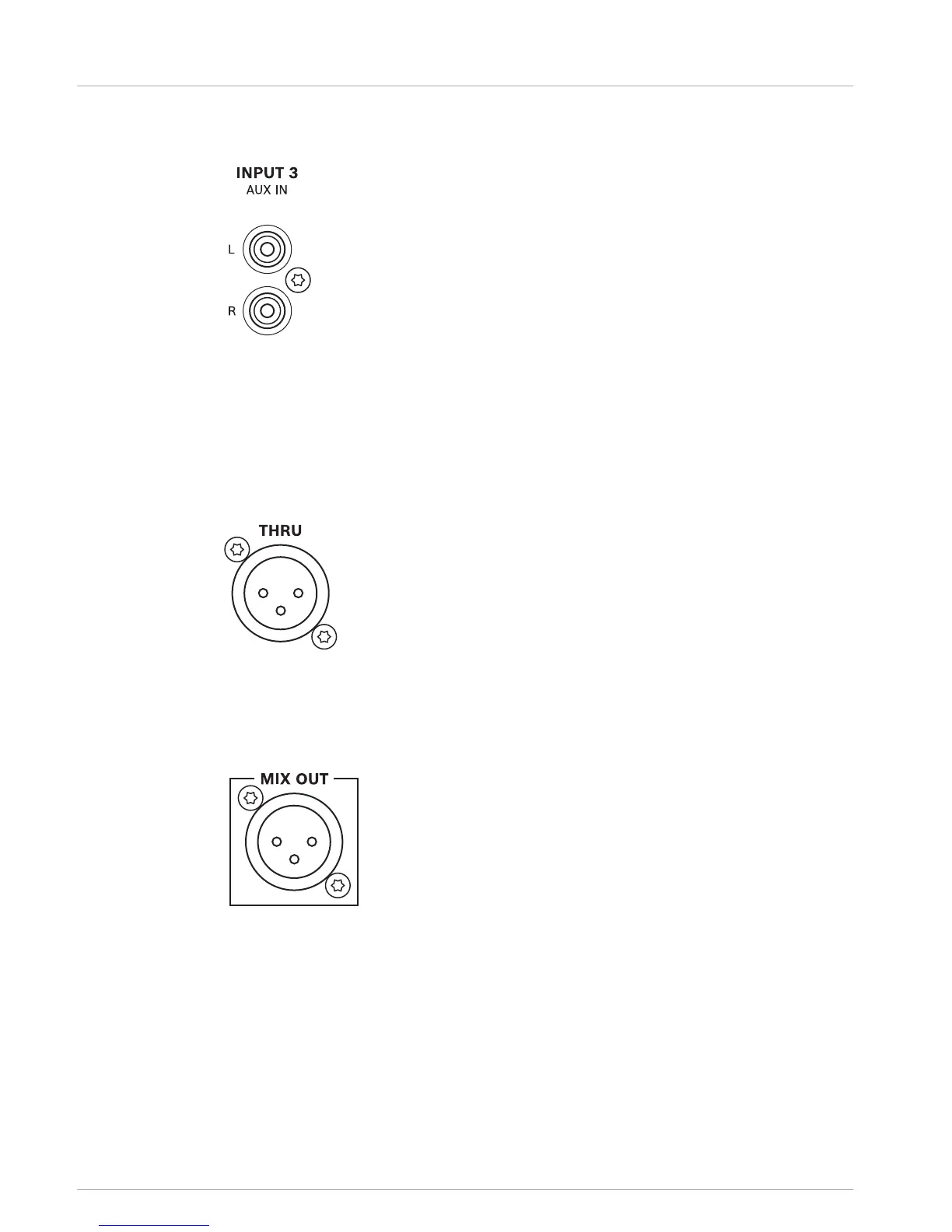

Stereo unbalanced RCA type INPUT 3 AUX IN for connecting sources such as CD players or
MP3 players. See menu item MIX OUT link in section Menu, page 12 how this input can be
used.
Audio outputs
Thru output
The THRU output socket is connected in parallel to INPUT 1, it is used for “carrying through”
the pre-fader input signal to additional powered loudspeaker or subwoofer.
Mix output
The post-fader audio signals of INPUT 1, INPUT 2 and INPUT 3 are mixed and passed to MIX
OUT. The ratio of the input signals changes when the level controls INPUT 1, 2 or 3 are
adjusted. This feature allows the loudspeaker to act as a basic three-channel mixer that can
send the mix to another loudspeaker via the MIX OUT socket.
This output is laid out in GND-SENSING technology, a special pin assignment of the output
socket, offering all advantages of the balanced signal transmission, but lets you also connect
monaural plugs without a problem.
5.2.2
5.3
5.3.1
5.3.2
10 en | Connection AXM 12A
18-Mar-14 | 02 | F01U290507 User manual Bosch Sicherheitssysteme GmbH

Dynacord AXM 12A Specifications

General

XLR out	2
AC (power) in	Yes
Audio (L/R) in	1
Frequency range	50 - 20000 Hz
Product color	Black
Rack mounting	No
Volume control	Rotary
Housing material	Plywood
RMS rated power	520 W
Woofer diameter (imperial)	12 \
Tweeter diameter (imperial)	1.75 \
Display type	LCD
Operating temperature (T-T)	0 - 40 °C
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Weight and Dimensions

Depth	484 mm
Width	414 mm
Height	339 mm
Weight	14900 g
Package weight	18400 g
