Dynacord AXM 12A User Manual

Connection

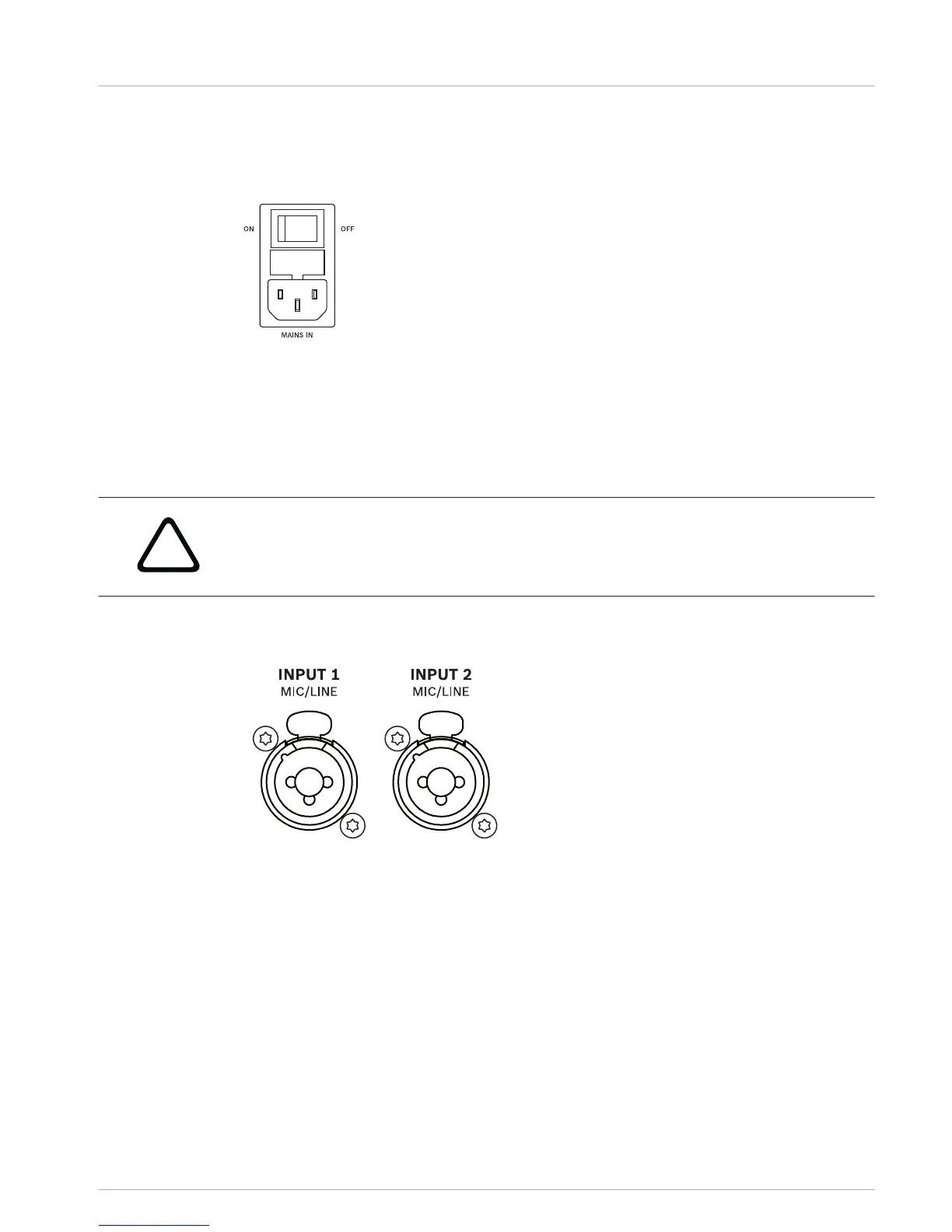

Mains input (MAINS IN)
The device receives its power supply via the MAINS IN socket. Only the provided power cord
may be used. Connect the device only to a mains network, which corresponds to the
requirements indicated on the type plate.
The power switch allows for switching the power ON or OFF. The LCD screen lights up when
the power is turned ON.
Audio inputs
!
Caution!
High sound level
Before making any connections or disconnections, make sure to set the corresponding level
controls in the fully counterclockwise position -∞.
Microphone/line input
Electronically balanced INPUT 1/2 MIC/LINE for the connection of a line level signal source
(such as mixer etc.) or a microphone. Phantom power can be enabled (see menu item
Phantom 1 or 2 in section Menu, page 12) if a condenser microphone is being used.
Establishing a connection is possible via TRS or XLR-type plugs. Whenever possible, balanced
signal feed is always preferable to guard against potential noise or HF-interference.
5
5.1
5.2
5.2.1
AXM 12A Connection | en 9
Bosch Sicherheitssysteme GmbH User manual 18-Mar-14 | 02 | F01U290507

Dynacord AXM 12A Specifications

General

XLR out	2
AC (power) in	Yes
Audio (L/R) in	1
Frequency range	50 - 20000 Hz
Product color	Black
Rack mounting	No
Volume control	Rotary
Housing material	Plywood
RMS rated power	520 W
Woofer diameter (imperial)	12 \
Tweeter diameter (imperial)	1.75 \
Display type	LCD
Operating temperature (T-T)	0 - 40 °C
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Weight and Dimensions

Depth	484 mm
Width	414 mm
Height	339 mm
Weight	14900 g
Package weight	18400 g
