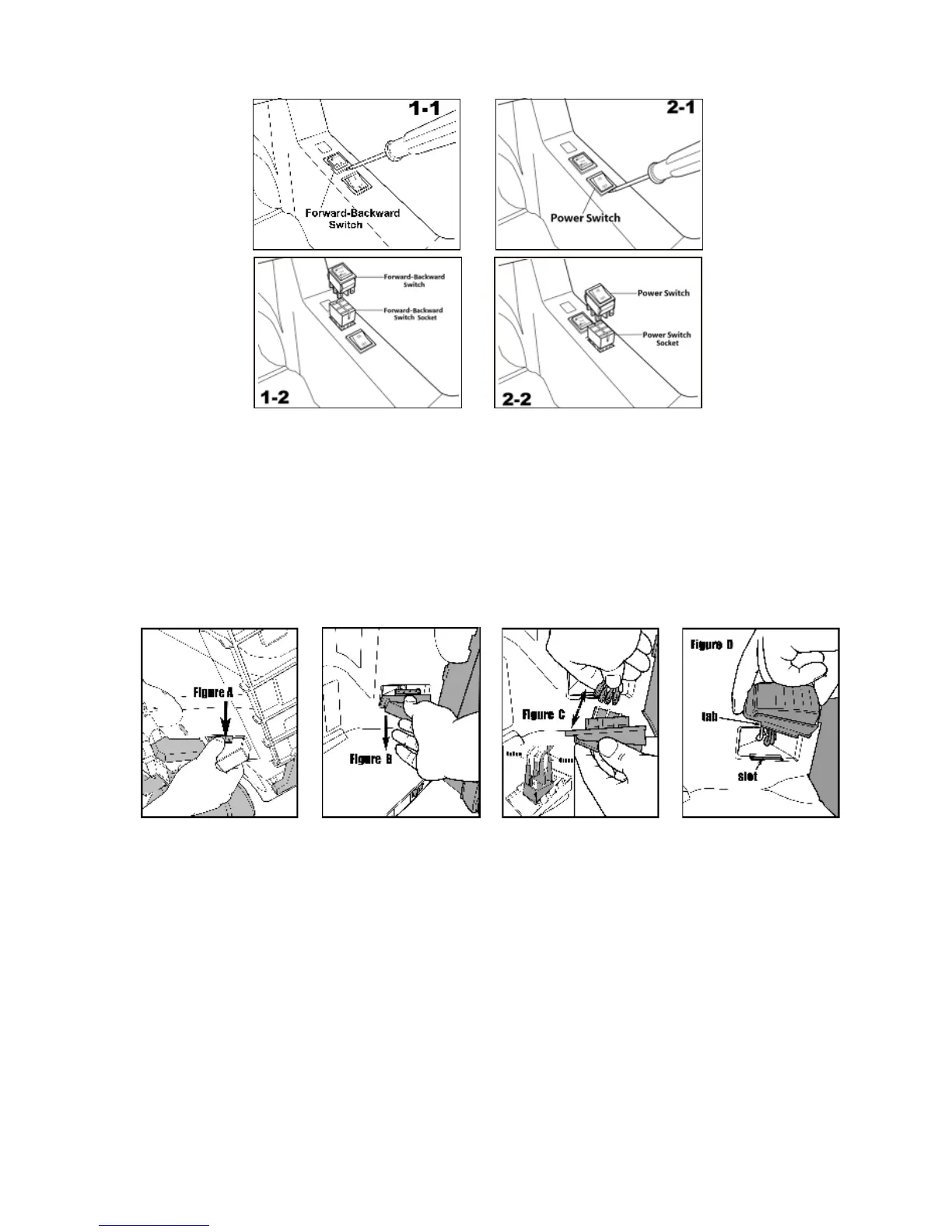

HOW TO REPLACE THE POWER SWITCH & FORWARD-BACKWARD SWITCH
1.
2.
3.
Remove the switch (or power switch) with a flat head
screwdriver (not included).
forward-backward
<see Figure 1-1 & 2-1>
<see Figure 1-2 & 2-2>
forward-backwardUnplug the main connector from the switch socket
(or power switch socket) as shown.
Plug in the new switches for replacement.
HOW TO REPLACE THE FOOT PEDAL
1.
2.
3.
4.
5.
18
Turn the vehicle body on its side.
On the bottom of the vehicle, you will find a compartment which contains the foot
pedal. Push the button on side of the compartment as shown, so as to release
the foot pedal. <see Figure A>
Pull the foot pedal off from the other side of the vehicle (the foot pedal side in the cab).
<see Figure B>
Disconnect the cables from the foot pedal and replace the old foot pedal with a
new one. <see Figure C>
Re-connect the new foot pedal to the cables (make sure that the color of the ca-
bles follo ws the ind ication in “Figure C” to ensure that the cables are connected
in the right position). Re-insert the foot pedal into the foot pedal compartment on
the deck of the vehicle (first make sure the tab on the foot pedal is being inserted
into the slot as shown in the diagram), then push the foot pedal all the way in.
<see Figure D>
