GBK51948 RHINO2
Installation Manual Issue 5

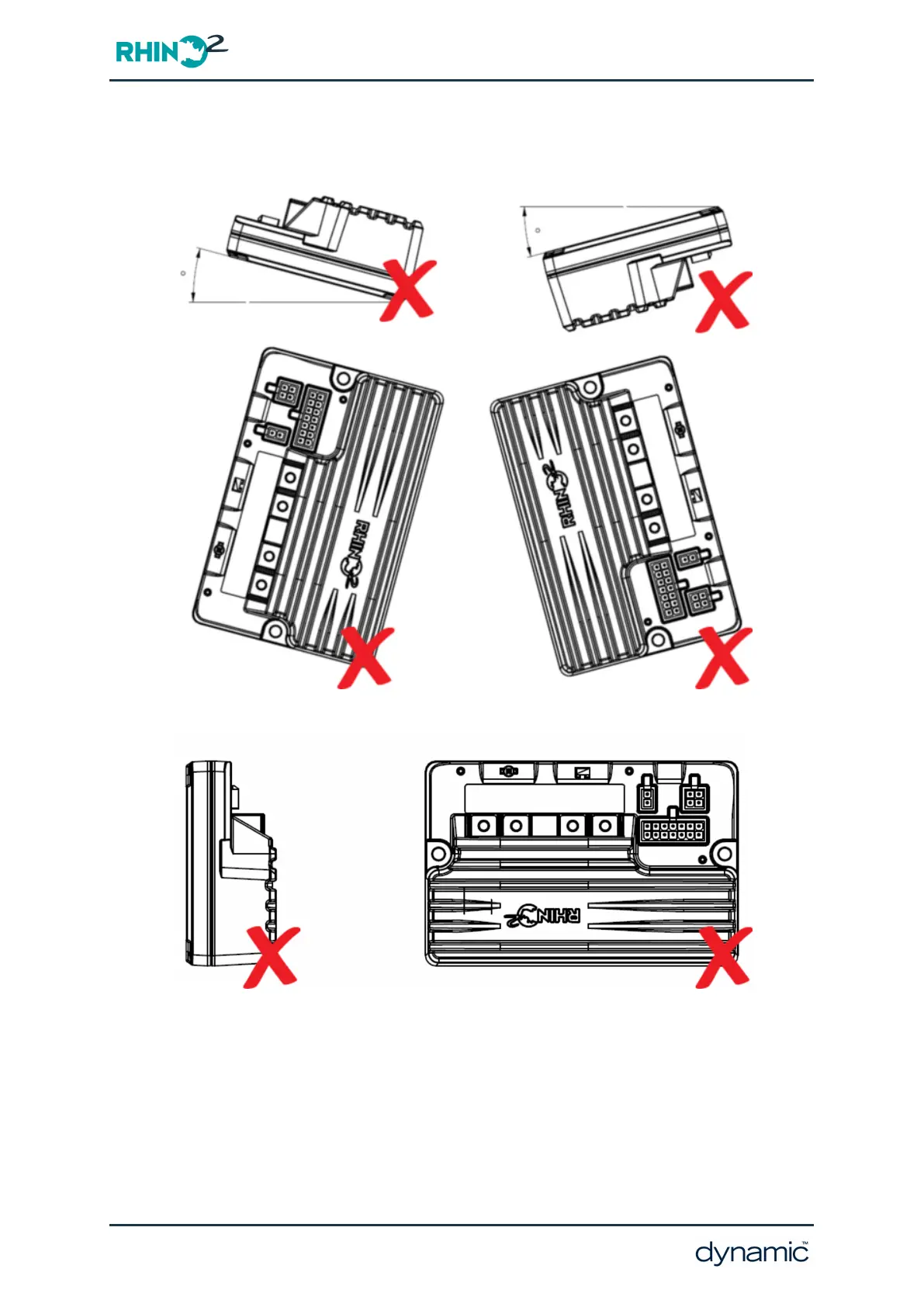

Mounting orientation to be avoided
The horizontally tilted mounting orientations and vertical (with connector side on the top)
orientation, which have chances of water and dirt accumulation, are not recommended.
Figure 9: Horizontally Tilted Mounting Orientations
Figure 10: Vertical (Connector side on the top) Mounting Orientation
Page 18 - Installation and testing
