Use the HHP to calibrate the unit instead of setting a value manually, see Throttle
calibration for details.

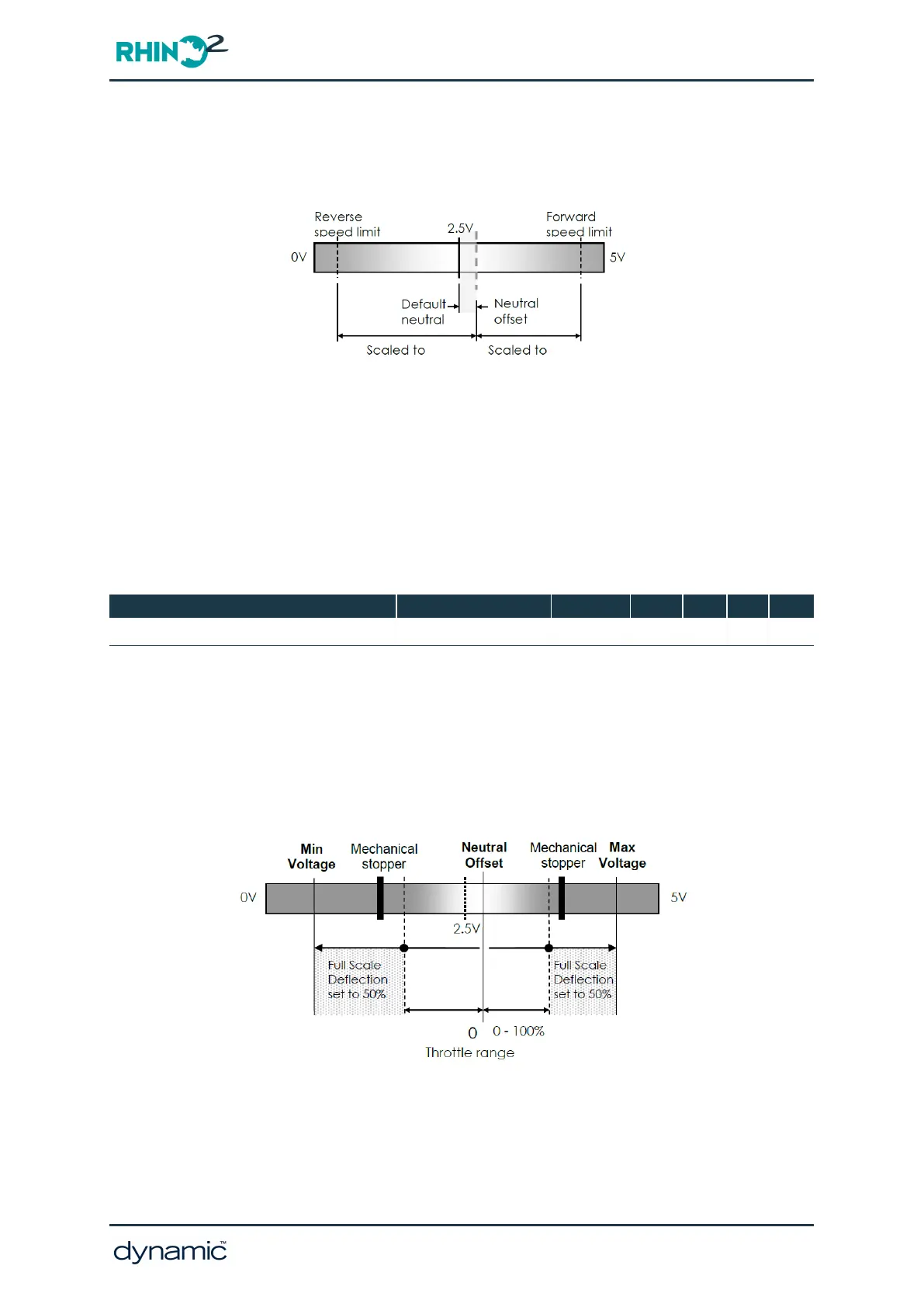

Figure 44: Throttle neutral offset
The default neutral value is dependent on the value of the Throttle Type parameter:
l
Wig-wag and Uni-polar both have the default neutral value at 2.5 V.
l
Single-ended has its default neutral value at 0 V + Maximum Throttle Voltage . In this
case, all negative values of Throttle Neutral Offset are ignored and all positive values
are multiplied by 2, which means that a Wizard setting of 0.5 V will produce an actual
neutral offset of 1.0 V.
6.5.2.4 Throttle Full Scale Deflection
Parameter Possible Values Default HHP Lite Std Adv
Throttle Full Scale Deflection 20 - 100 % 75 %
✓ ✓
Set the percentage of total throttle movement that will result in full speed.
The scale of this parameter ranges between Throttle Neutral Offset (0%) and Maximum
Throttle Voltage / Minimum Throttle Voltage (100%).
For example, if a mechanical stop restricts the throttle from moving more than 60% of its
full electrical travel, set this parameter to 50% to make sure that the scooter can still reach
maximum speed.
Figure 45: Example throttle full scale deflection
GBK51948 RHINO2
Installation Manual Issue 5
Programming - Page 77
