AVAILABLE ACCESSORIES
• Summing / Totalizing multiple LKAT systems
A dedicated external module is available for totalizing/ summing LKAT measurement signals.
This is typically used to provide a true ‘total’ current signal when multiple rectifiers ( with
individual LKAT systems ) are connected in parallel to provide a higher total current.
.

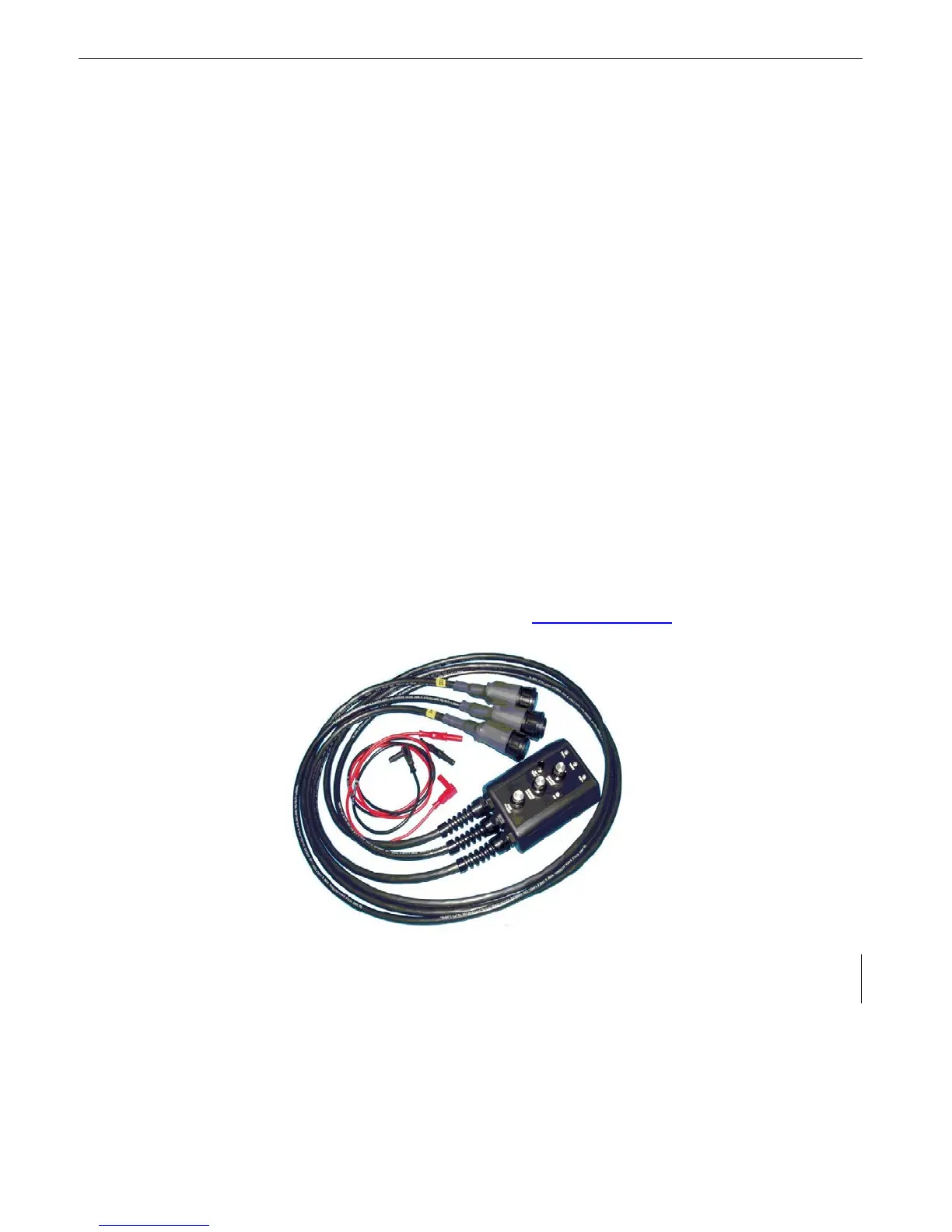

• LKAT Metering Unit Tester ( LKAT MUT )
The LKAT MUT is a portable tester used to verify the functionality of Metering Units for all
versions of the LKAT family of products.
Adapters included with the LKAT MUT allow the tester to be connected directly and check any
LKAT Metering Unit electronics.
The functions and parameters checked by the LKAT MUT include:
• Input / output sensitivity
• Trip point scaling
• Trip relay contacts
• Integrity of input / output harnesses and interconnections on Metering Unit
The tools / documentation required to use the LKAT Metering Unit Tester include :
• 4-1/2 digit DMM with 0.05% basic DC accuracy ( user provided )
• DMM Test probes ( user provided )
• Banana to banana cables ( 1black / 1 red )
• LKAT MUT Product Manual
More information on the LKAT MUT can be found at www.dynamp.com
or by contacting
DynAmp.
