DynAmp LKAT2 User Manual

Installation, Operation and Service Manual LKAT
2
+24V
© 2018 DynAmp, LLC Page 20
046404 E
Hall IC Array
Head Half A
Signal
Conditioning
& Scaling
Hall IC Array
Head Half B
Signal
Conditioning
& Scaling
SENSOR HEAD
+12Vdc
+15Vdc
POWER SUPPLY PCB
Summing
Amplifier
Gain Adjust
Isolation
Current
Loop
DC Bias
Metering Unit PCB Assy
DC Bias
V
I
Comparator
Status LEDs
Relay Contacts
DC Bias
Comparator
Status LEDs
Relay Contacts
PROTECTION
EXTENSIONS
PCB (OPTIONAL)
Note: This PCB is very
similar to the Main PCB.
Display Gain &
Zero Adj.
RMS to DC
Digital Display
Display PCB (Optional)
19.99

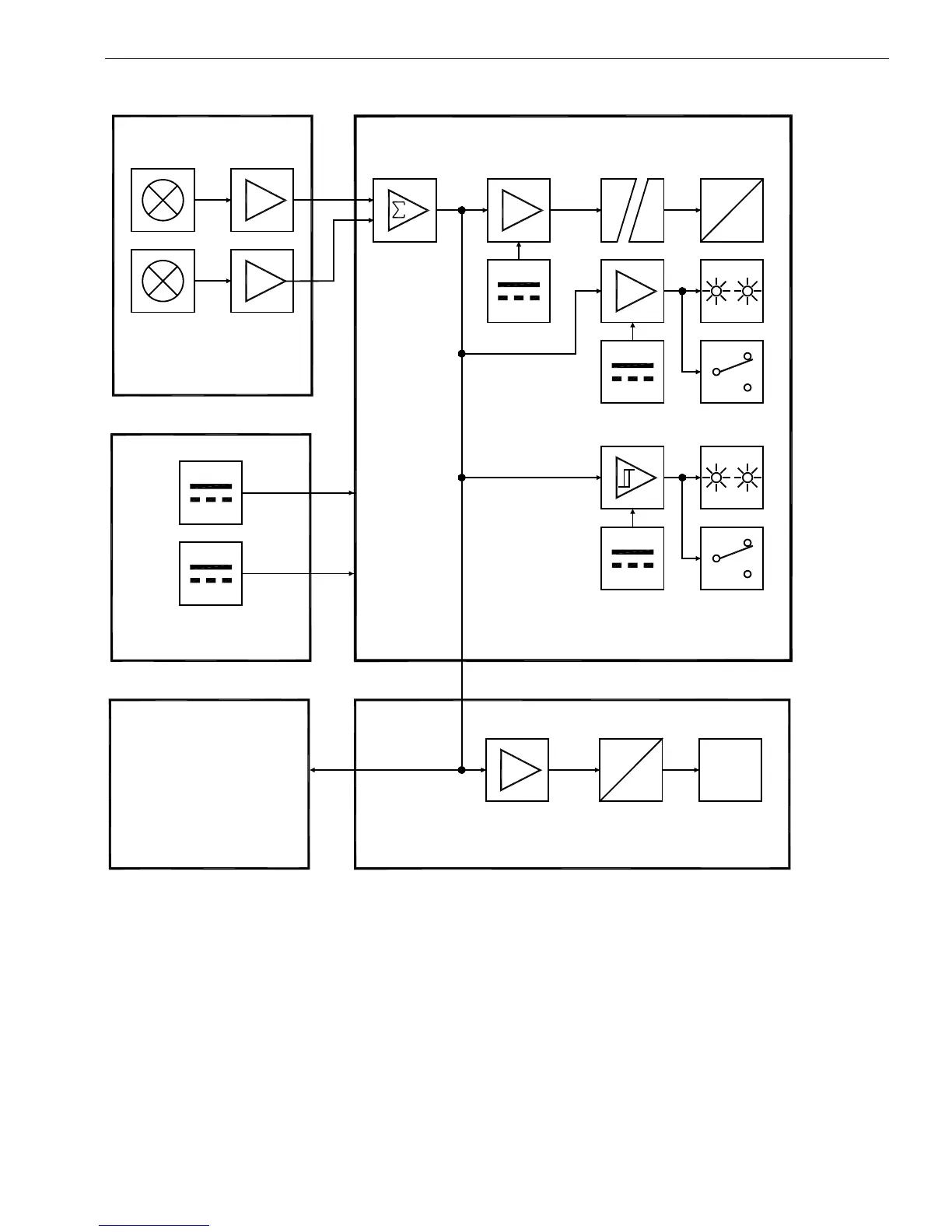

Figure 5.1
Block Diagram of the LKAT
2
System
5.3 SYSTEM FUNCTIONAL DESCRIPTION
The flux density associated with the primary current is sensed by arrays of Hall ICs in the
Measuring Head. The outputs of these devices are summed and filtered, then transmitted to
the Metering Unit where these signals are dc biased and scaled. The Accuracy Diagnostics
status LEDs and relay contacts are driven by a signal input that compares the various Hall
groups with voltage setpoints. When the Hall group signal exceeds the reference, the green
LED will go out and the red LED will illuminate. The relay coil will change state under the
same conditions. The Trip Setpoint LEDs and relay contacts operate in a similar manner.

DynAmp LKAT2 Specifications

General

Brand	DynAmp
Model	LKAT2
Category	Measuring Instruments
Language	English
