17.- TOT function (timer-out timer).
18.- HI-CUT function.
19.- EMG CALL (emergency call).
20.- SWR protection.
21.- Power supply voltage protection.
22.- Key-Lock function.
23.- Seven (7) color LCD display.
24.- Six (6) groups memory channel.
25.- CTCSS/DCS code (optional).
26.- DTMF function.
6
.
-
GETTING STARTED
:

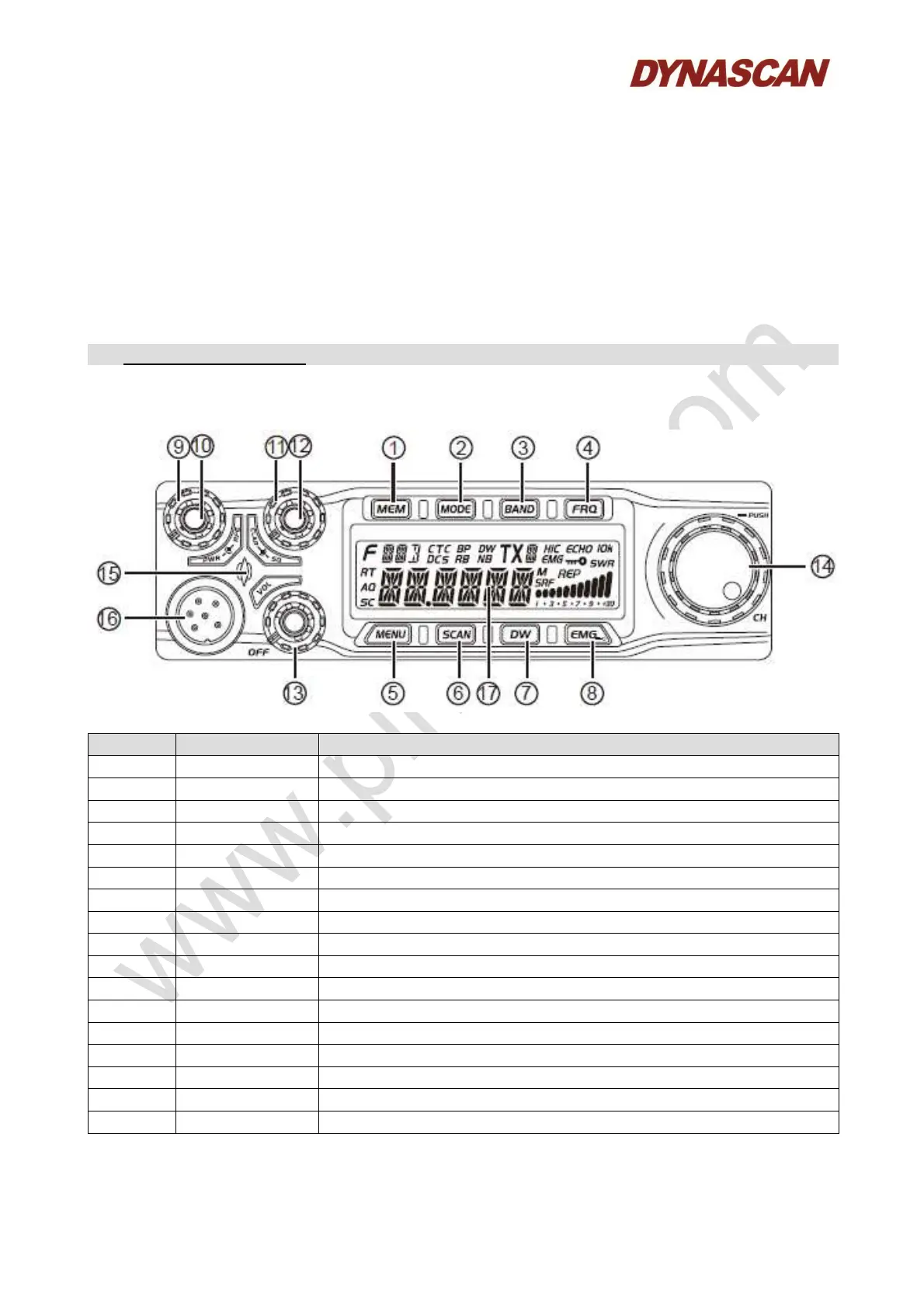

6.1.- FRONT PANEL:
No.
Key / knob
Function
1 MEM Use, store or delete memory channel.
2 MODE Switch mode FM, AM, USB, LSB, PA.
3 BAND Switch band (A/B/C/D/E/F/G/H/I).
4 FRQ Switch between channel mode and frequency mode.
5 MENU Function menu key.
6 SCAN Scan, scan add, scan delete.
7 DW Dual-watch scan, dual-watch setup.
8 EMG Emergency channel; keypad lock.
9 PWR RF power control.
10 RFG RF gain control.
11 SQ Squelch control.
12 CLAR SSB clarifier switch.
13 VOL/OFF Power On/Off and volume control
14 CH/PUSH Channel switch, push key.
15 TX/RX led indicator.
16 Microphone connector.
17 LCD display.
