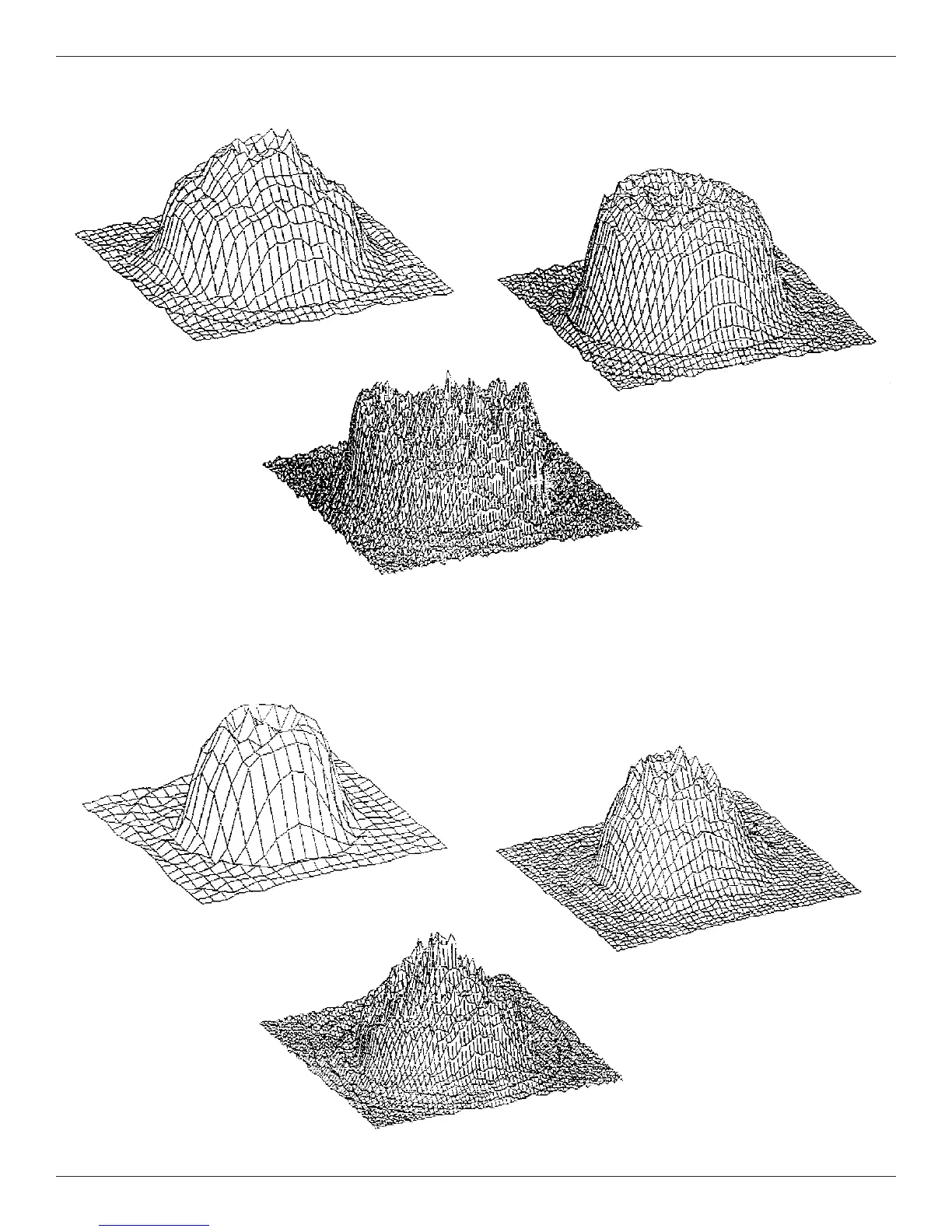

ULTRASOUND BEAM PROFILES

DYNATRON® 25 SERIES™ | OPERATOR’S MANUAL 62

5 cm

Head. Near Field

2 cm

Head. Near Field

1MHz

2 MHz

3 MHz

1MHz

2 MHz

3 MHz
